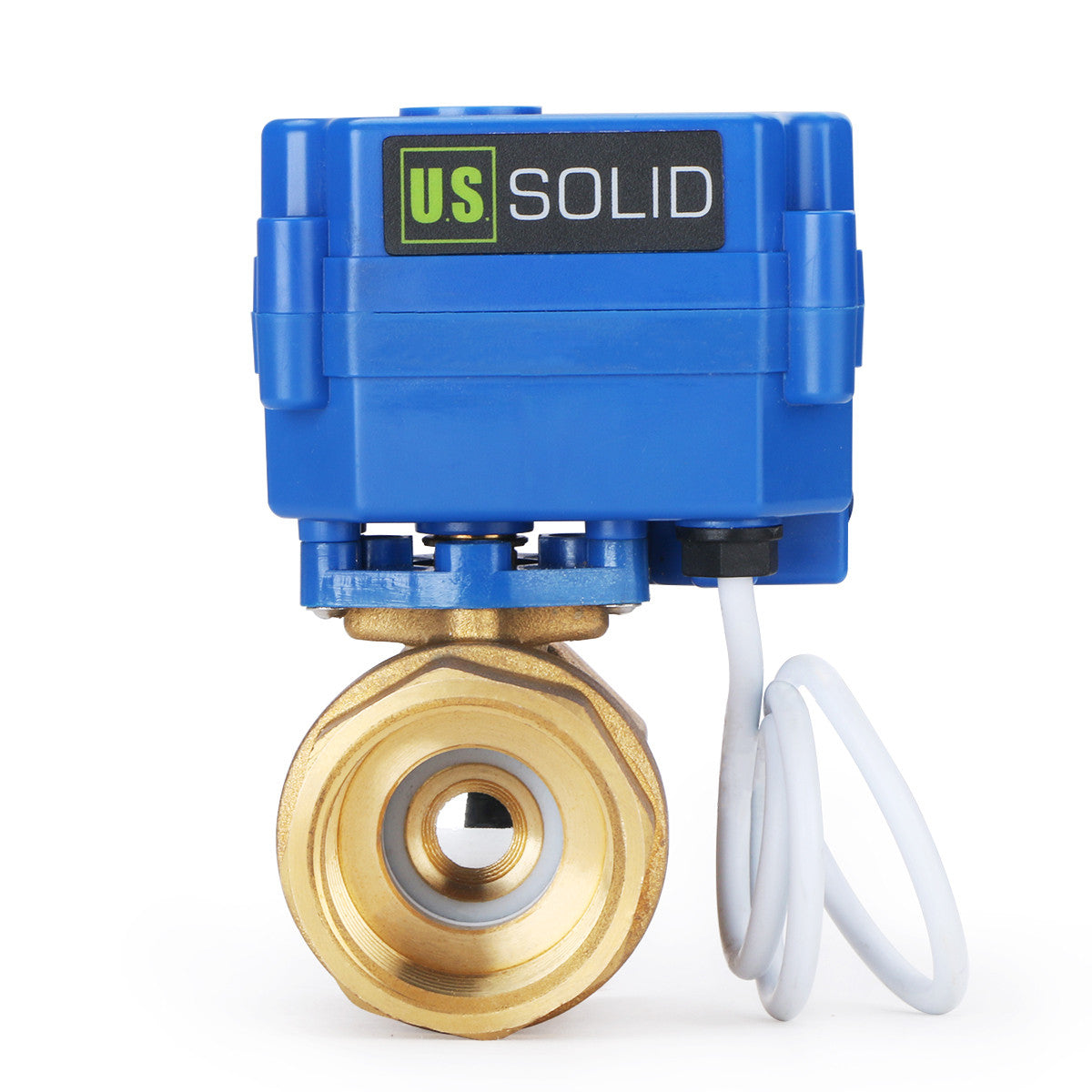

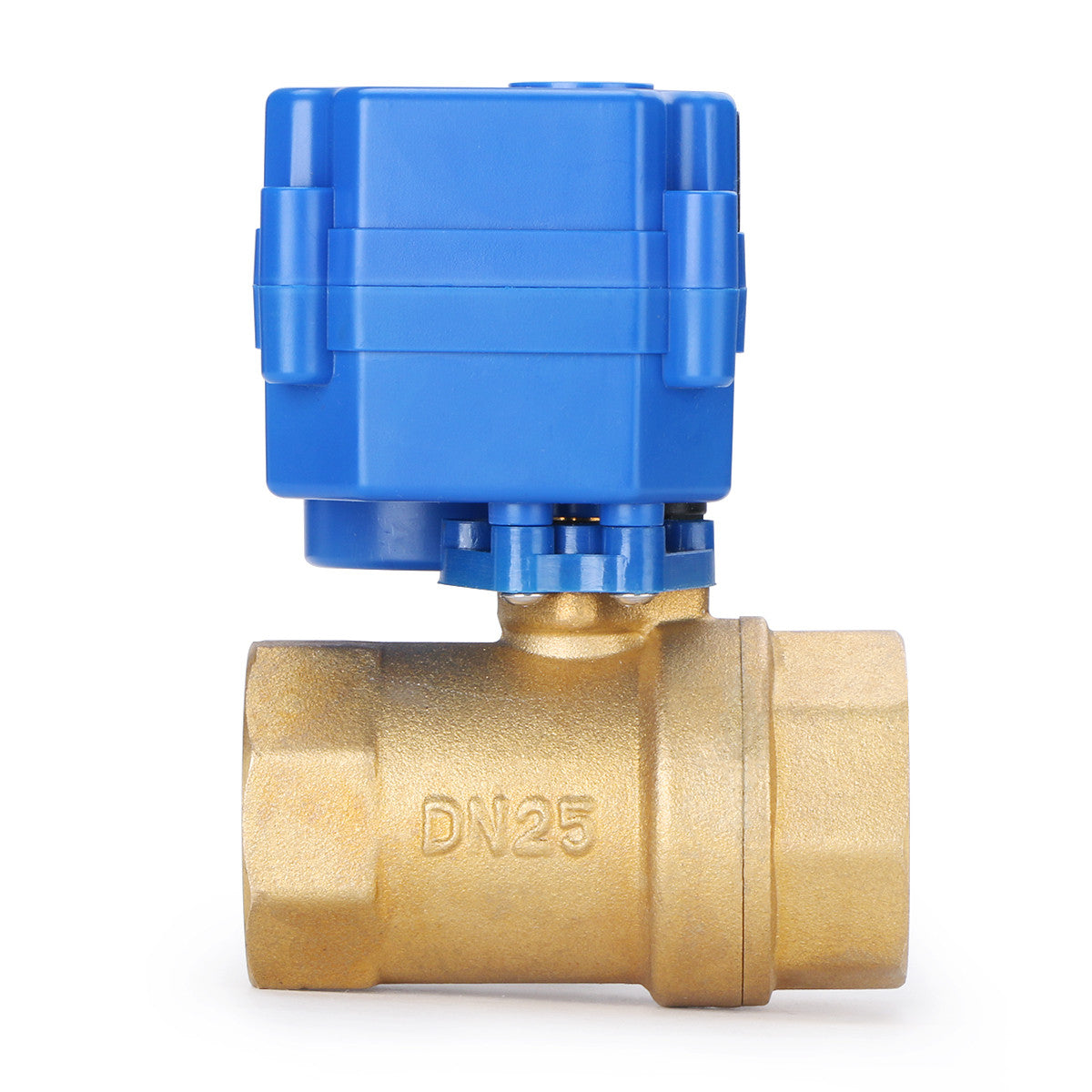

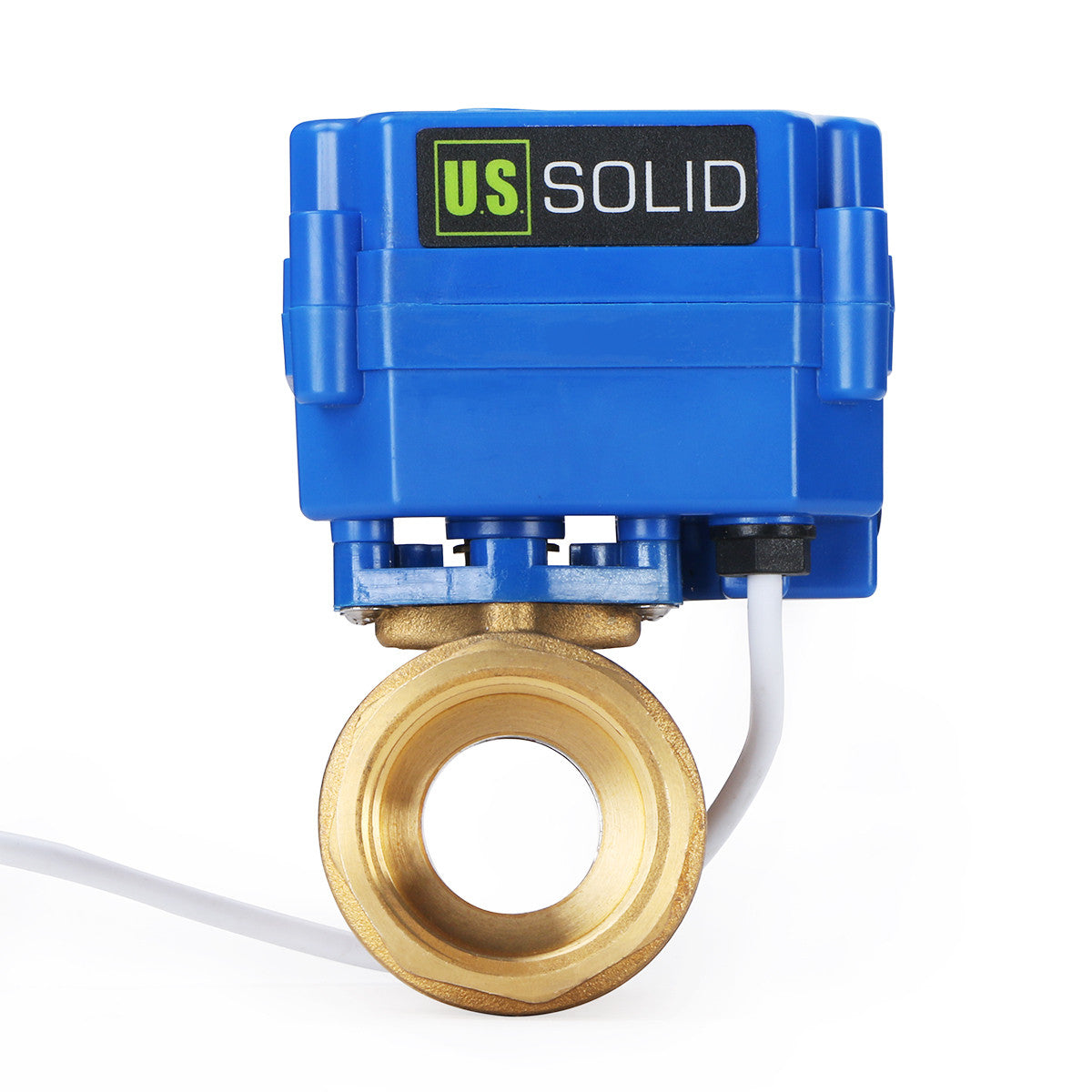

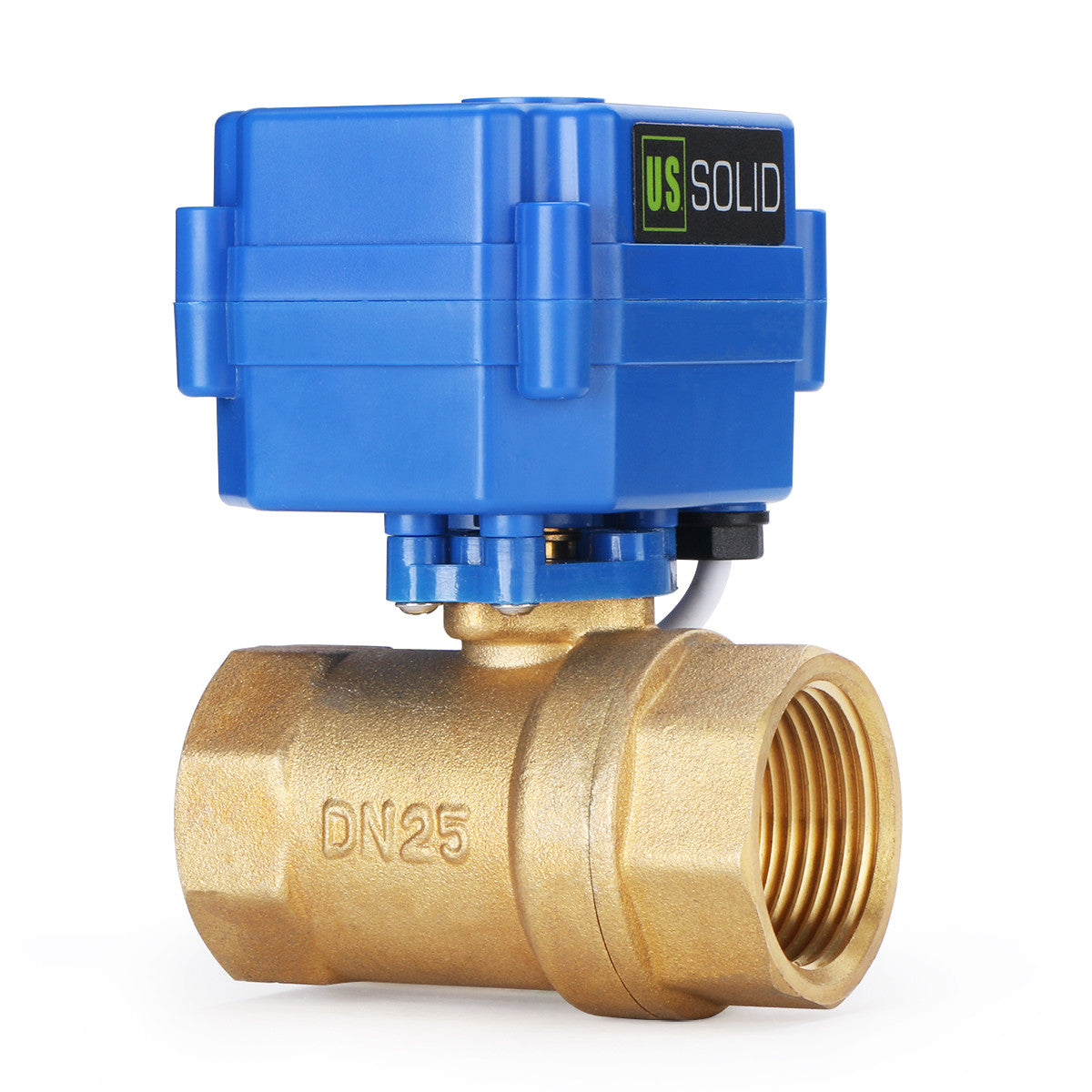

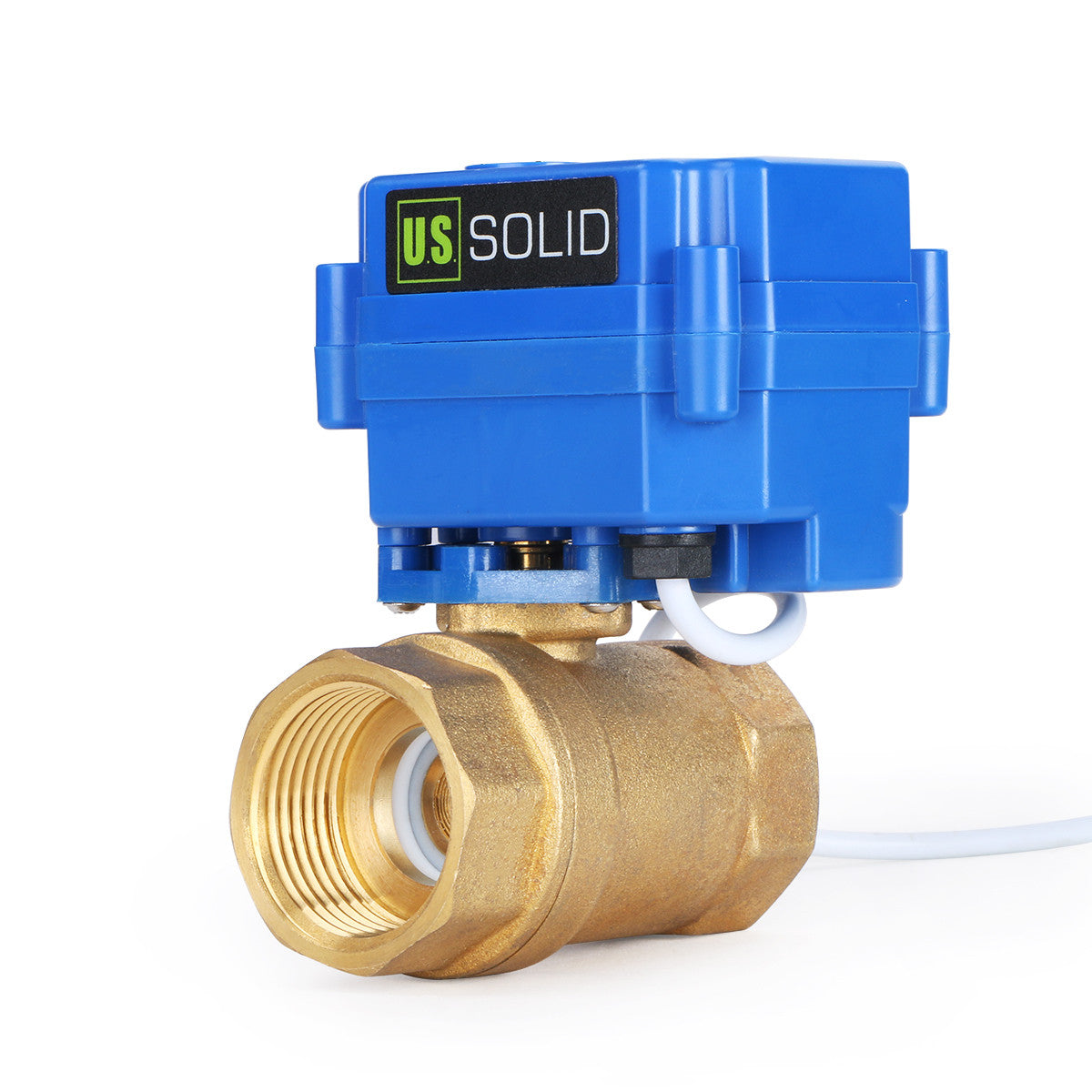

U.S. Solid 1" Brass Motorized Electric Ball Valve with Standard Port, 9-24V AC/DC, 2 Wire Auto Return, Normally Open
U.S. Solid 1" Brass Motorized Electric Ball Valve with Standard Port, 9-24V AC/DC, 2 Wire Auto Return, Normally Open
Motorized ball valves are a vital piece of equipment in numerous applications. This model opens and closes in 3-5 seconds, and remains in its new position while expending almost no energy. This is a key difference between motorized ball valves and many solenoid valves. Most solenoid valves are energized continuously when in a new position, while motorized ball valves expend energy only when changing from open to close, or vice versa.
The 2 wire auto return model is perfect for situations where the valve needs to be open in case of power loss. The valve can be energized to close, and left hooked up, with negligible nergy used once fully closed. To open, simply shutoff power to the valve. This valve is convenient because it can be operated with a simple on off switch. When on, it will remain closed, when turned off (or power is lost for some other reason) the valve automatically opens.
Specifications
Model: USS-MSV00018
Valve Material : Brass
Ball Seat : PTFE
Seal : EPDM
Operating Time : 3-5 Seconds
Working Voltage : 9-24V AC/DC
Max Power : 5 W
Max Torque : 2 N m
Max Pressure : 1.0 Mpa
Temperatur Range for Flow Medium : 0°C to 90°C
Ambient Temperature Range : -10°C to 40°C
Enclosure Rating : IP65
Life Expectancy : 80,000 to 100,000 Cycles
Thread Type : G
Wiring Type : 2 Wire Auto Return
