U.S. Solid

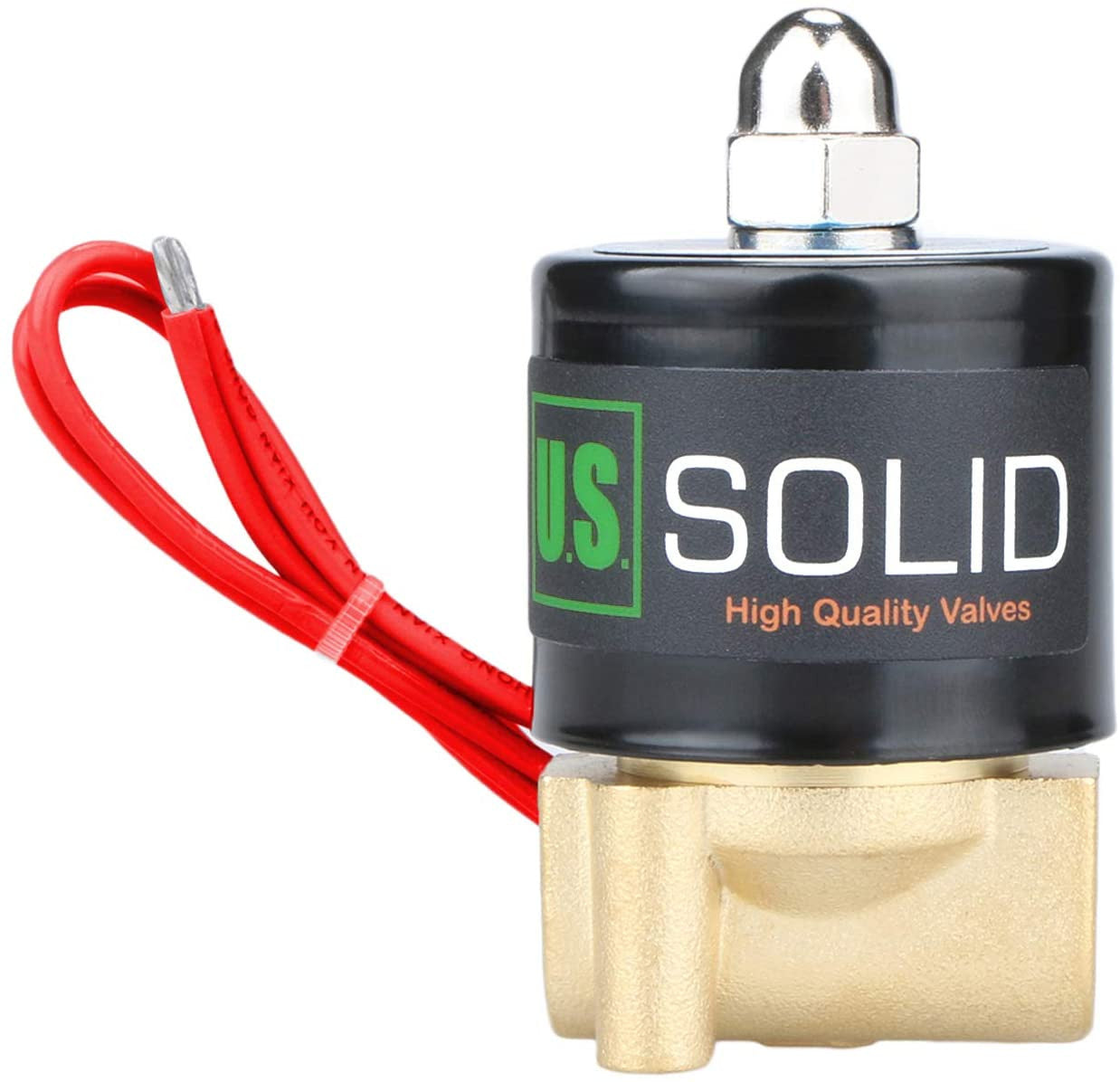

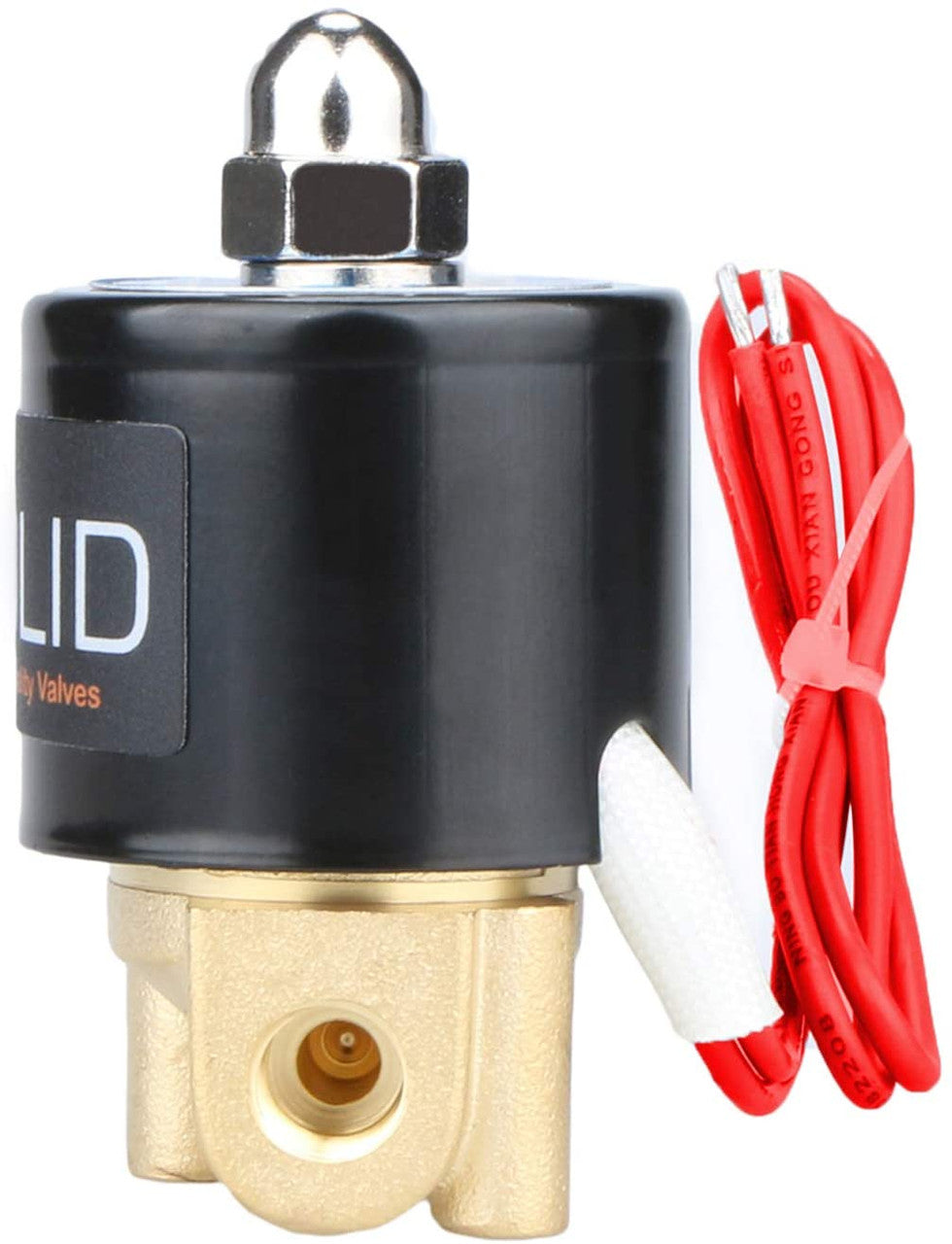

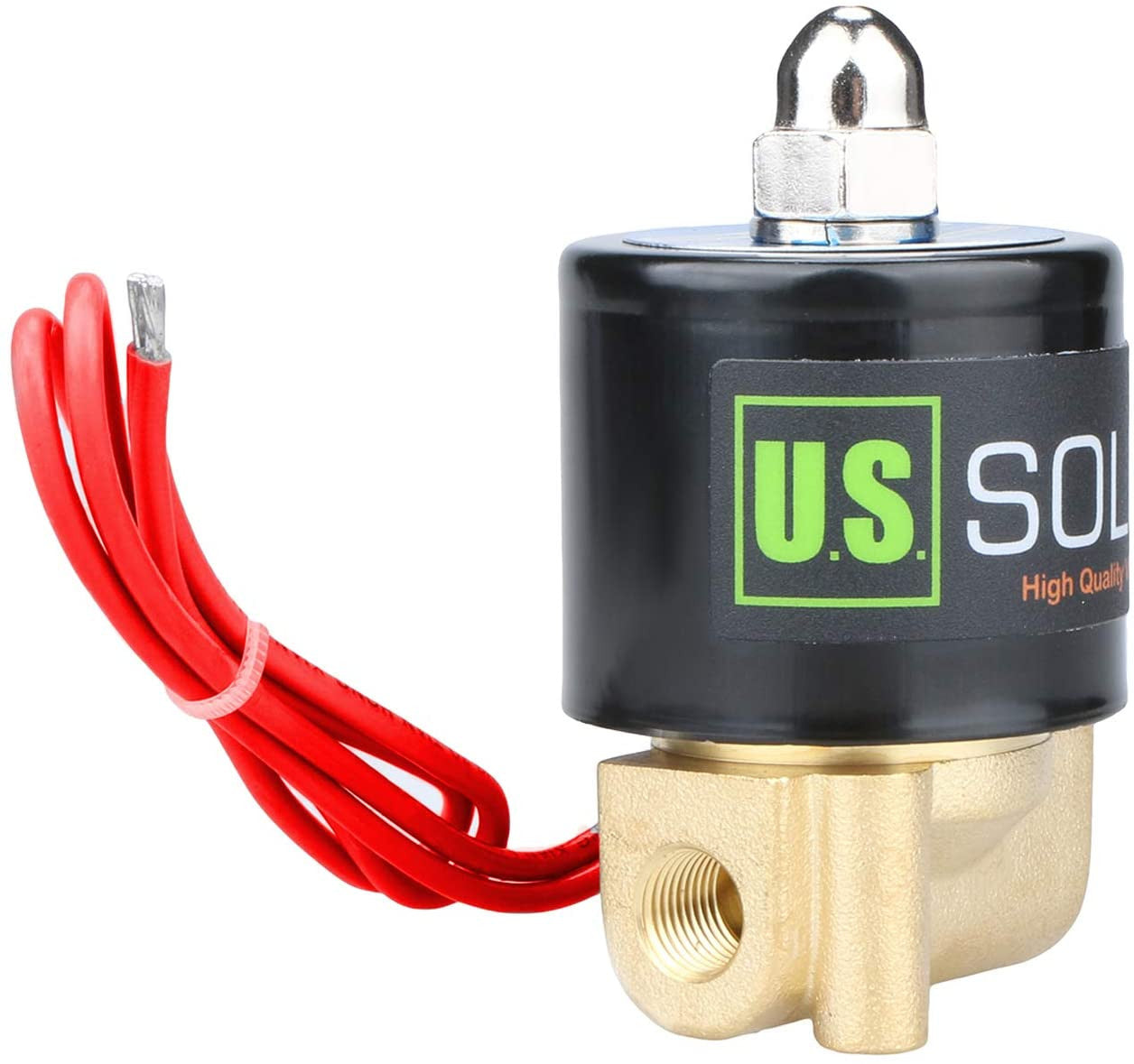

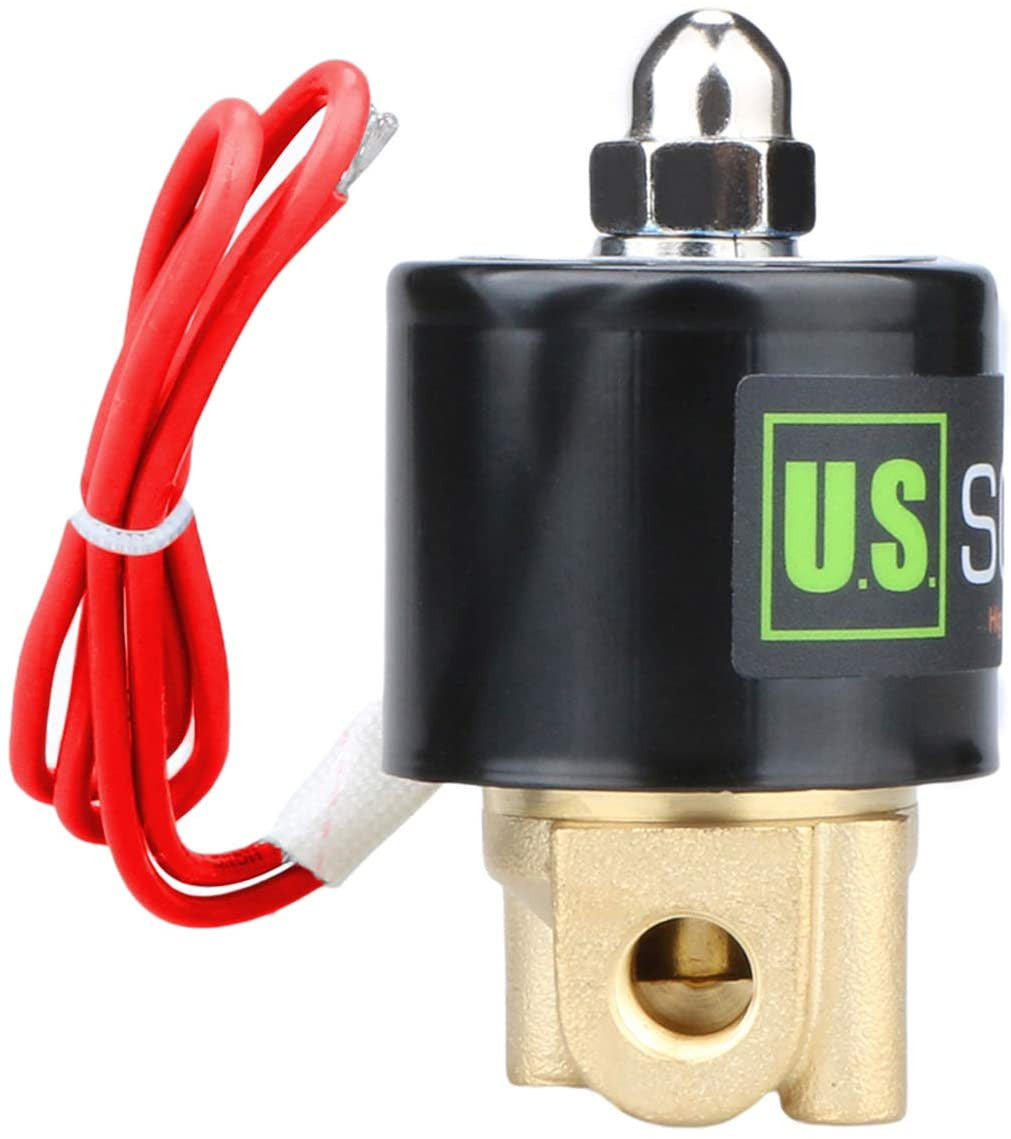

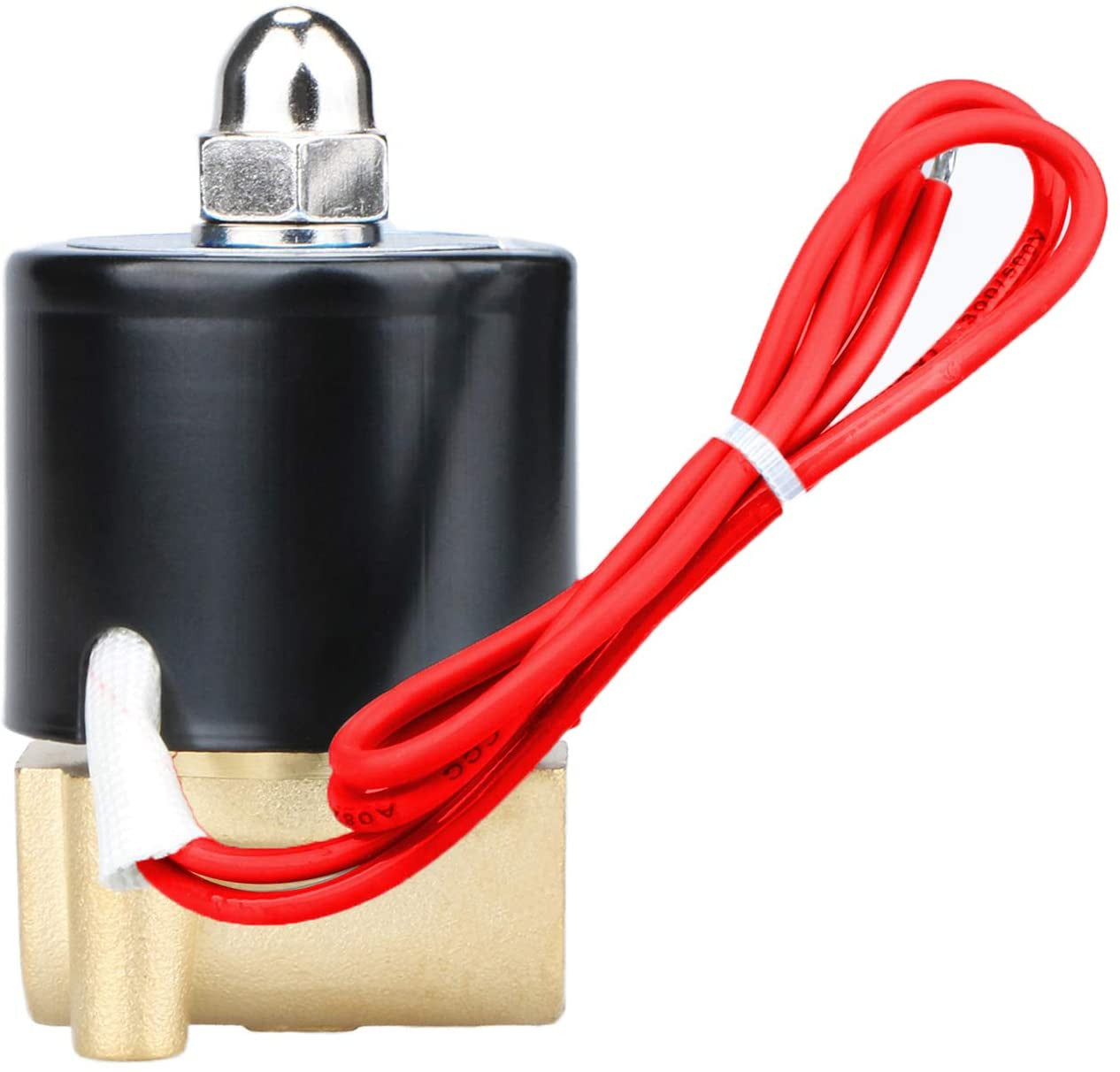

U.S. Solid normally closed (N/C) electric solenoid valve is constructed with a durable brass body, 1/8" female threaded (G) connections, and strong VITON gasket.
The solenoid valves have a rating of IP65, which means they can withstand spray from water. However, if permanently installed outdoors, it is recommended that you enclose the valves in some protective housing; not for use underwater. Suitable for use with hot or cold water, natural gas, air, very low viscosity fluids (< 20 cst) and gasoline or other petroleum based liquids. Customers chose this general purpose valve for supplemental gas tanks, sprinkler systems, and more. This solenoid valve is not to be used continuously for more than 8 hours. It can result in the valve overheating.
Body Material: Brass
Rated voltage: AC 220 V, ± 10%
Current: 0.07 A
Power rating: 15.4 VA
Operation Type: Direct Lift Valve
Operation Mode: Normally Closed
Gasket / Diaphragm / Seal: VITON
Minimum operational temperature: 14 degrees Fahrenheit (-10 degrees Celsius)
Maximum operational temperature: 248 degrees Fahrenheit (120 degrees Celsius)
Suitable Media: Air, water, oil, natural gas, diesel fuel, kerosene etc.
