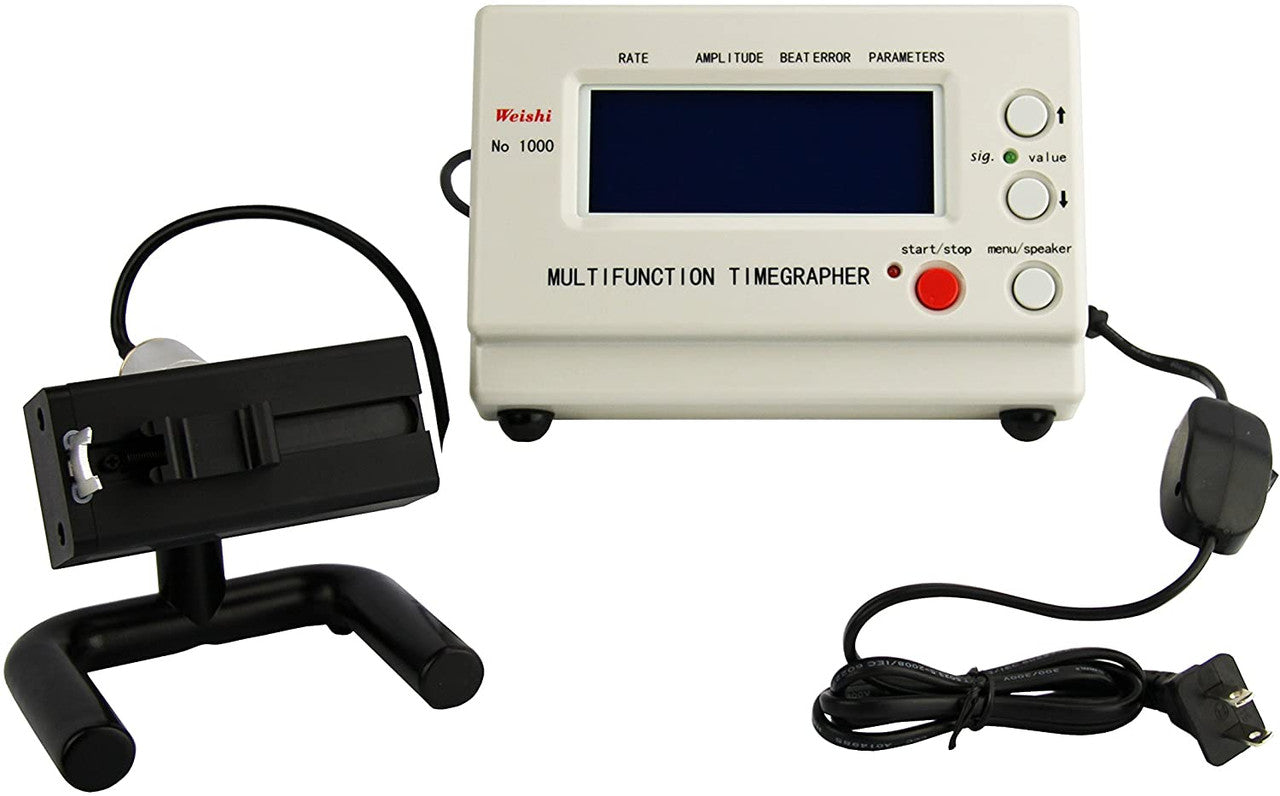

Weishi Timegrapher NO.1000 Watch Timing Machine Multifunction Tester Repair Tools (UK Plug and EU Plug)

Features

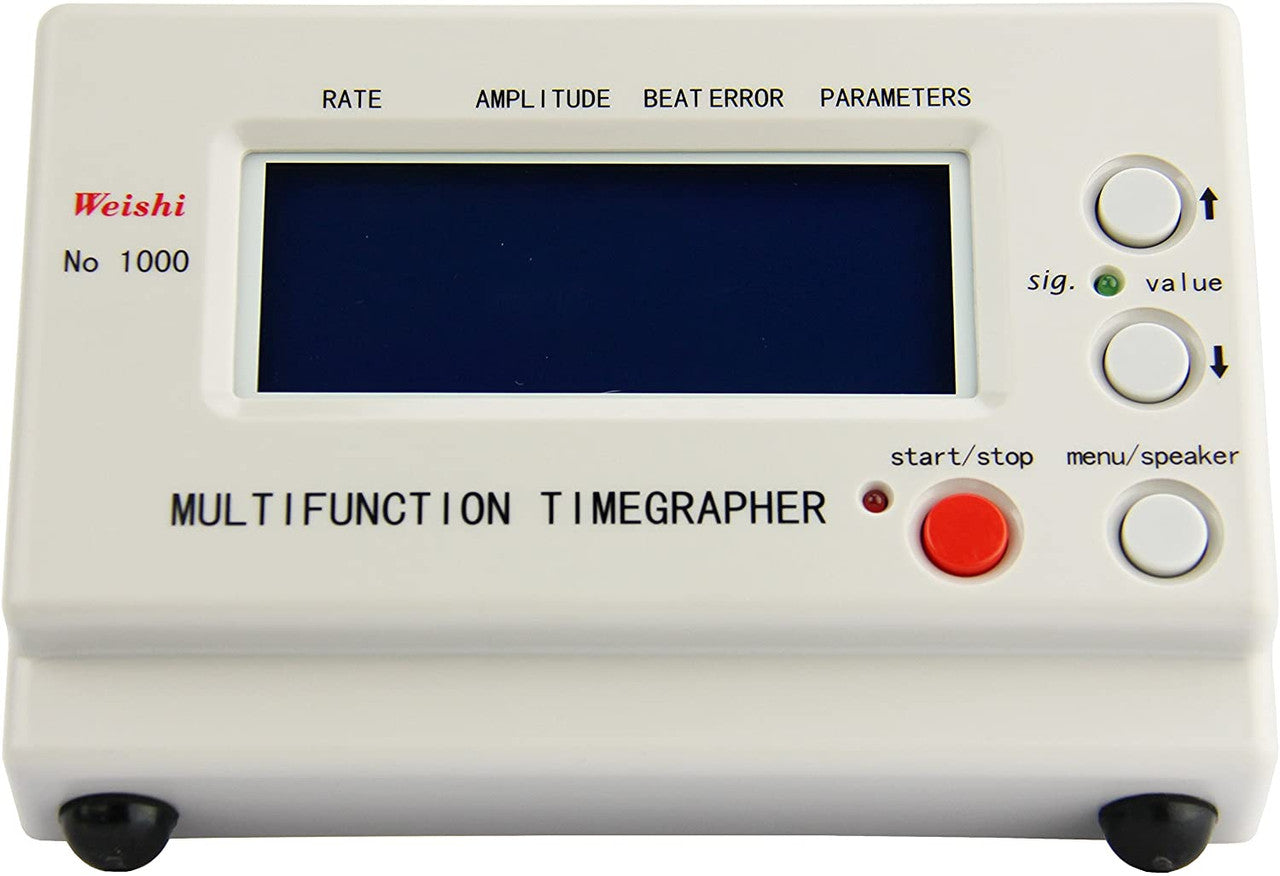

1. LCD screen.

2. Automatically adjust optimal signal level during testing.

3. Automatically calculate the rate, amplitude, beat error, and display them by data in real time.

4. The sampling period can selected by 2 s,4 s,6 s,8 s,12 s,20 s,30 s,60 s, and the average of corresponding period will be regard as the precise value of the watch.

5. Six kinds of testing position can be adjusted, and the simulation sound can be play in the speaker or mute.

6. This timing machine will automatically calculate in real time for the following:

-beat rate

-Amplitude

-beat error

-beat number

7. Automatic selection are available for the most common beat: 12000, 14400, 18000, 19800, 21600, 25200, 28800, 36000, 43200

8. Manual selection are available for the following beat: 3600, 6000, 7200, 7380, 7440, 7800, 9000, 9100, 10800, 11880, 12000, 12342, 12480, 12600, 13320, 13440, 13500, 14000, 14040, 14160, 14200, 14280, 14400, 14520, 14580, 14760, 14850, 15000, 15360, 15600, 16200, 16320, 16800, 17196, 17258, 17280, 17786, 17897, 18000, 18049, 18514, 19332, 19440, 19800, 20160, 20222, 20944, 21000, 21031, 21306, 21600, 25200, 28800, 32400, 36000, 43200

Parameters

Model: MTG-1000

Range: ± 999 s/d

Precision: ± 1 s/d

Amplitude: Resolution: 1°; Range: 100°- 360°

Frequency Error: Resolution: 0.1 ms; Range: 0 - 9.9 ms

Measure Positions: 1 to 6 points

Line Length: 196 points

Curve Type: Level to extend

Time Display: No

Signal Conditioning: No

Supply Voltage: 90 - 220 V, two-wire

Display Dimensions: 98 * 34 mm^2

Color Graphic: Blue

Printer Connection: No

Dimensions: 23 * 20.5 * 19.5 cm^3

Weight: 1.7 kg
