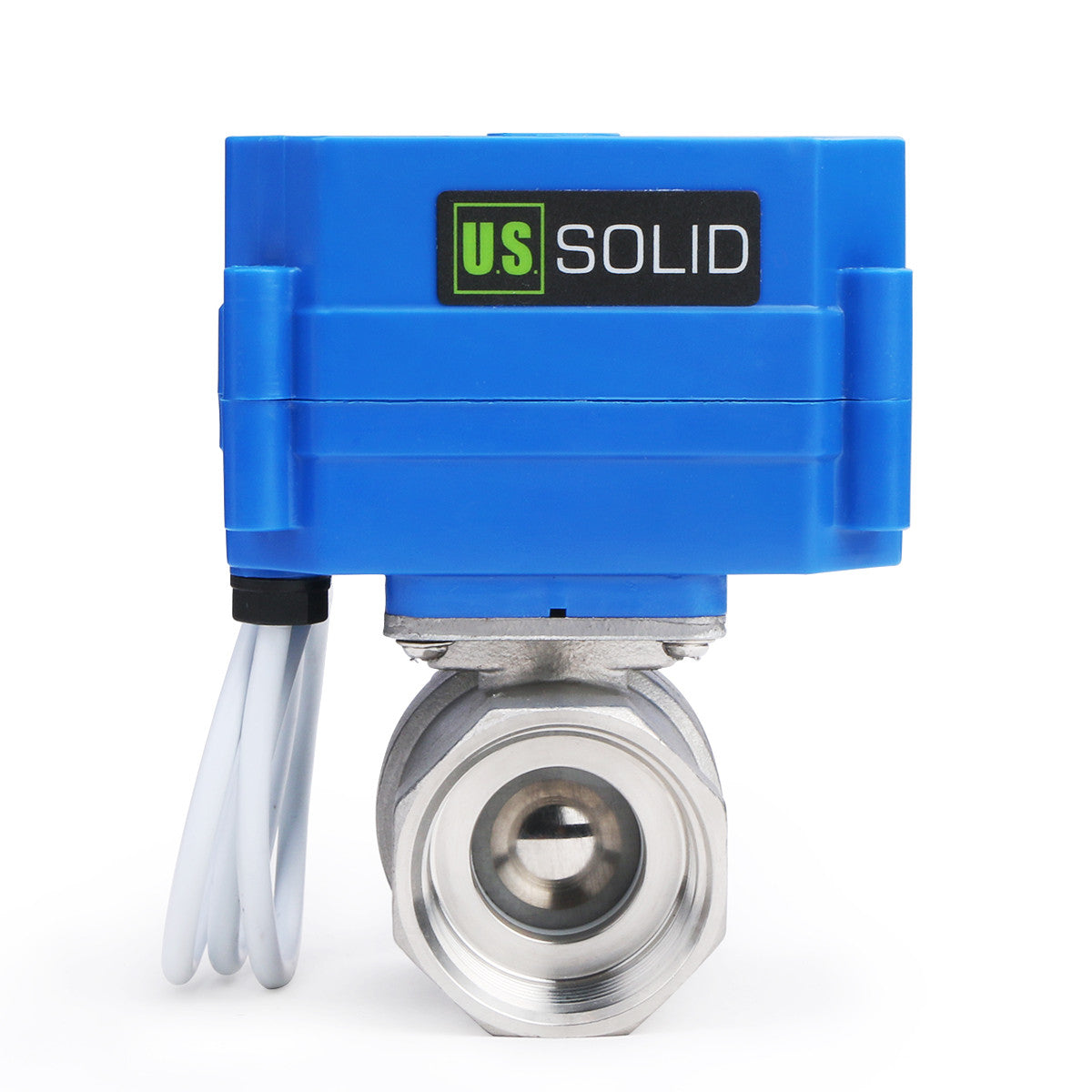

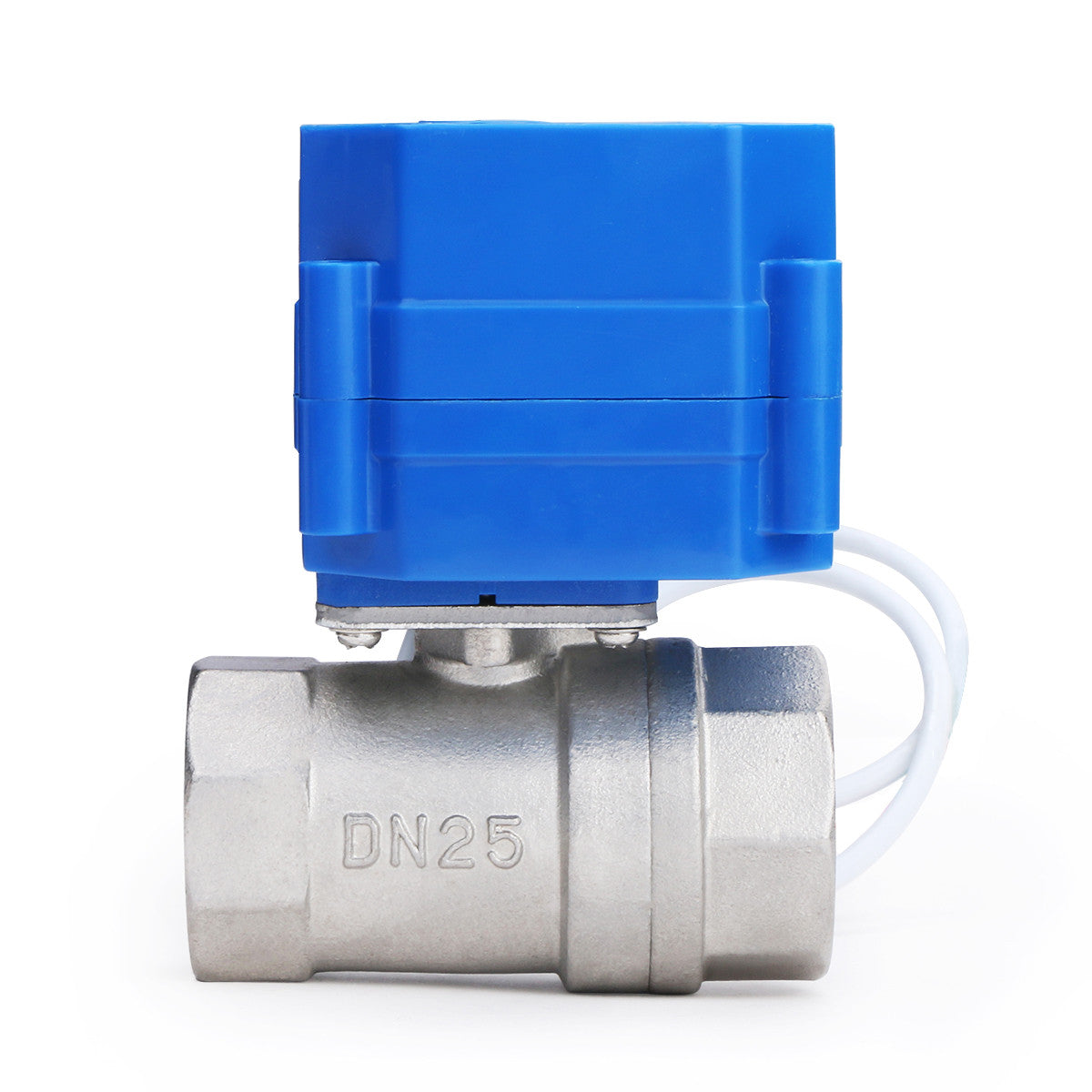

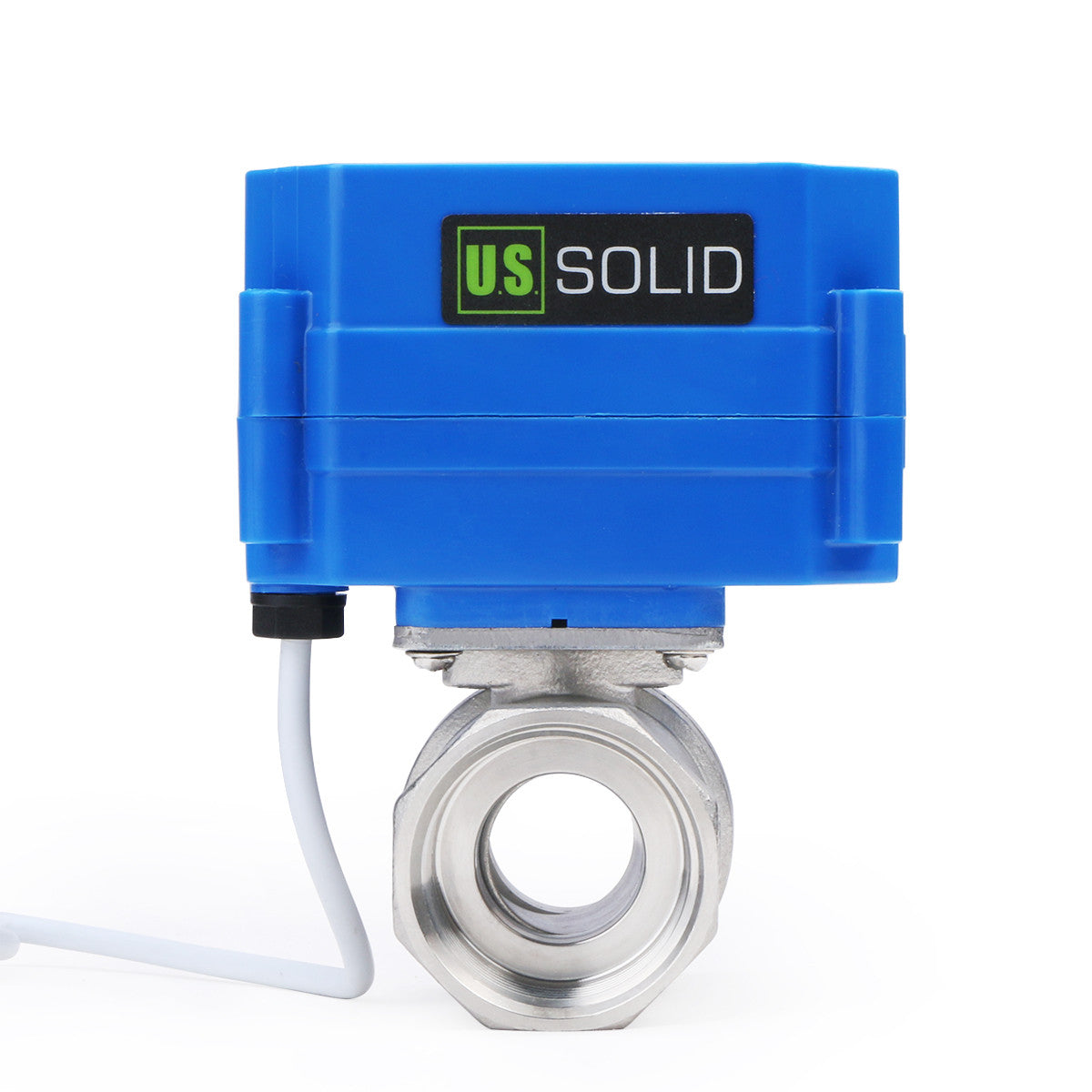

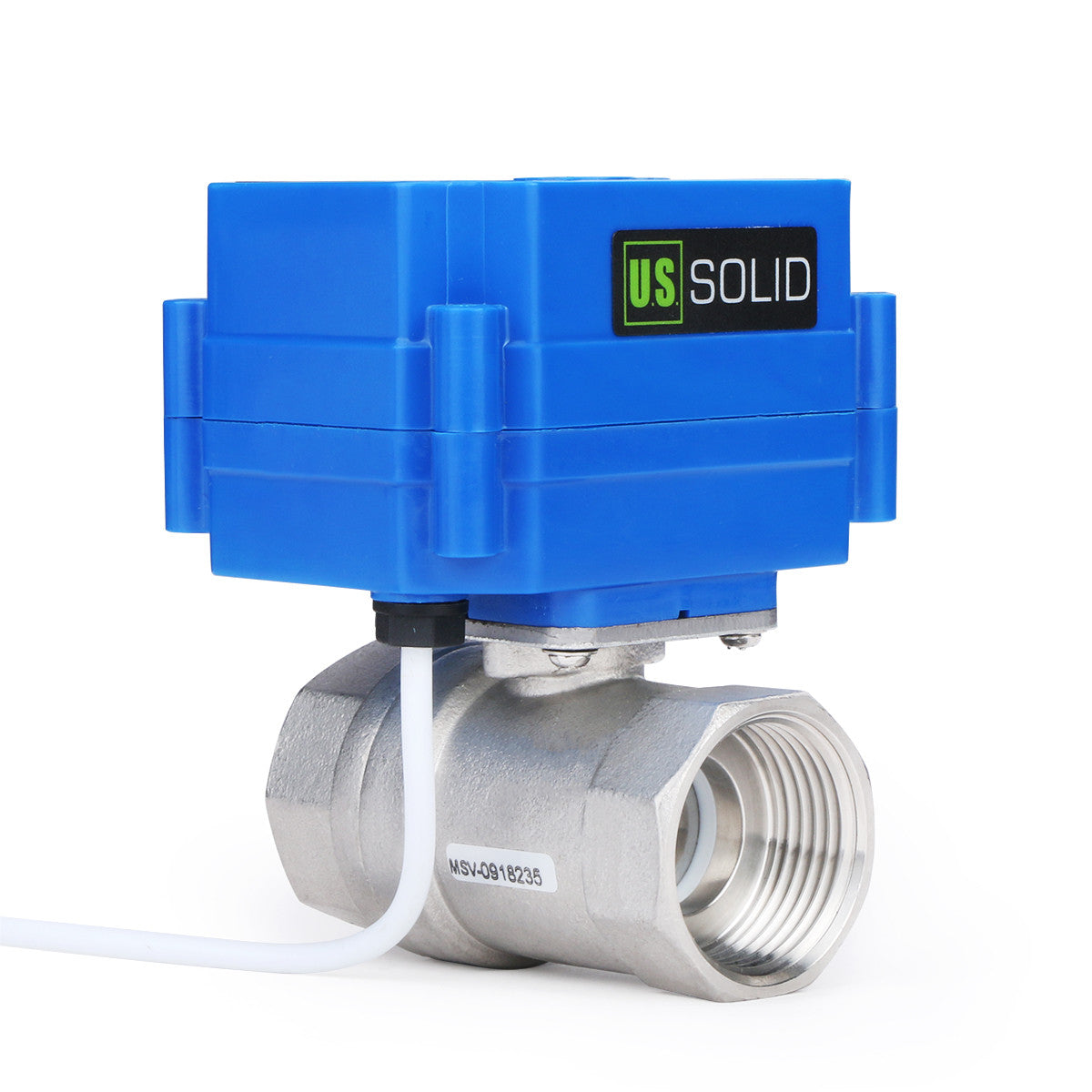

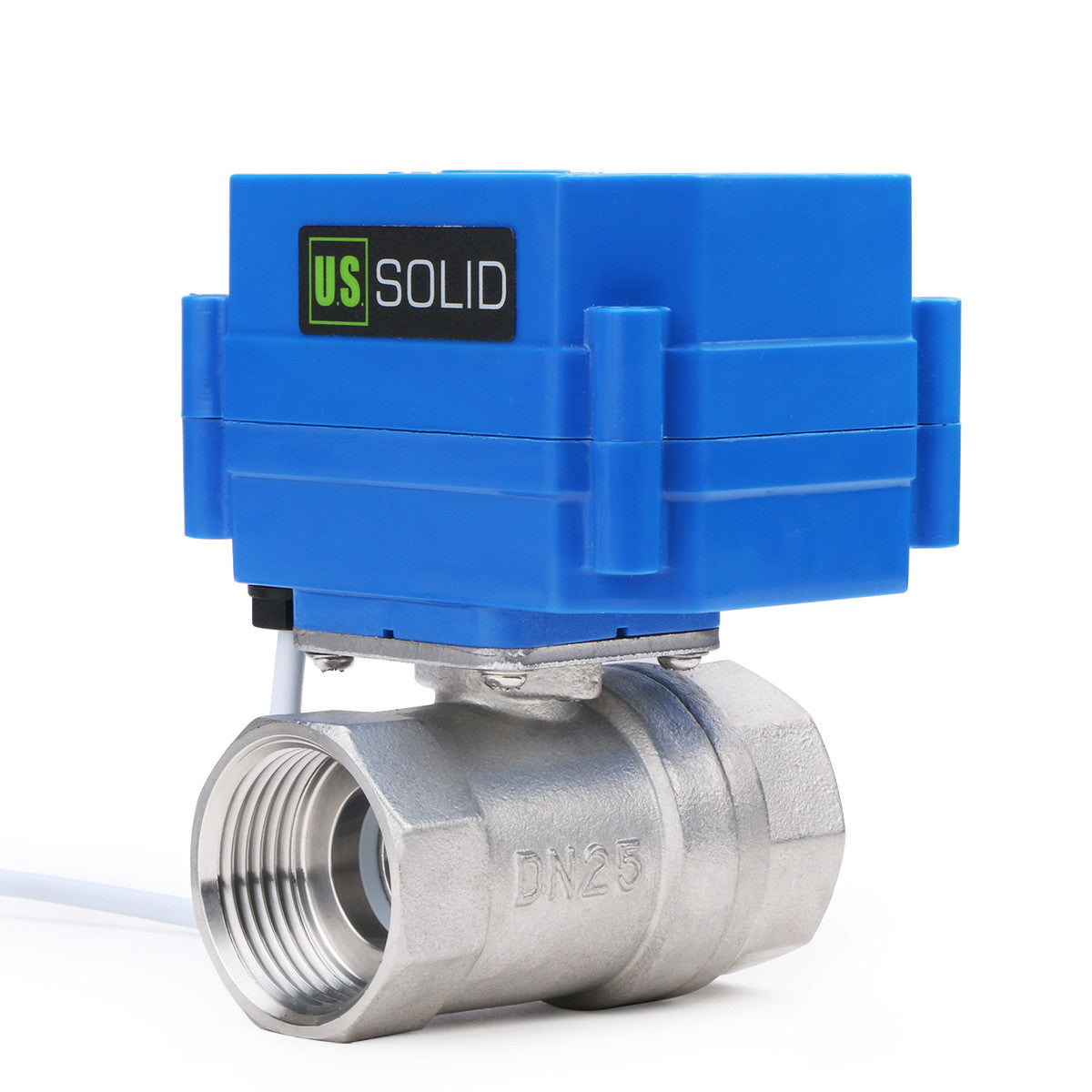

Motorized Ball Valve- 1" Stainless Steel Electrical Ball Valve with Standard Port, 9-24V AC/DC and 3 Wire Setup
Motorized Ball Valve- 1" Stainless Steel Electrical Ball Valve with Standard Port, 9-24V AC/DC and 3 Wire Setup
Motorized ball valves are a vital piece of equipment in numerous applications. This model opens and closes in 6-8 seconds, and remains in its new position while expending no energy. This is a key difference between motorized ball valves and many solenoid valves. Most solenoid valves are energized continuously when in a new position, while motorized ball valves expend energy only when changing from open to close, or vice versa.
The 3 wire model is perfect for situations where two point control is needed. Two of the wires can be connected directly to a toggle switch, and the third wire can be connected to a second point of control. This can allow operation with an open/close switch, while the second point of control allows for automation. All models come with instructions and wiring diagrams so you can be completely comfortable with your new valve.
Specifications
Model: USS-MSV00003
Valve Material : SS304
Ball Seat : PTFE
Seal : EPDM
Operating Time : 6-8 Seconds
Working Voltage : 9-24V AC/DC
Max Power : 5 W
Max Torque : 6 N m
Max Pressure : 1.0 Mpa
Temperatur Range for Flow Medium : 0°C to 100°C
Ambient Temperature Range : -5°C to 40°C
Enclosure Rating : IP65
Life Expectancy : 80,000 to 100,000 Cycles
Bore Type: Standard
Thread Type: G
Wiring Type: 3 Wire Setup
