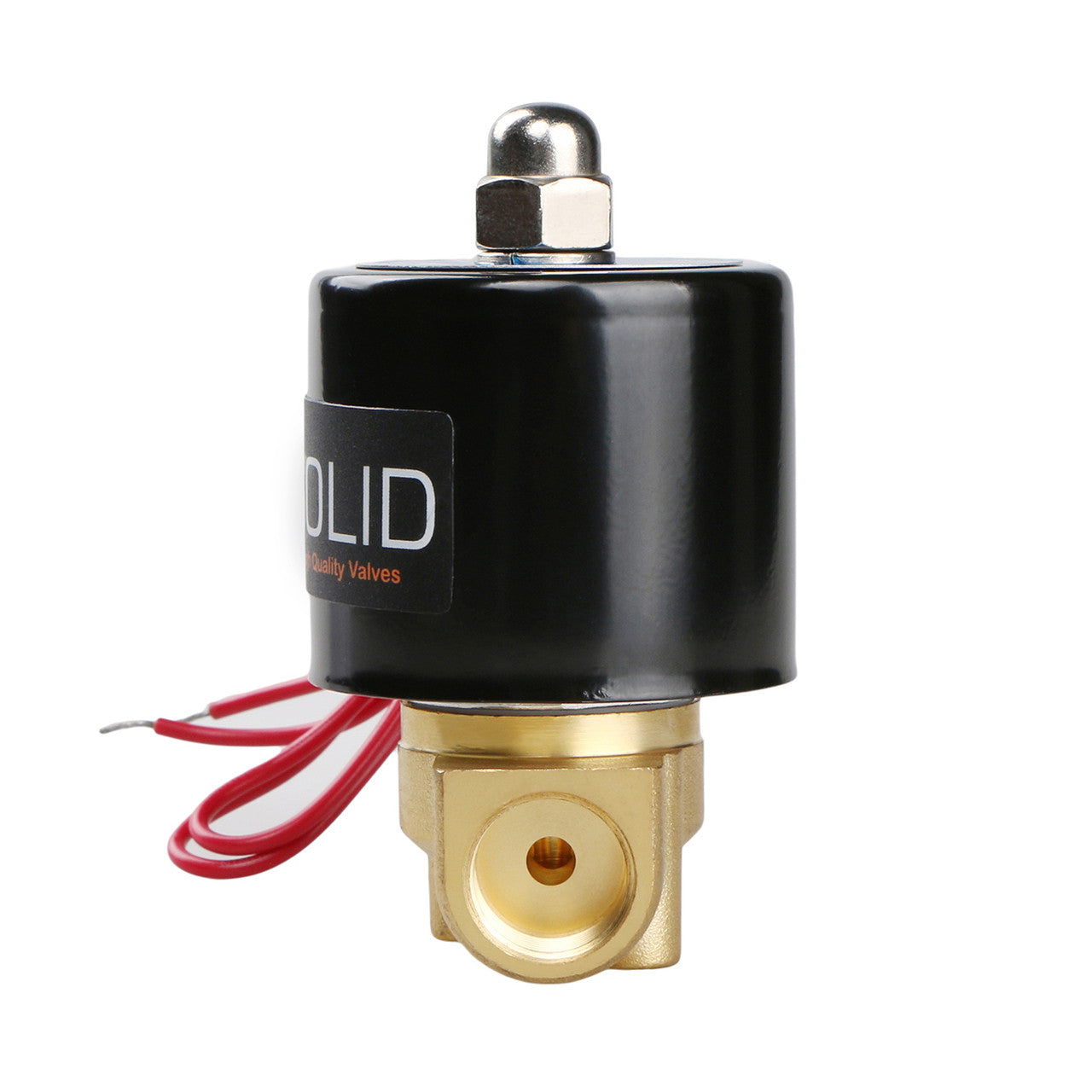

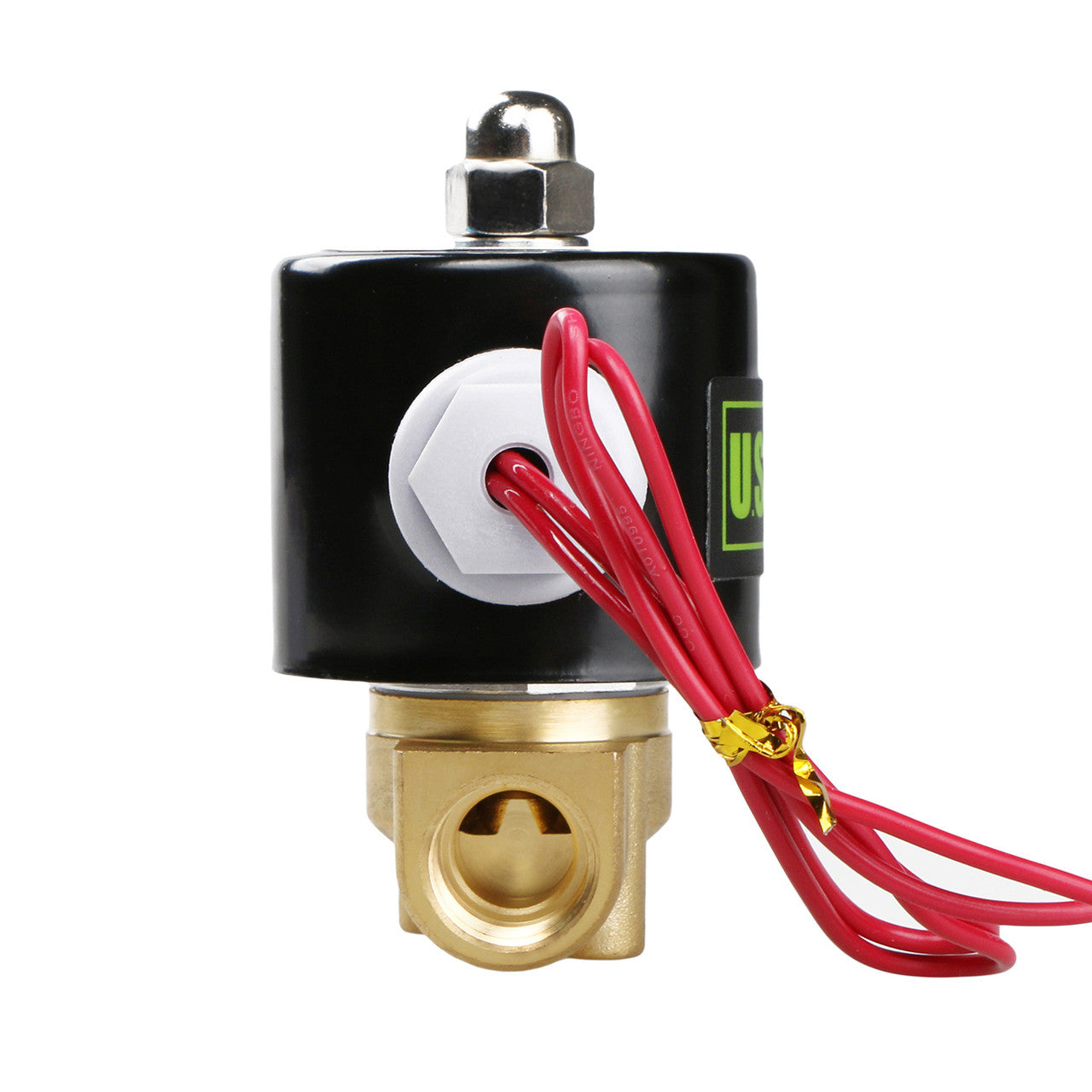

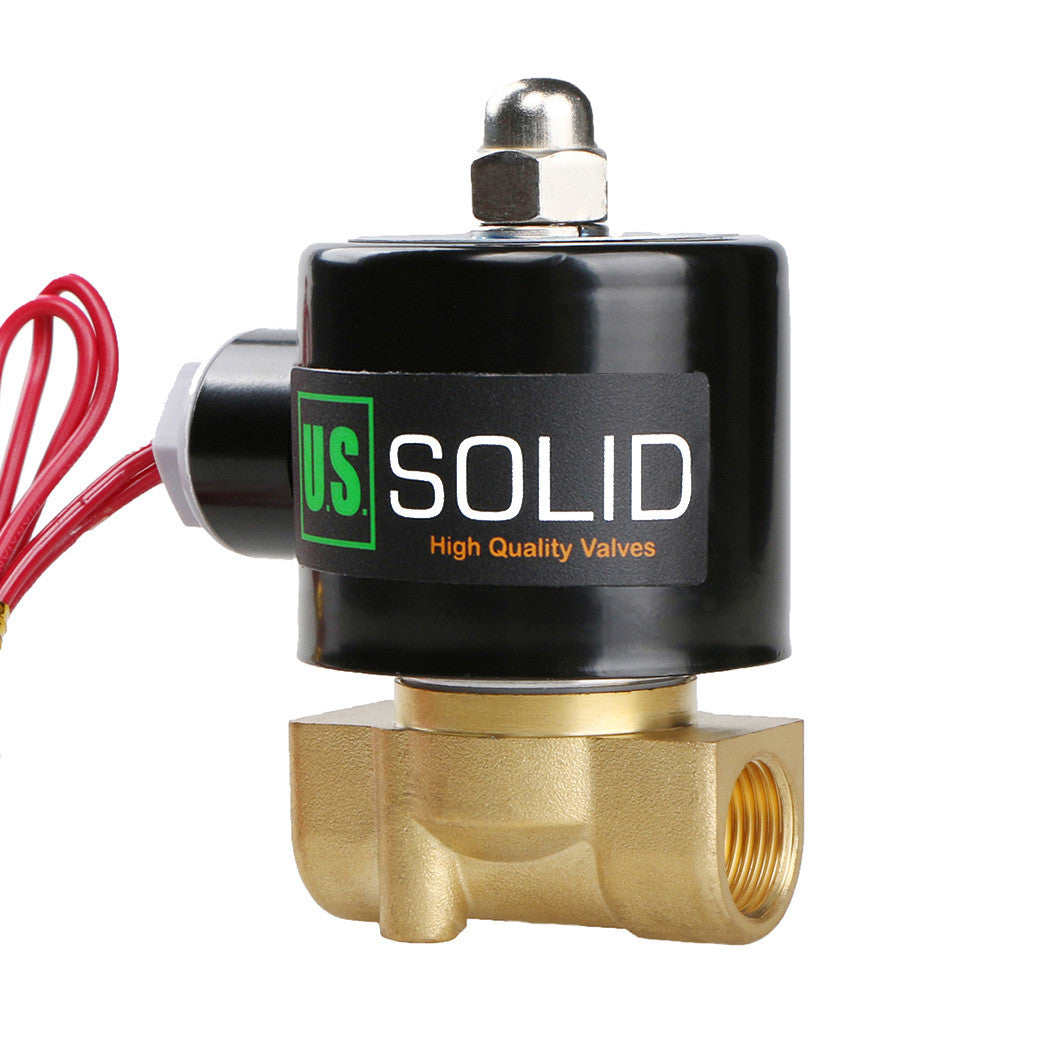

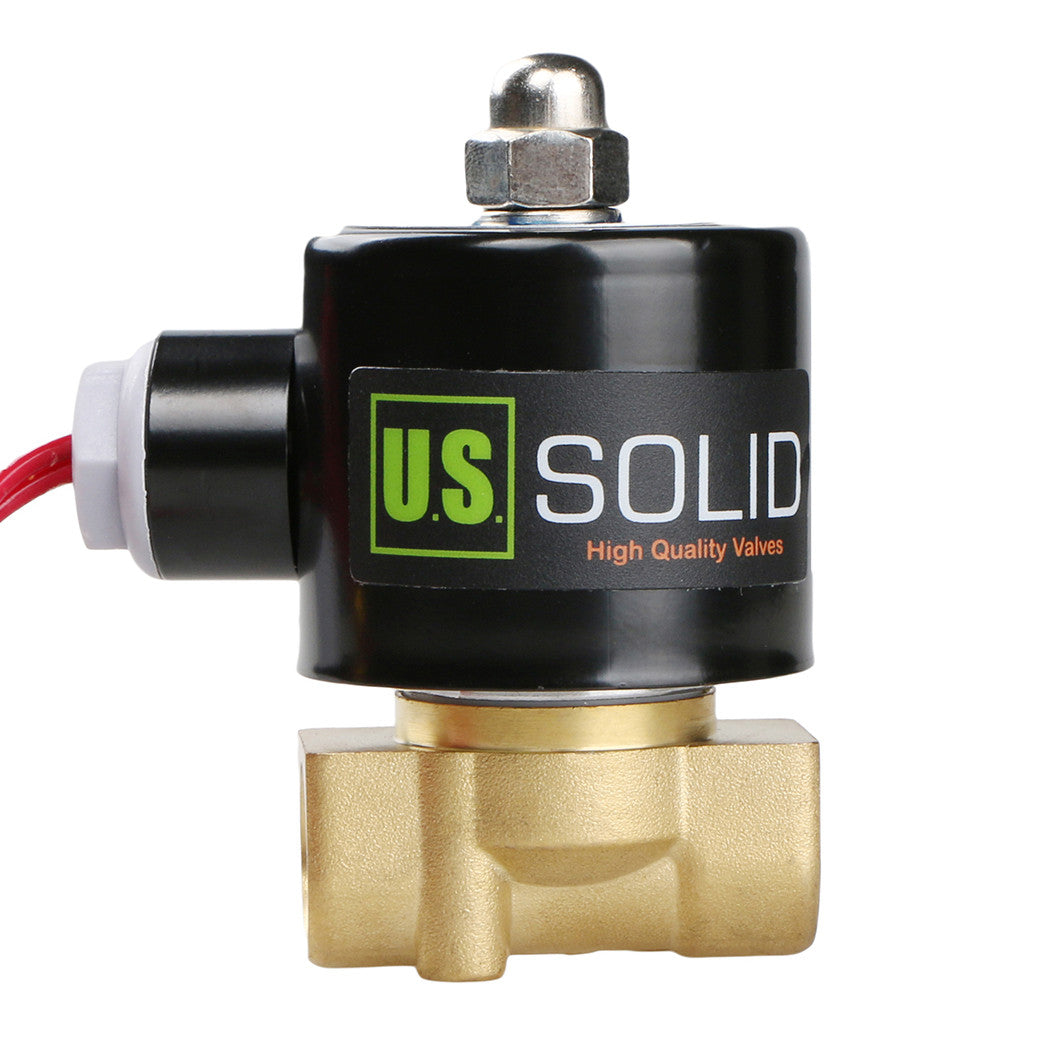

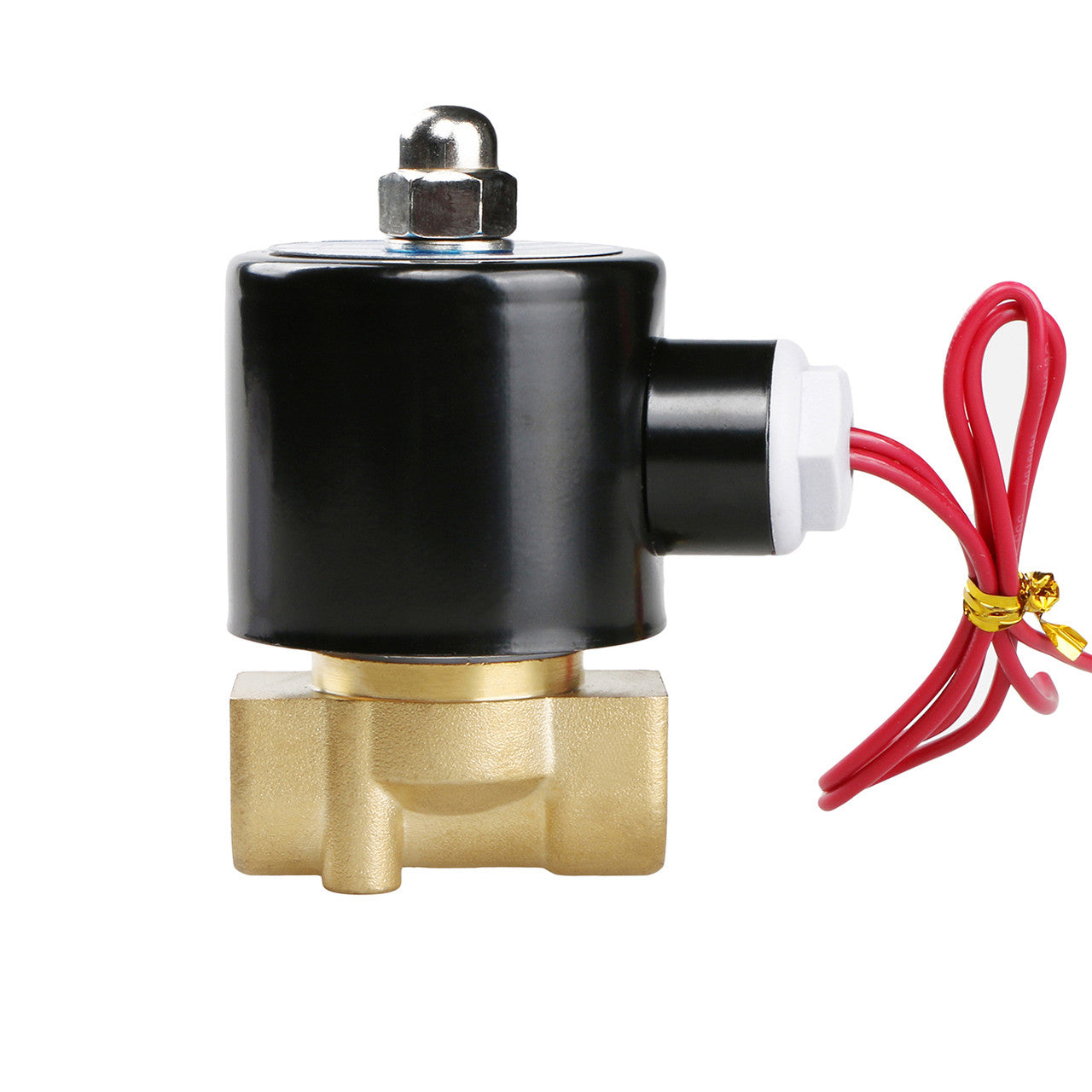

3/8" Brass Solenoid Valve 24V AC (Air, Water, Fuel) Normally Closed, VITON Gasket
3/8" Brass Solenoid Valve 24V AC (Air, Water, Fuel) Normally Closed, VITON Gasket
U.S. Solid normally closed (N/C) electric solenoid valve is constructed with a durable brass body, two-way inlet and outlet ports with three-eighth inch (3/8") female threaded (G) connections, and heat and oil resistant Viton gasket. Suitable for use with hot or cold water, gas, air, very low viscosity fluids (< 20 cst), oils and hydrocarbons, e.g., gasoline, kerosene, or diesel fuel. Suitable for outdoor use. Not for use underwater. Customers chose this general purpose valve for: do-it-yourself projects, moderate temperature applications, harsh chemicals, flow control for irrigation systems, reverse osmosis system, electronic control of tank selection, water line, or motorcycle air shocks.
Specifications
Model: USS2-00055
Pipe Size: 3/8" (4 mm) flow aperture
Body Material: Brass
Gasket / Diaphragm / Seal: Viton
Operation Type: Direct Lift Valve
Operation Mode: Normally Closed
Electric Current: Alternating
Voltage: 24 volts
Voltage range: + or – 10%
Power rating: 22 VA
Operational pressure range: Air, Water, Gases: 0 to 101 PSI; Oil: 0 to 72 PSI Flow capacity: 0.6 gallons per minute (GPM) of water at 60 oF with a pressure drop of 1 PSI
Flow value: 0.6 Cv
Temperature, Minimum: 14 degrees Fahrenheit (-10 degrees Celsius)
Temperature, Maximum: 248 degrees Fahrenheit (120 degrees Celsius)
