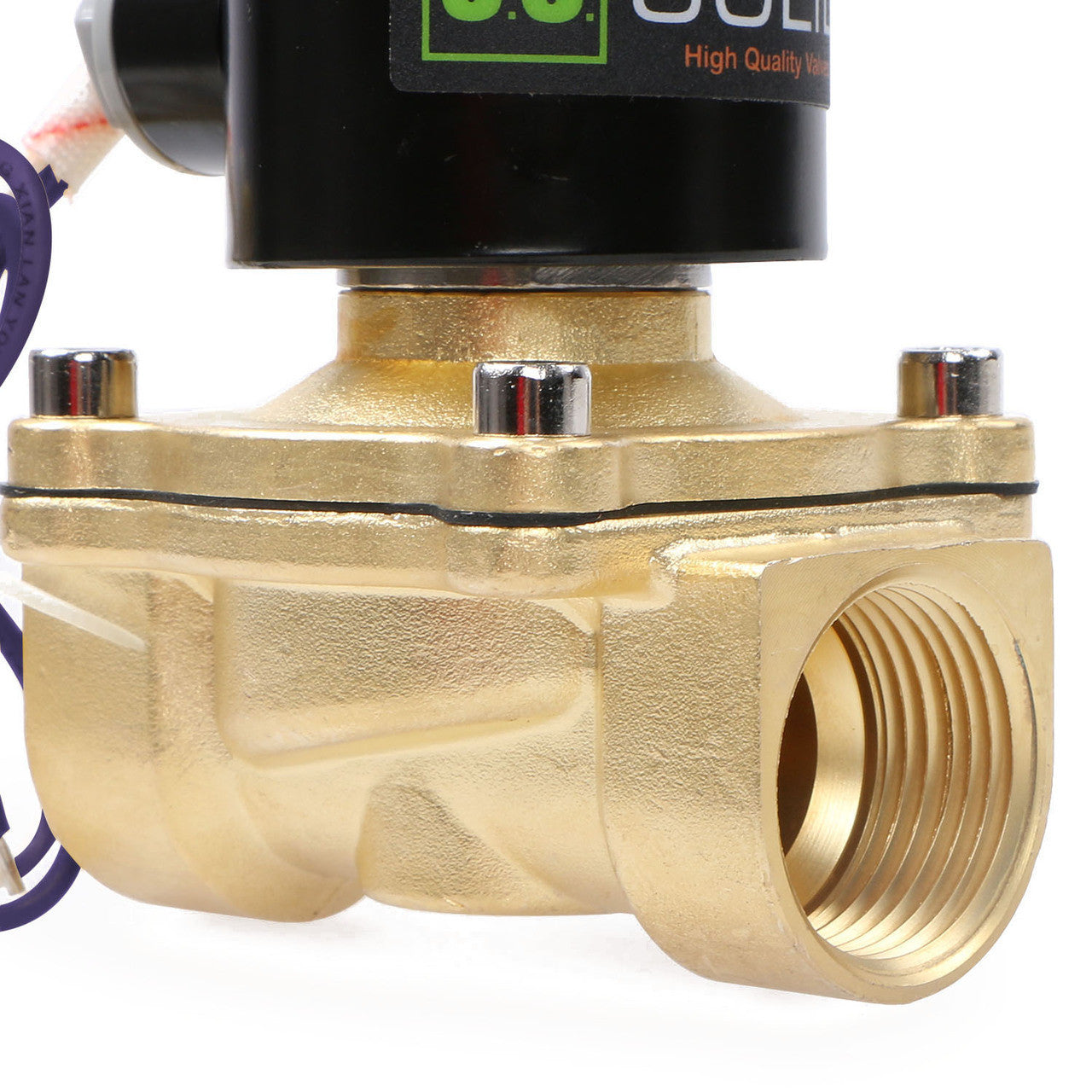

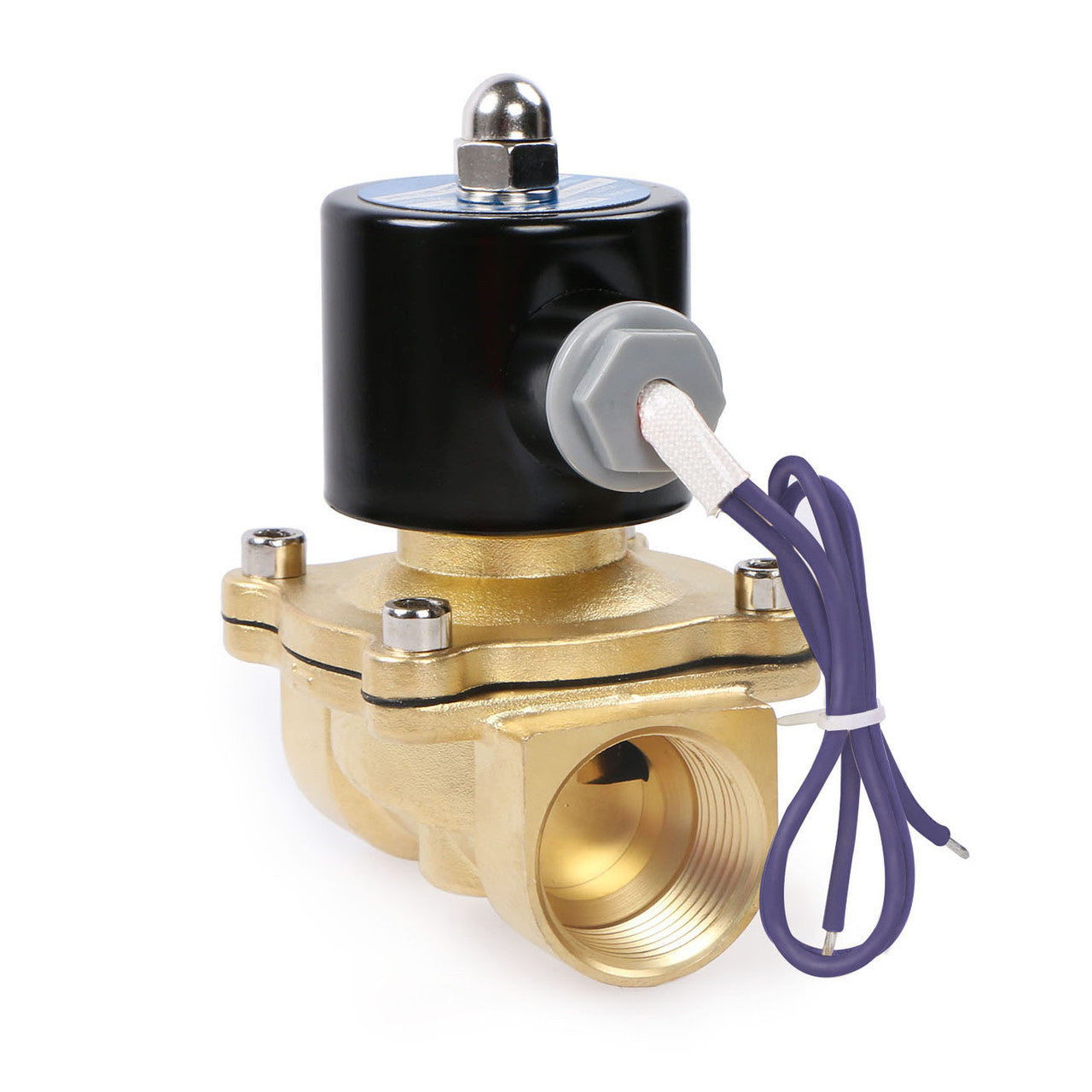

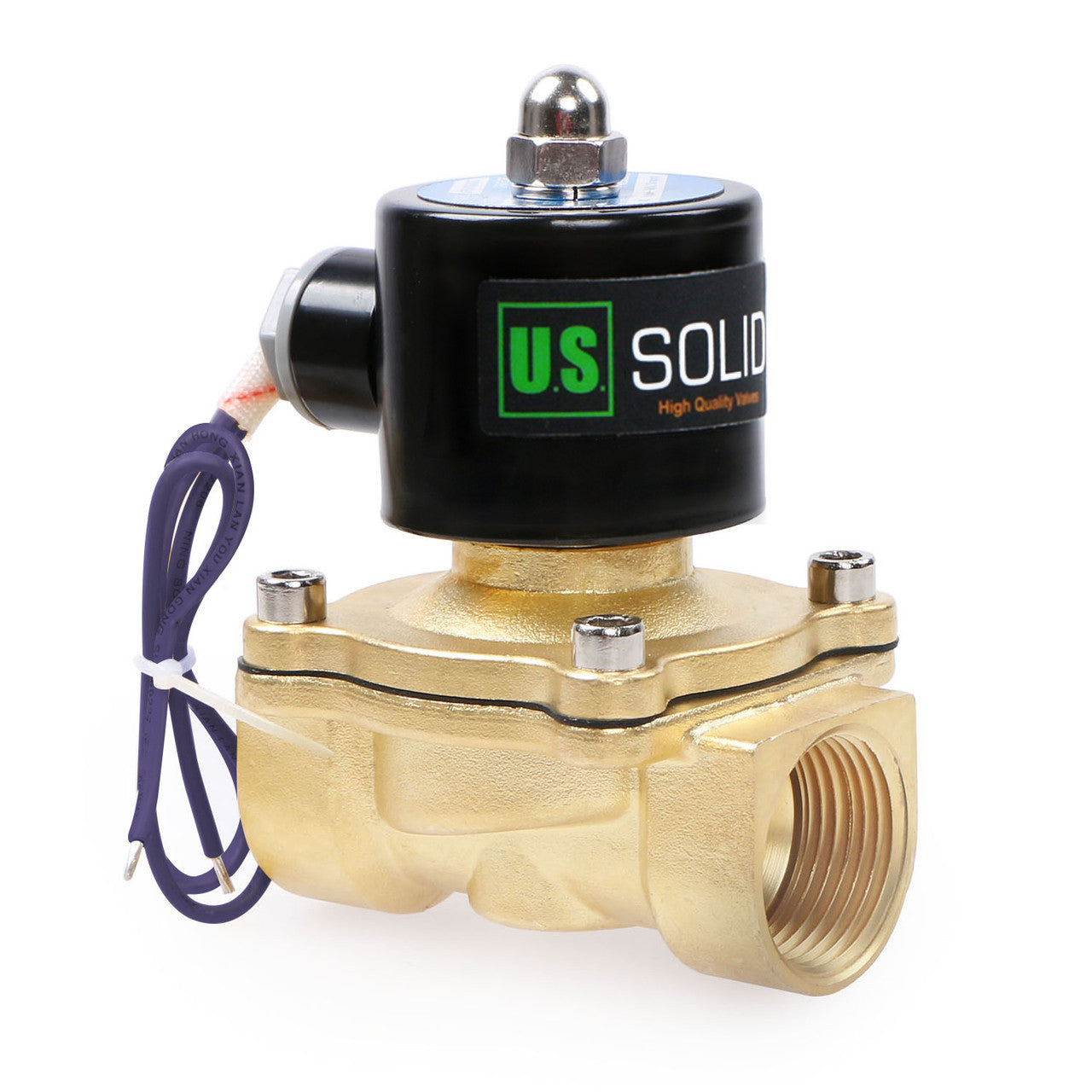

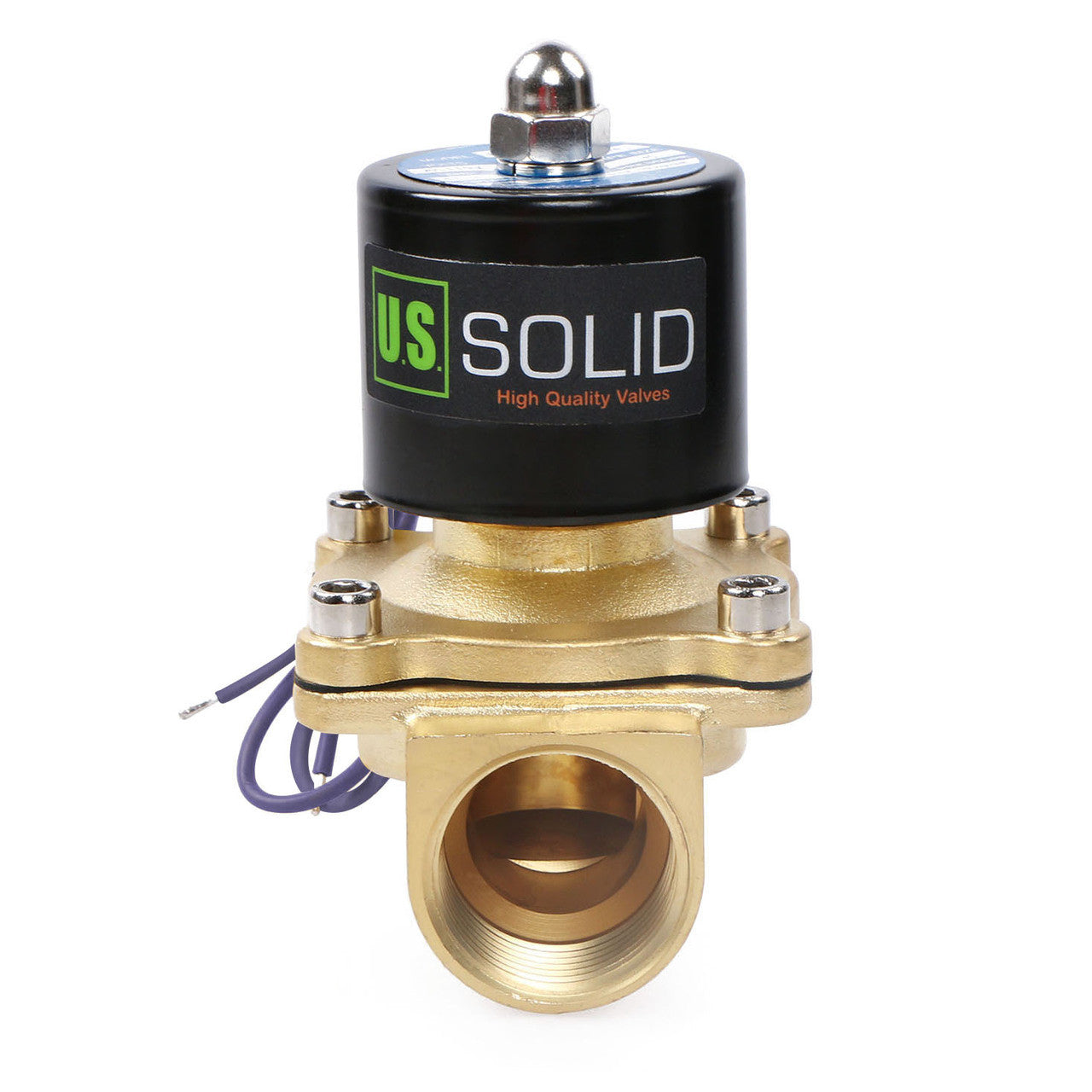

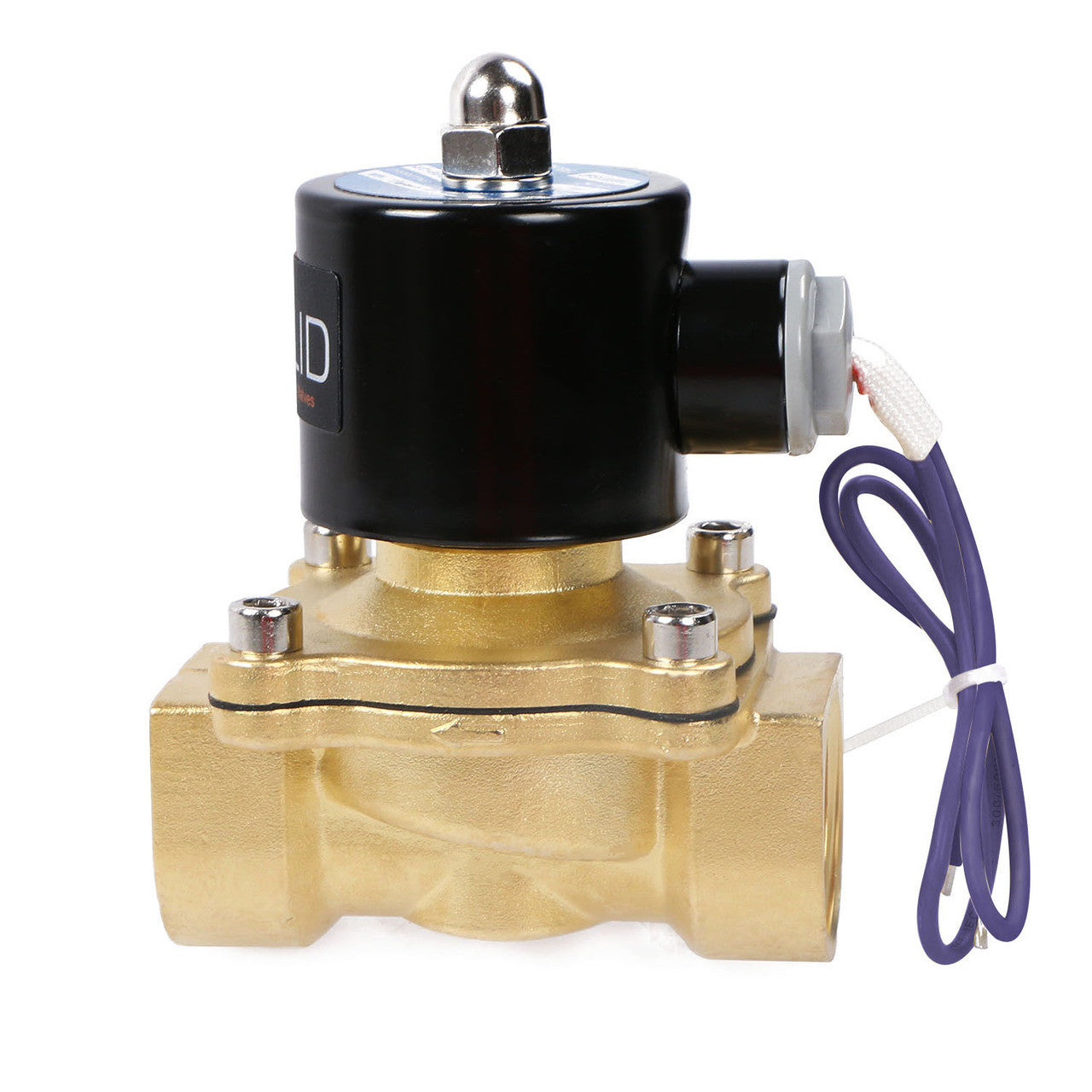

1" Brass Electric Solenoid Valve 12V DC Normally Closed Water, Diesel...

Specifications
Model: USS2-00003
Pipe Size: 1" (25 mm) flow aperture
Body Material: Brass
Gasket / Diaphragm / Seal: Viton
Operation Type: Semi-Direct Lift Valve
Operation Mode: Normally Closed
Electric Current: Direct
Voltage: 12 volts
Voltage range: + or – 10%
Power rating: 20 Watts
Operational pressure range: Air, Water, Gases: 0 to 101 PSI; Oil: 0 to 72 PSI
Flow capacity: 12 gallons per minute (GPM) of water at 60 oF with a pressure drop of 1 PSI
Flow value: 12 Cv
Temperature, Minimum: 14 degrees Fahrenheit (-10 degrees Celsius)
Temperature, Maximum: 248 degrees Fahrenheit (120 degrees Celsius)
