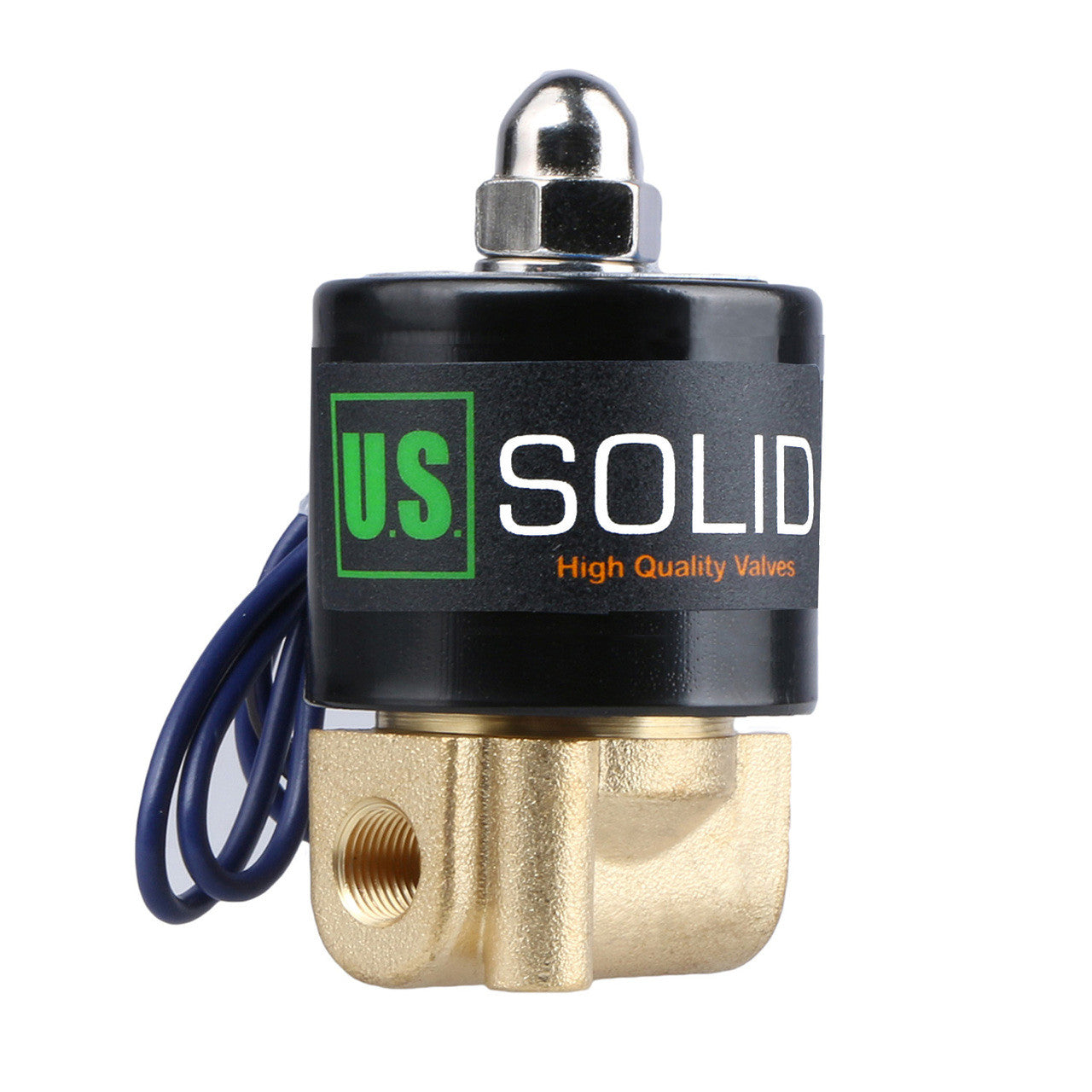

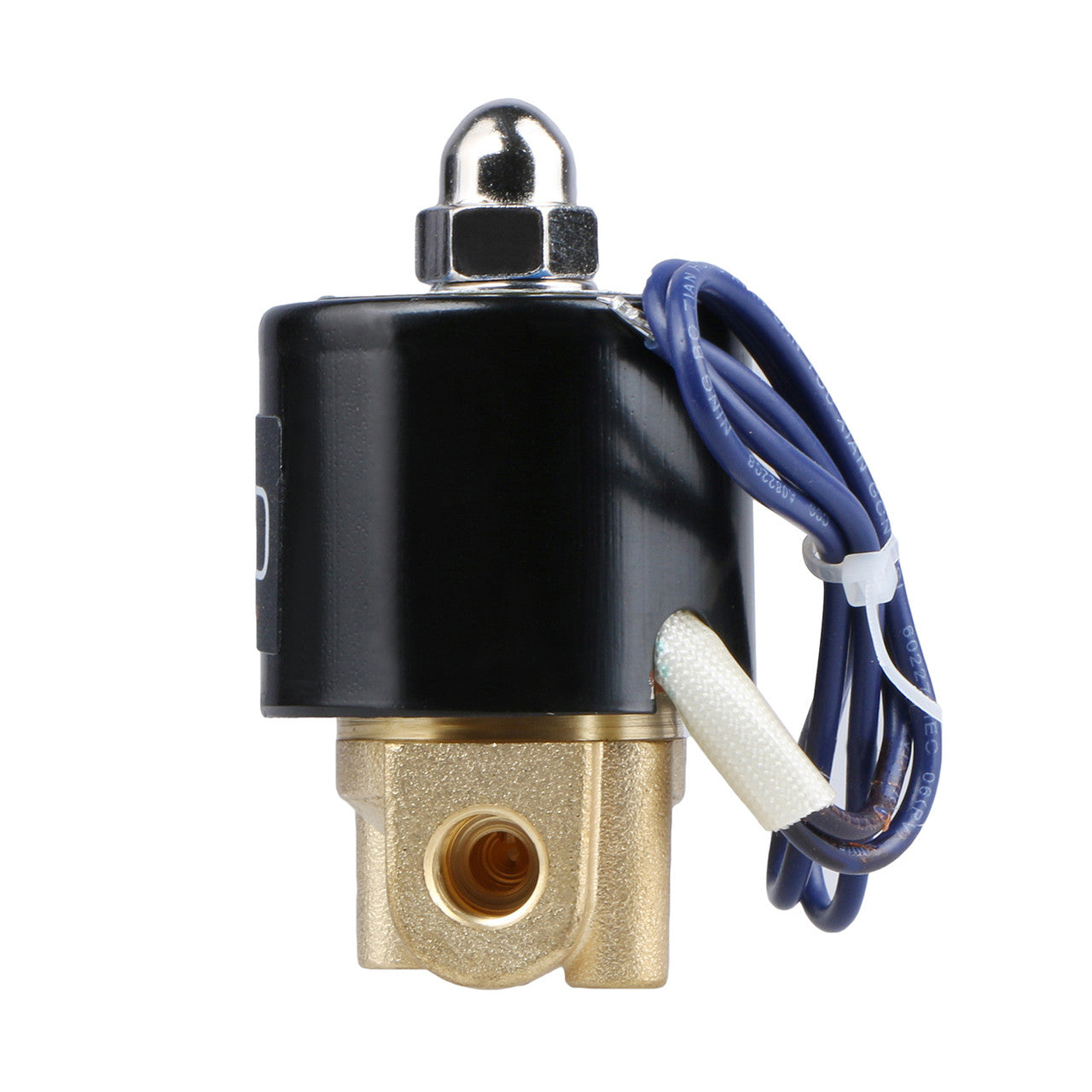

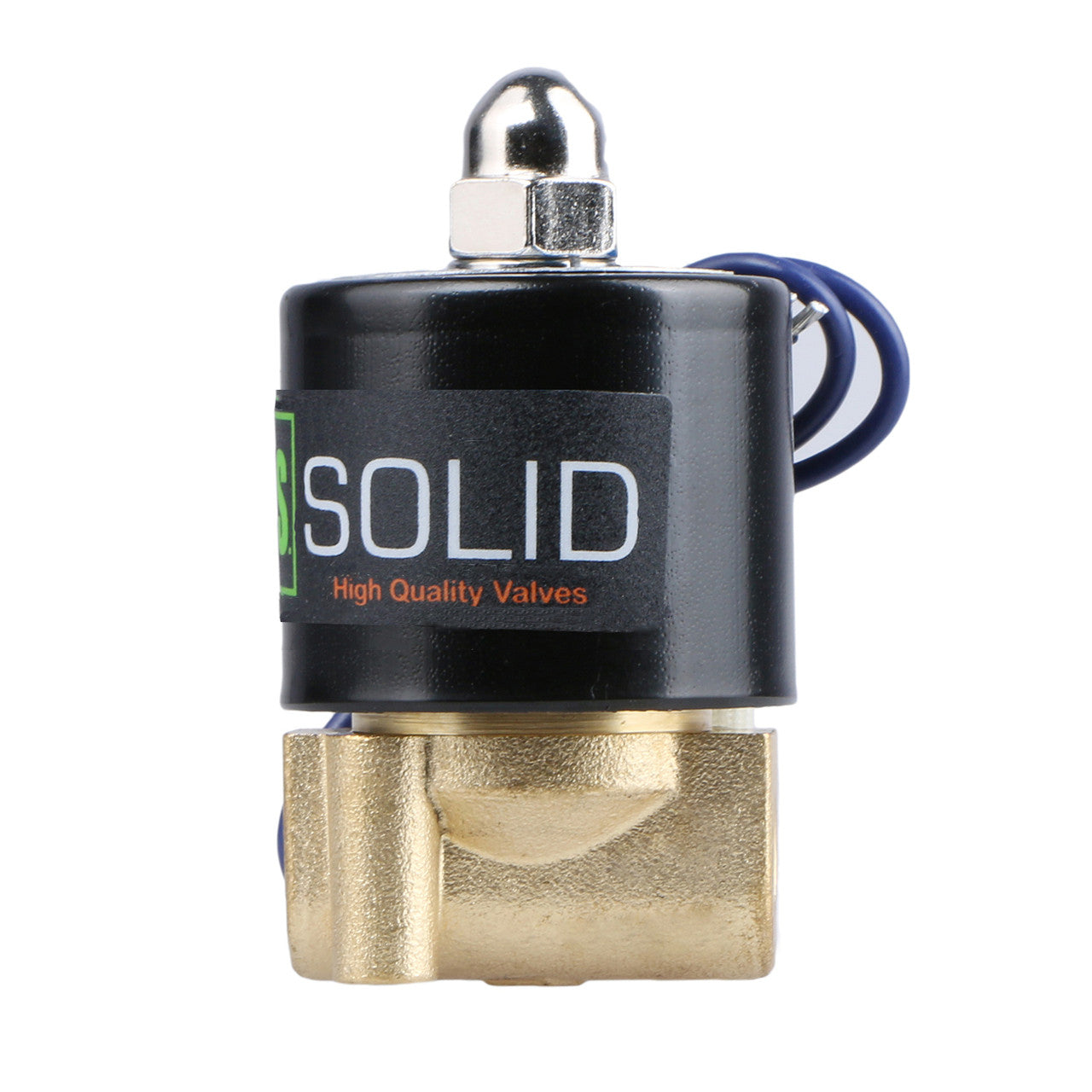

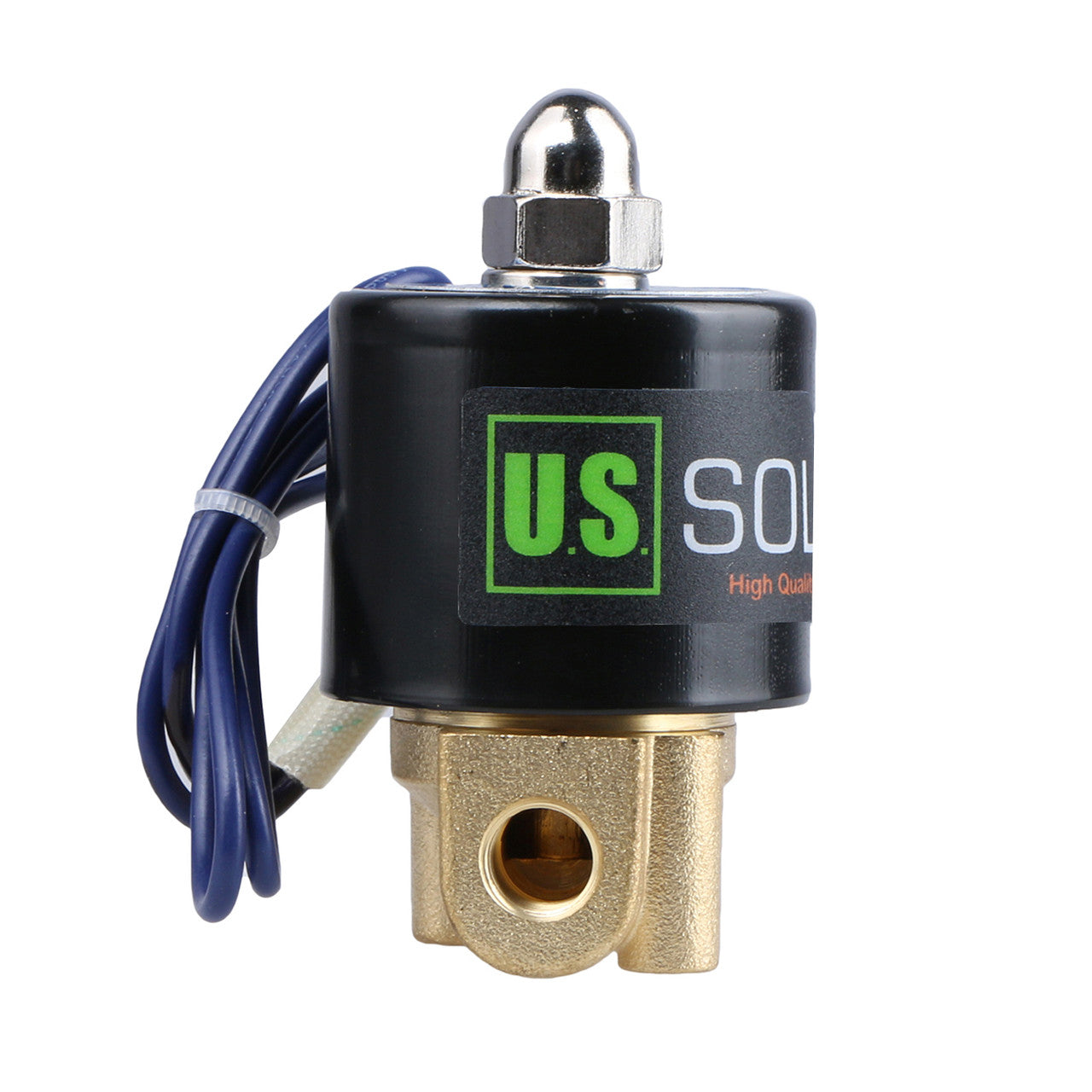

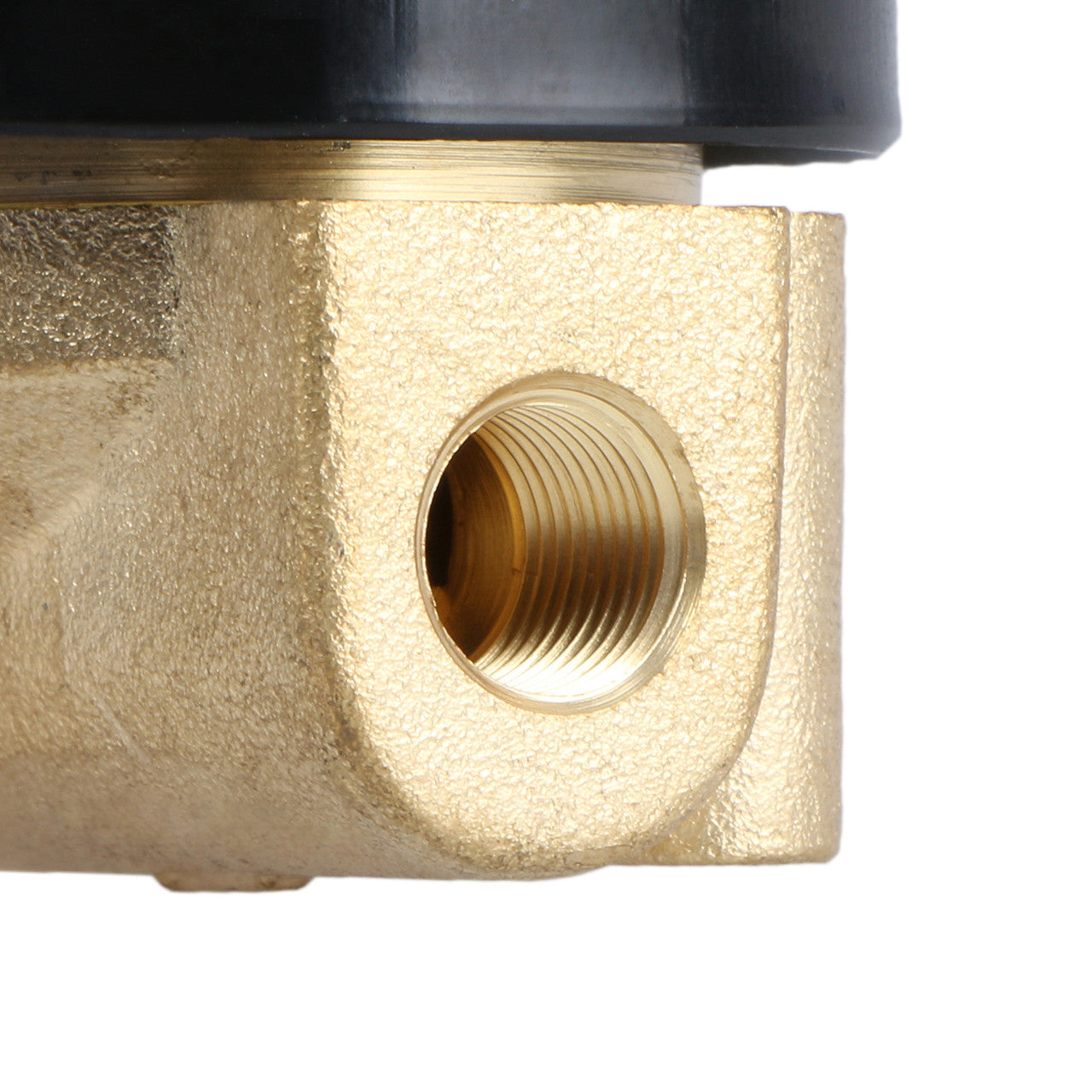

U.S. Solid normally closed (N/C) electric solenoid valve is constructed with a durable brass body, two-way inlet and outlet ports with one-quarter inch (1/8") female threaded (G) connections, and heat and oil resistant NBR seals. Suitable for use with hot or cold water, gas, air, very low viscosity fluids (< 20 cst), oils and hydrocarbons, e.g., gasoline, kerosene, or diesel fuel. Suitable for outdoor use. Not for use underwater. Customers chose this general purpose valve for: do-it-yourself projects, moderate temperature applications, water exchange for aquarium, air horn, or bleeding moisture from an air tank.
Specifications Model: USS2-00015 Pipe Size: 1/8" (2.5 mm) flow aperture Body Material: Brass Gasket / Diaphragm / Seal: NBR Operation Type: Direct Lift Valve Operation Mode: Normally Closed Electric Current: Direct Voltage: 12 volts Voltage range: + or – 10% Power rating: 14 W Operational pressure range: Air, Water, Gases: 0 to 101 PSI; Oil: 0 to 72 PSI Flow capacity: 0.23 gallons per minute (GPM) of water at 60 oF with a pressure drop of 1 PSI Flow value: 0.23Cv Temperature, Minimum: 23 degrees Fahrenheit (-5 degrees Celsius) Temperature, Maximum: 176 degrees Fahrenheit (80 degrees Celsius)
