1/4" Brass Electric Solenoid Valve 12V DC Normally Closed VITON
1/4" Brass Electric Solenoid Valve 12V DC Normally Closed VITON

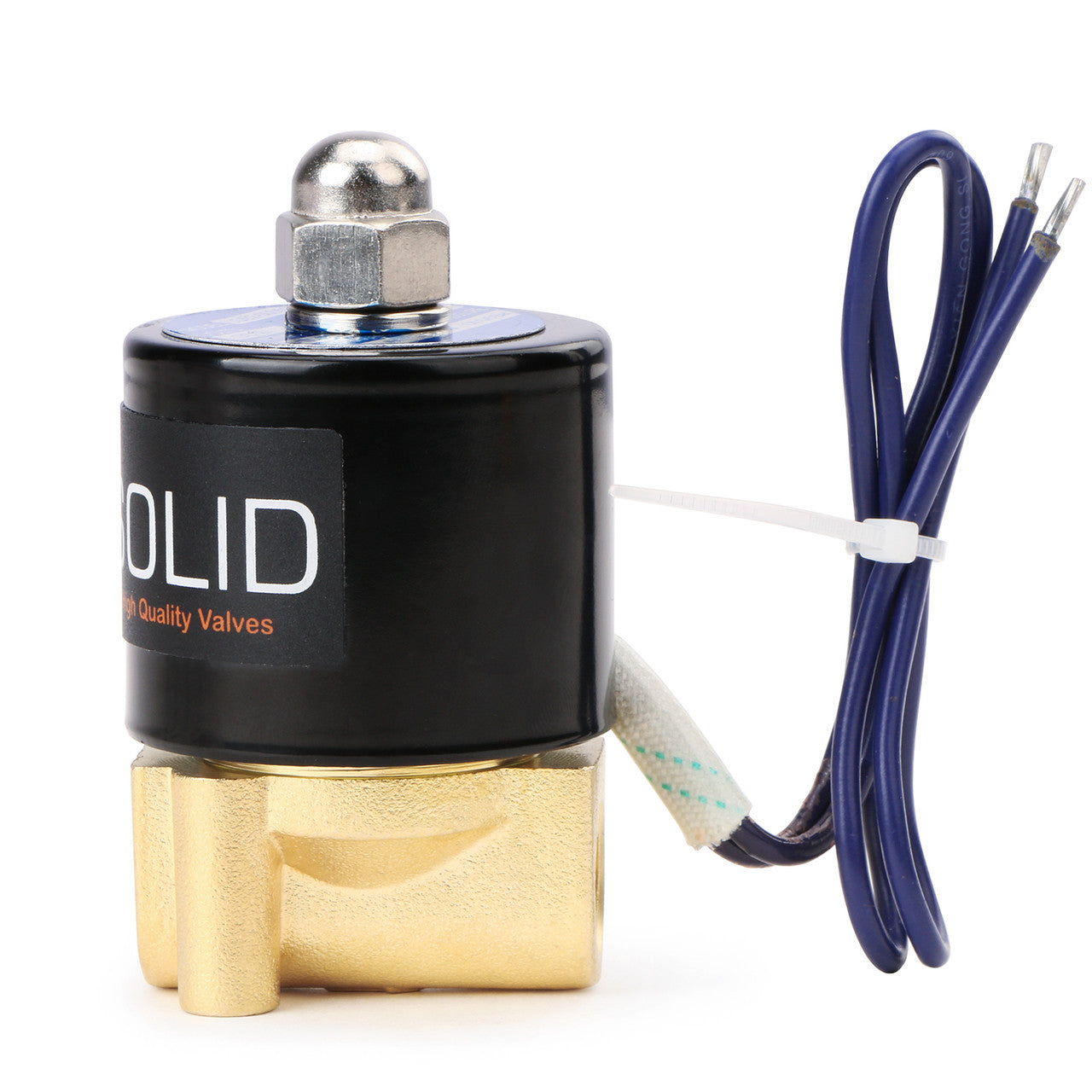

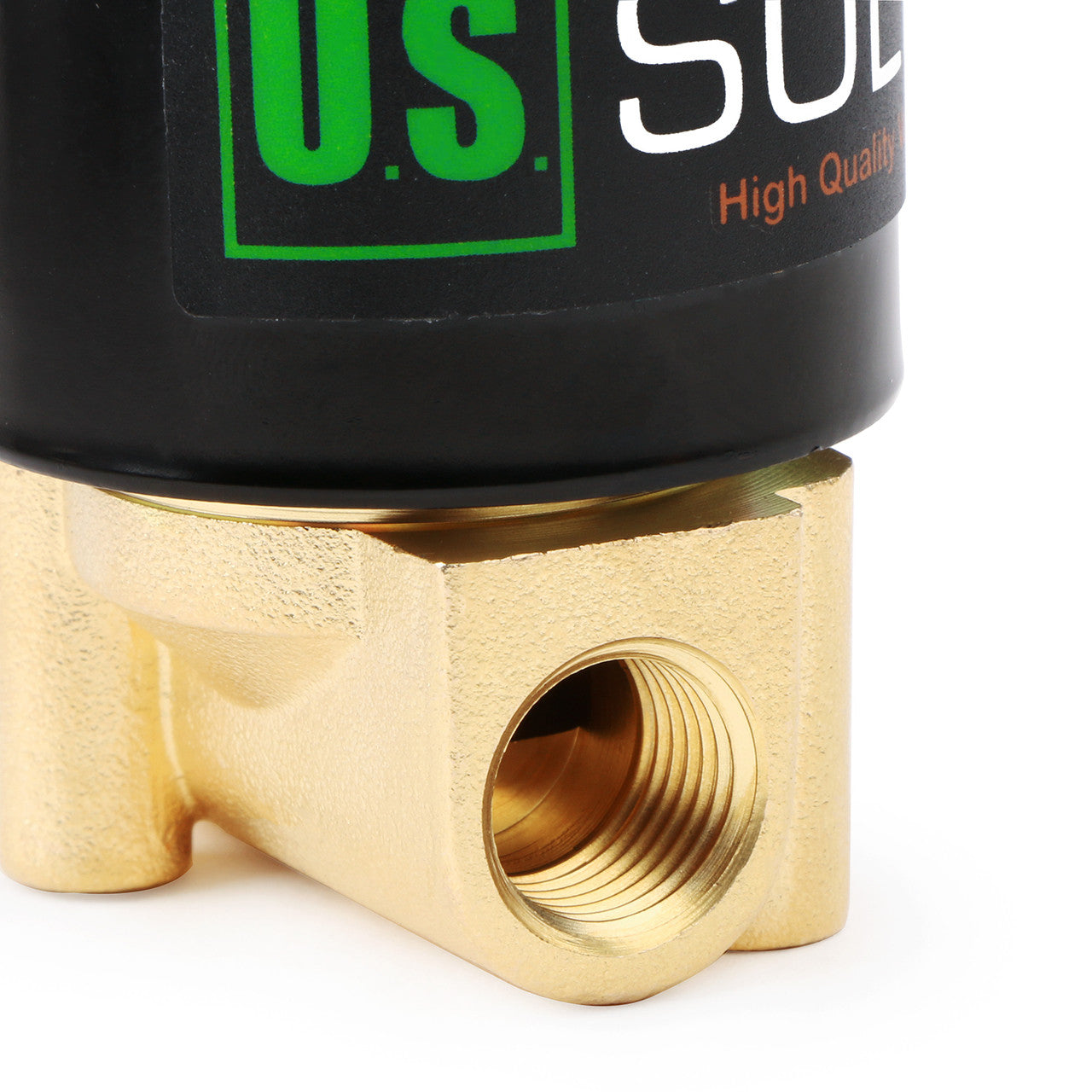

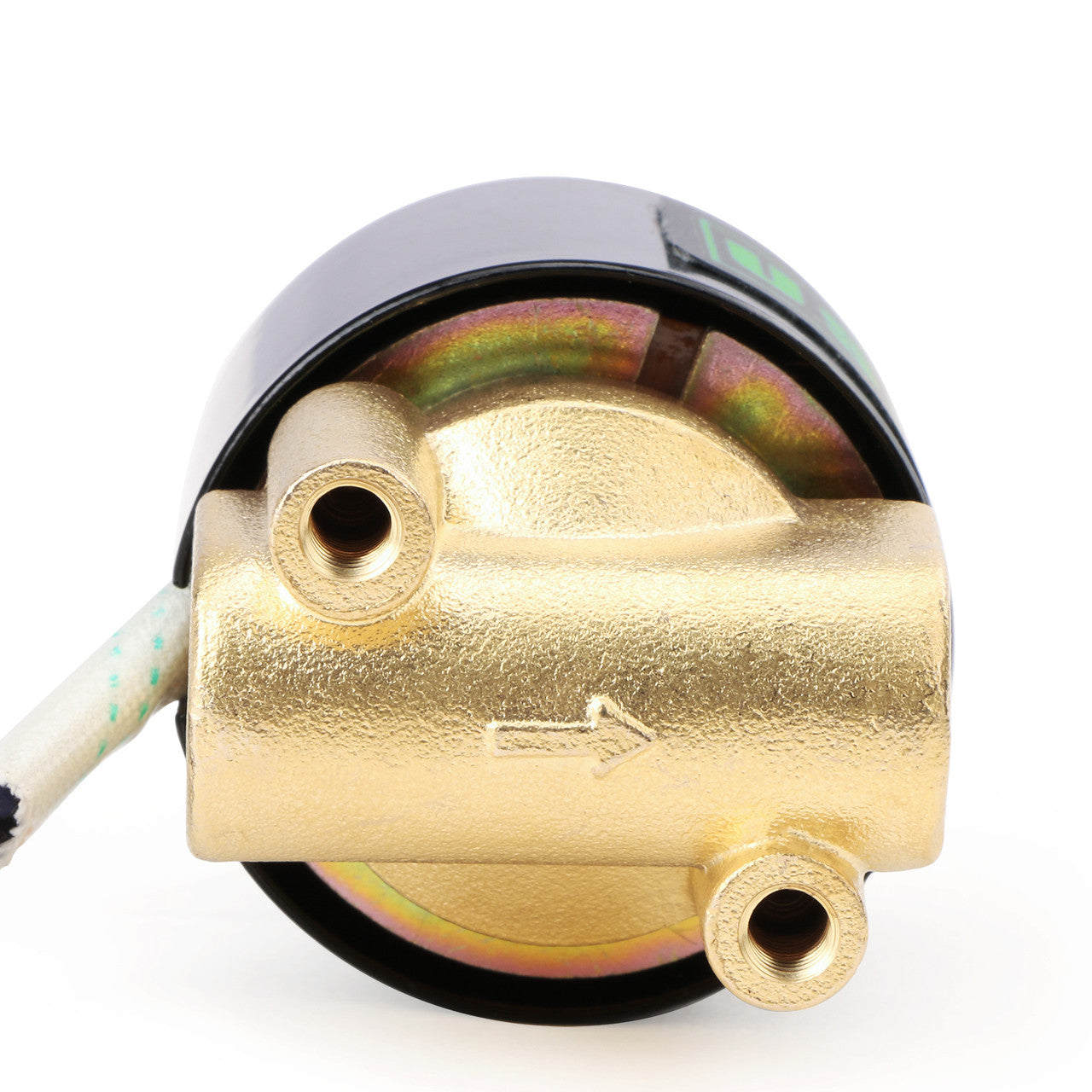

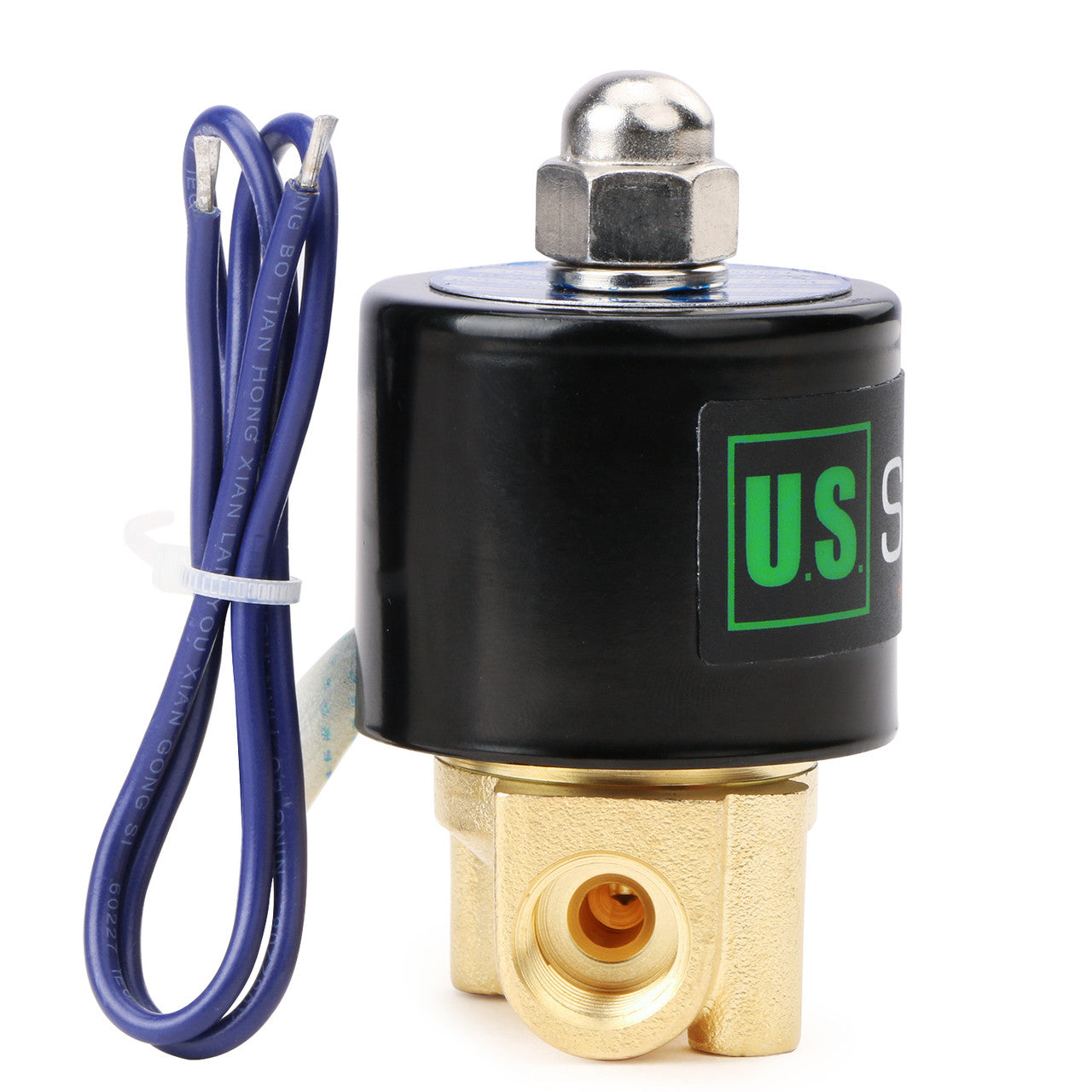

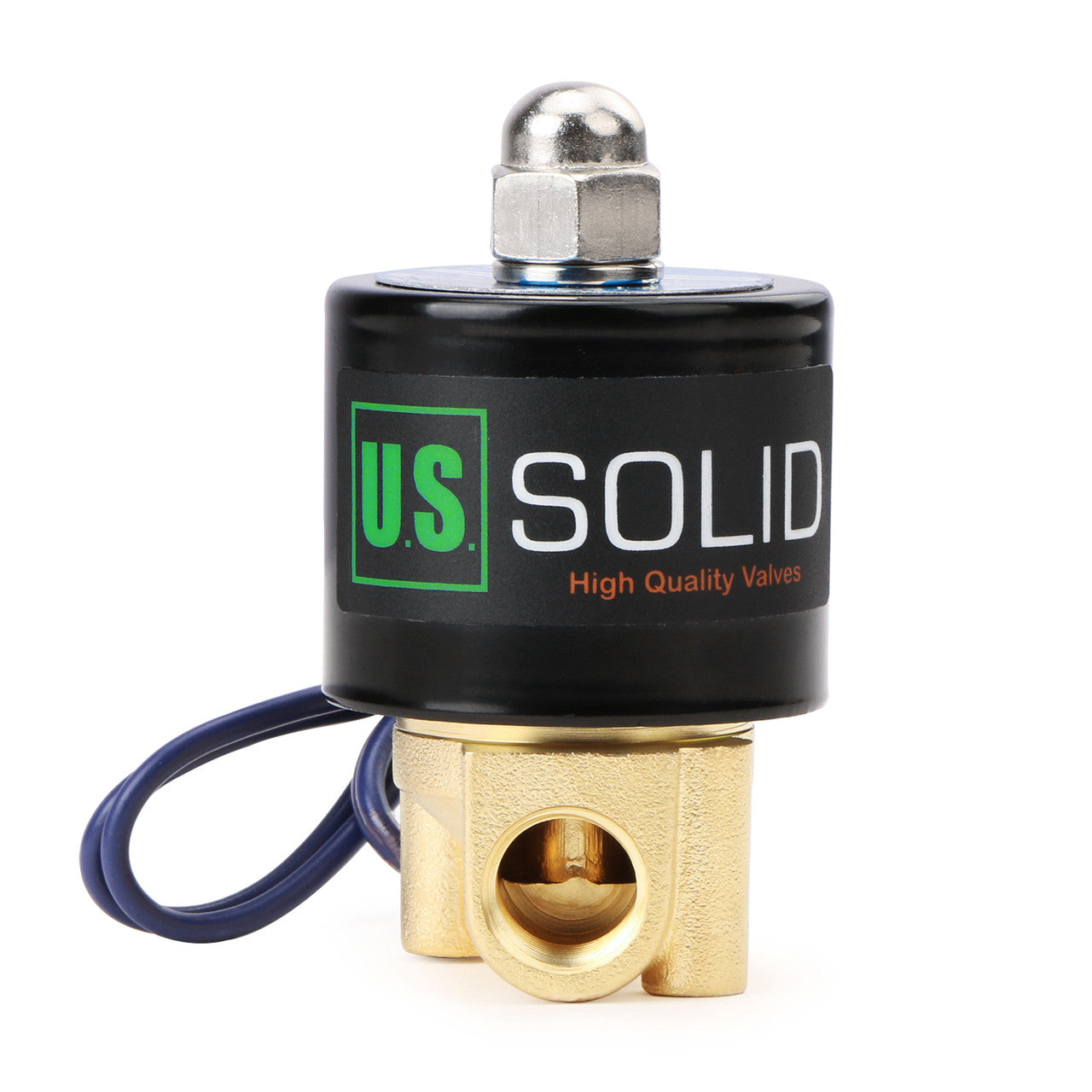

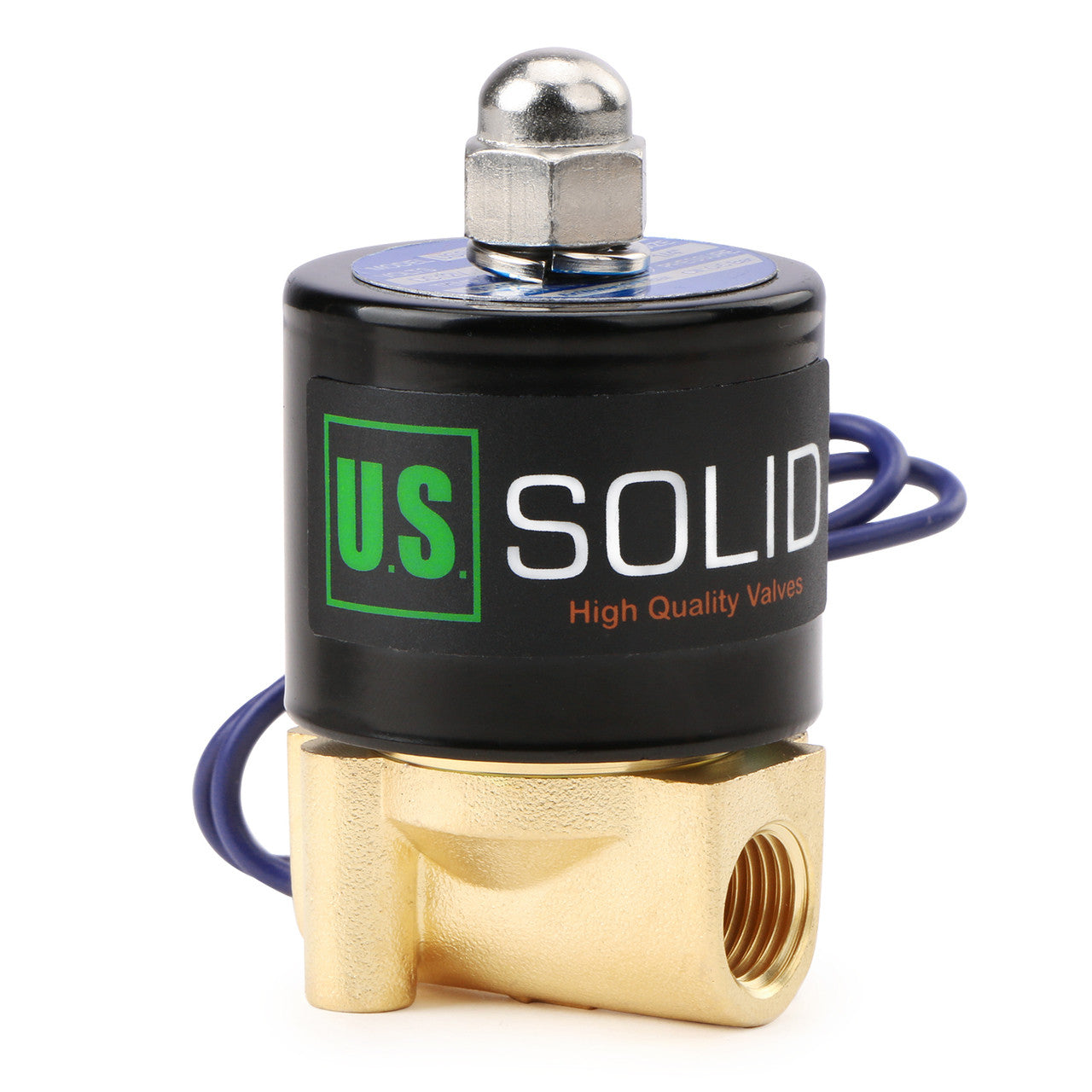

U. S. Solid normally closed (N/C) electric solenoid valve is constructed with a durable brass body, two-way inlet and outlet ports with one-quarter inch (1/4") female threaded (G) connections, and heat and oil resistant Viton seals. Suitable for use with hot or cold water, gas, air, very low viscosity fluids (< 20 cst), oils and hydrocarbons, e.g., gasoline, kerosene, or diesel fuel. Suitable for outdoor use. Not for use underwater. Customers chose this general purpose valve for: do-it-yourself projects, moderate temperature applications, water exchange for aquarium, air horn, or bleeding moisture from an air tank.
Specifications
Model: USS2-00051.
Pipe Size: 1/4" (2.5 mm) flow aperture
Body Material: Brass
Gasket / Diaphragm / Seal: Viton
Operation Type: Direct Lift Valve
Operation Mode: Normally Closed
Electric Current: Direct
Voltage: 12 volts
Voltage range: + or – 10%
Power rating: 14 Watts
Operational pressure range; Air, Water, Gases: 0 to 101 PSI; Oil: 0 to 72 PSI
Flow capacity: 0.23 gallons per minute (GPM) of water at 60 oF with a pressure drop of 1 PSI
Flow value: 0.23 Cv
Temperature, Minimum: 14 degrees Fahrenheit (-10 degrees Celsius)
Temperature, Maximum: 248 degrees Fahrenheit (120 degrees Celsius)
