1/2" Stainless Steel Electric Solenoid Valve 24V DC N.C. VITON Water Air Fuel
1/2" Stainless Steel Electric Solenoid Valve 24V DC N.C. VITON Water Air Fuel

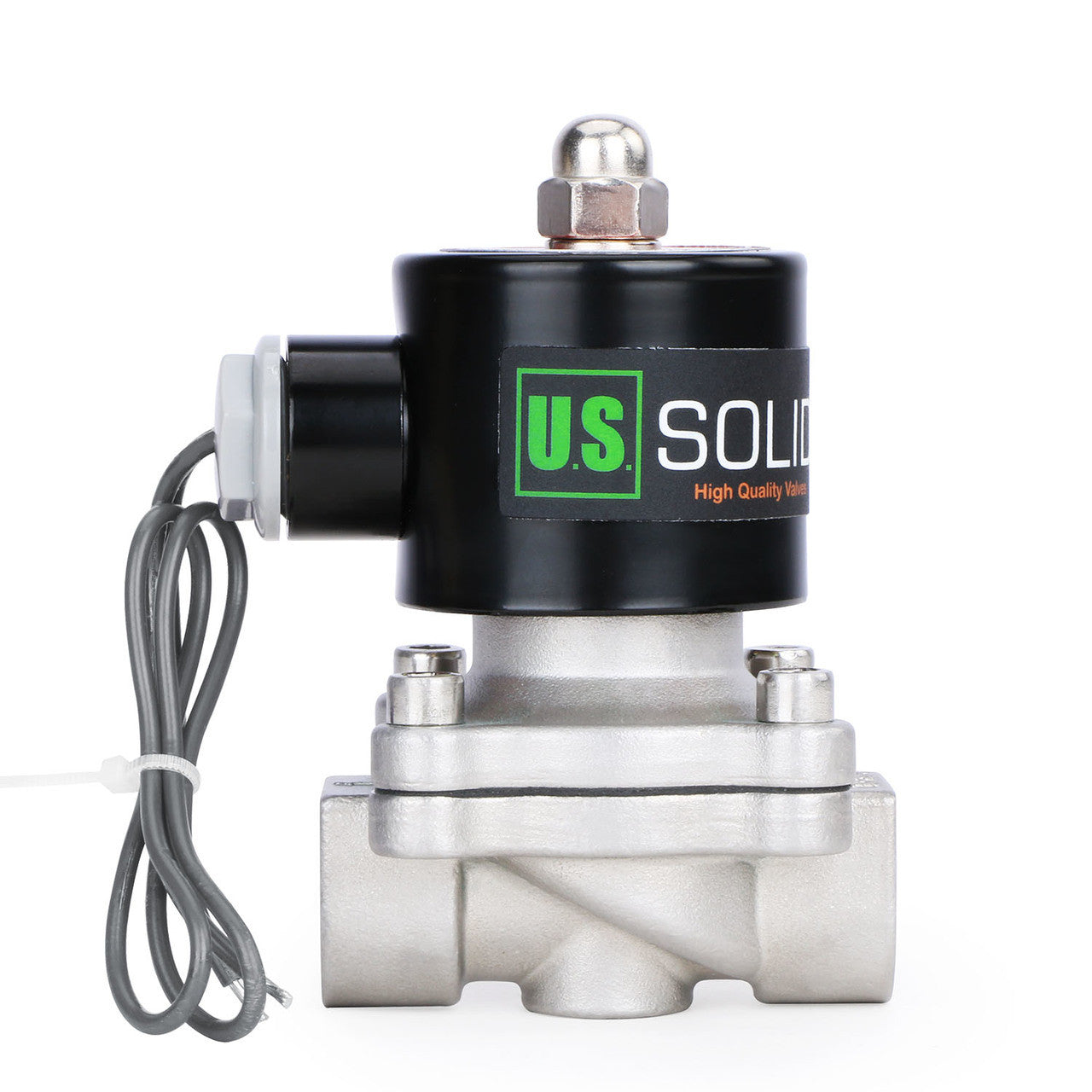

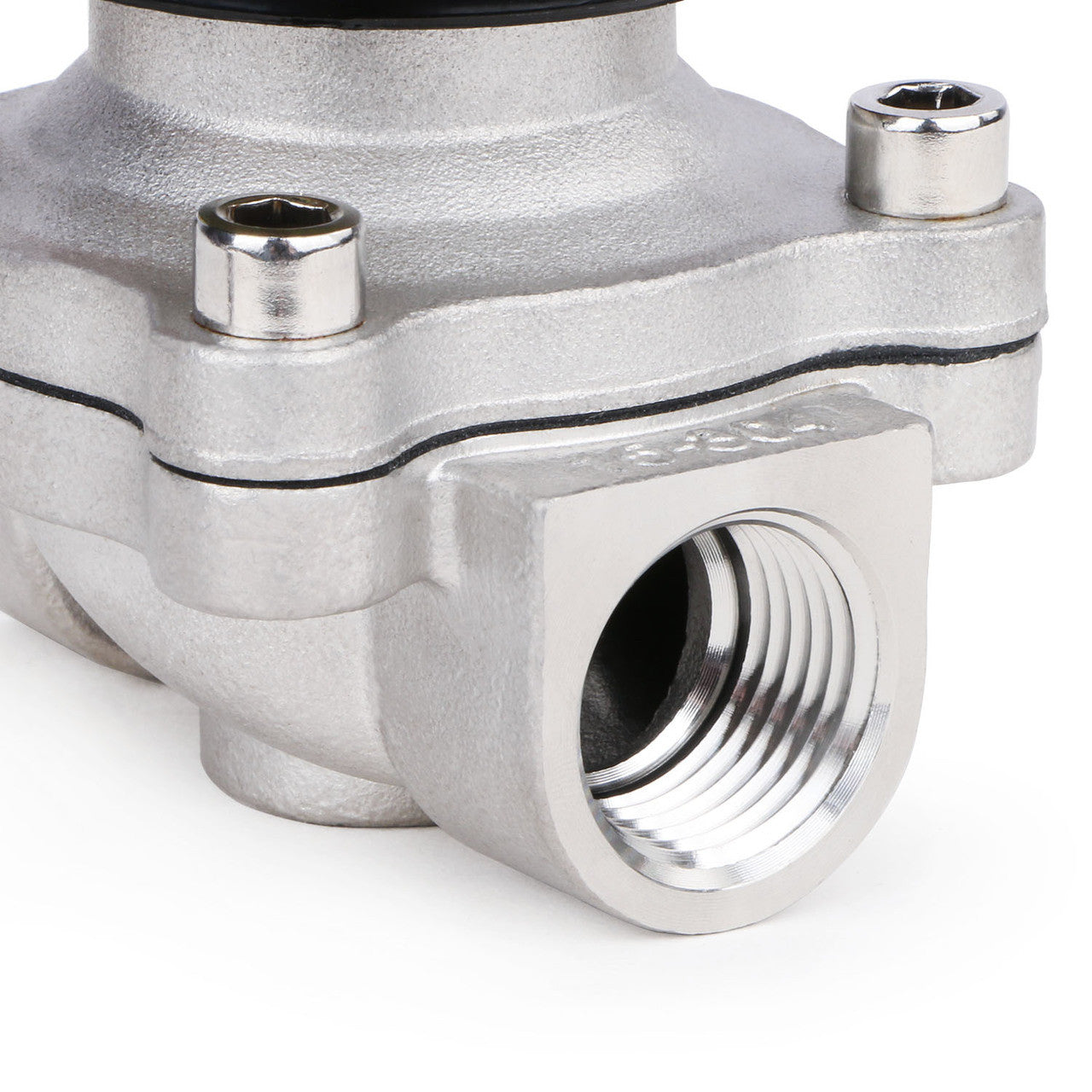

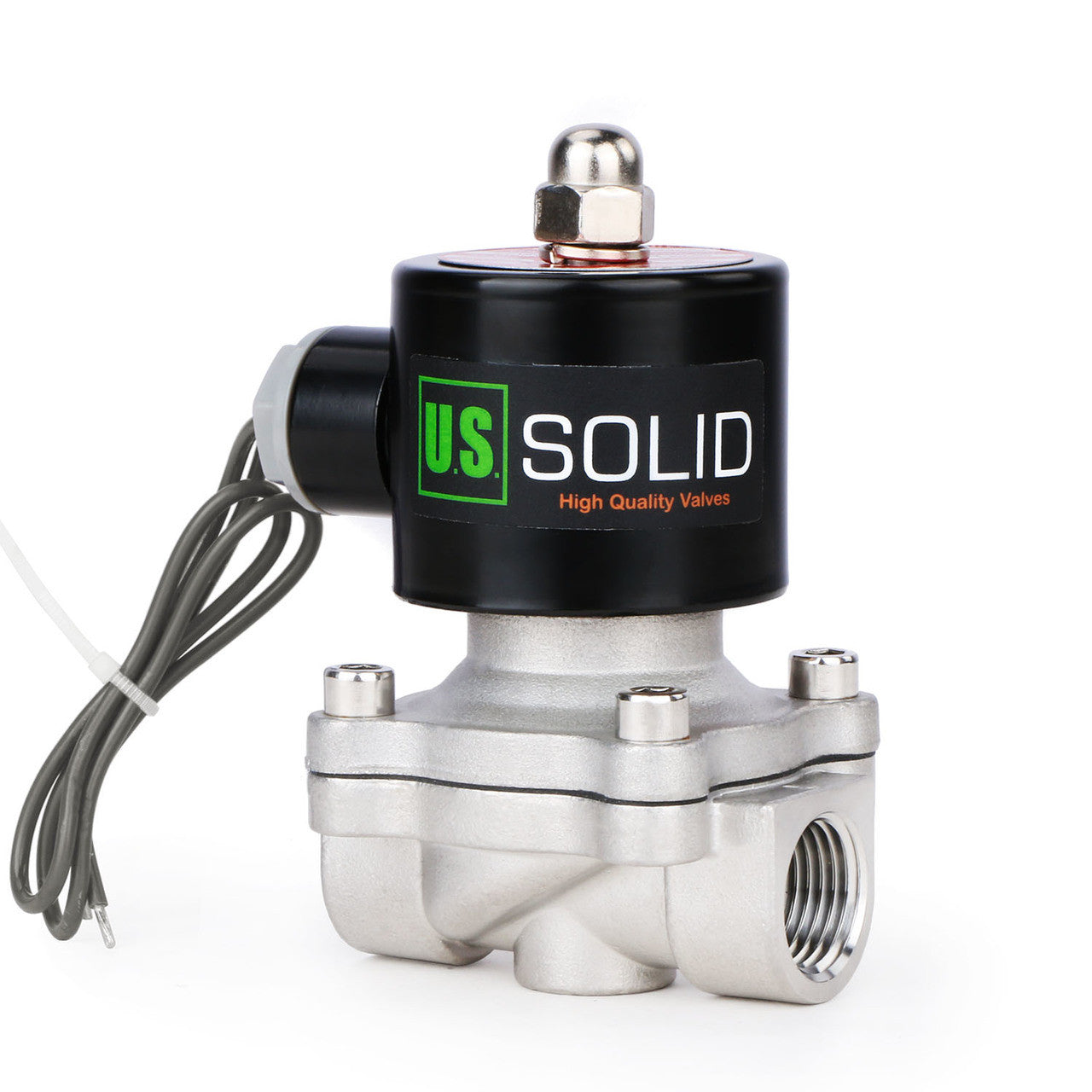

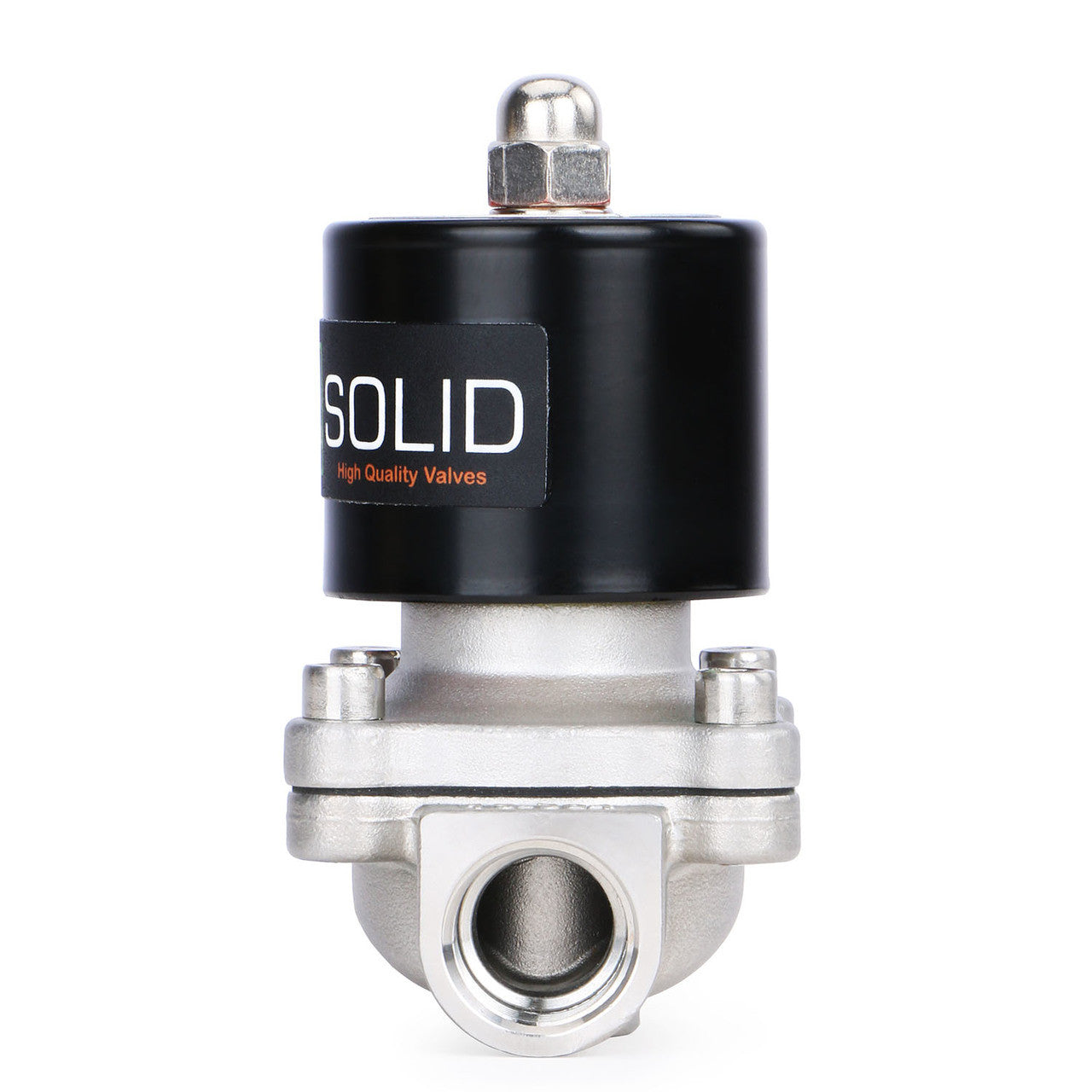

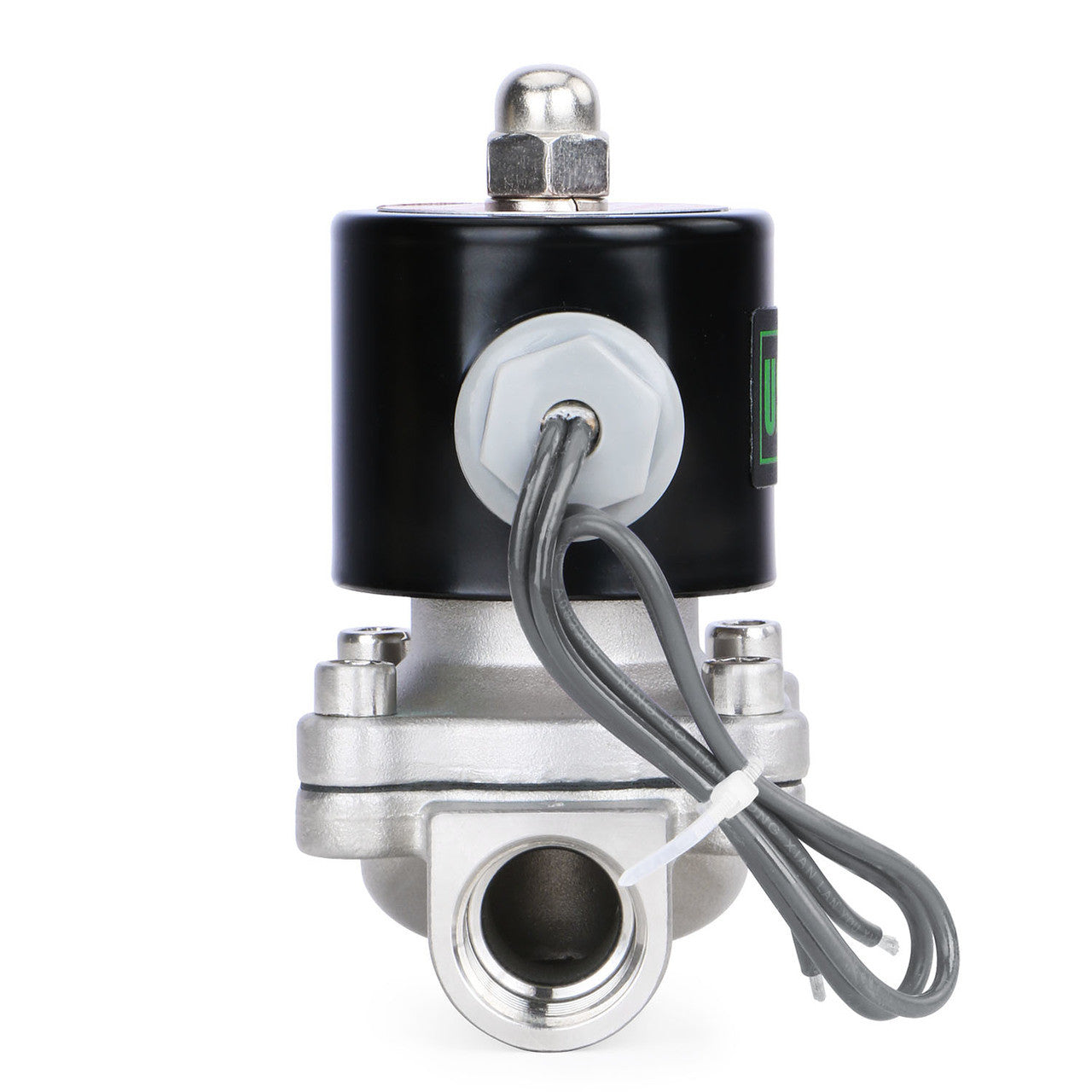

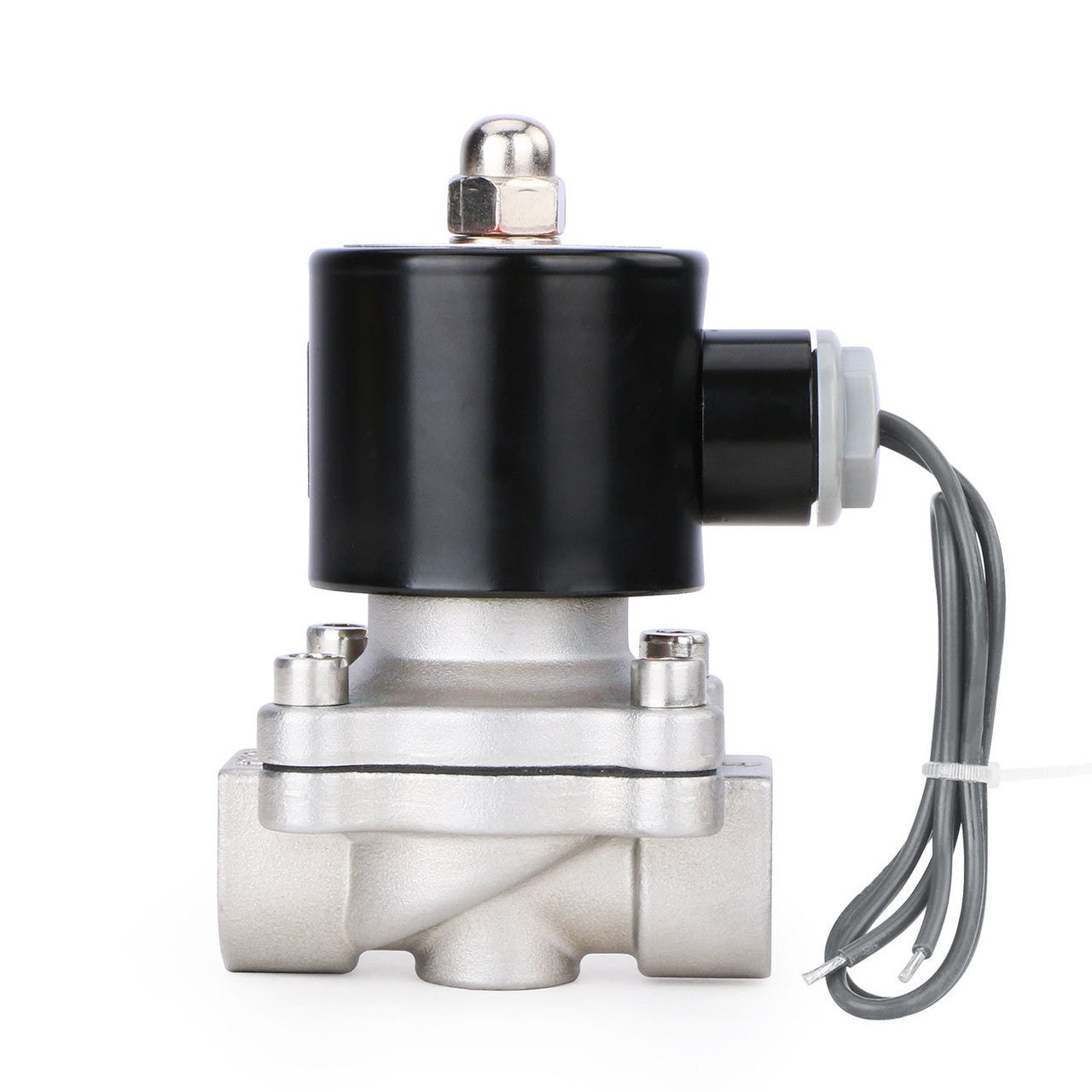

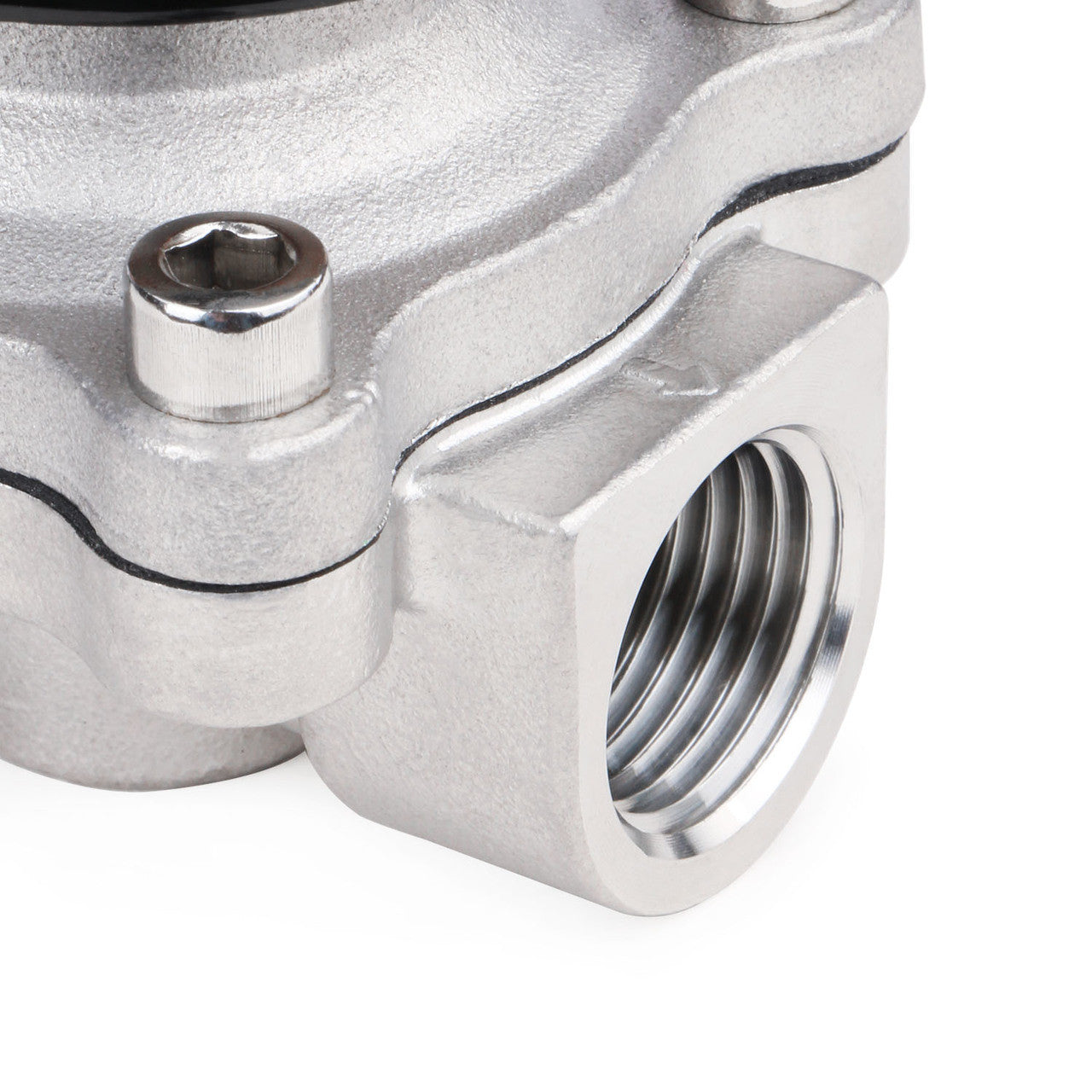

U. S. Solid normally closed (N/C) electric solenoid valve is constructed with a high-quality stainless steel body, two-way inlet and outlet ports with one-half inch (1/2") female threaded (G) connections, and heat and oil resistant Viton gasket. Suitable for use with hot or cold water, gas, air, very low viscosity fluids (< 20 cst), oils and hydrocarbons, e.g., gasoline, kerosene, or diesel fuel. Suitable for outdoor use. Not for use underwater. Customers chose this general purpose valve for: do-it-yourself projects, moderate temperature applications, harsh chemicals, flow control for irrigation systems, reverse osmosis systems, or home brewing.
Specification
Model: USS2-00072
Pipe Size: 1/2" (16 mm) flow aperture
Body Material: Stainless Steel
Gasket / Diaphragm / Seal: Viton
Operation Type: Semi-Direct Lift Valve
Operation Mode: Normally Closed
Electric Current: Direct
Voltage: 24 volts
Voltage range: + or – 10%
Power rating: 20 Watts
Operational pressure range: Air, Water, Gases: 0 to 101 PSI; Oil: 0 to 72 PSI
Flow capacity: 4.8 gallons per minute (GPM) of water at 60 oF with a pressure drop of 1 PSI
Flow value: 4.8 Cv
Temperature, Minimum: 14 degrees Fahrenheit (-10 degrees Celsius)
Temperature, Maximum: 248 degrees Fahrenheit (120 degrees Celsius)
