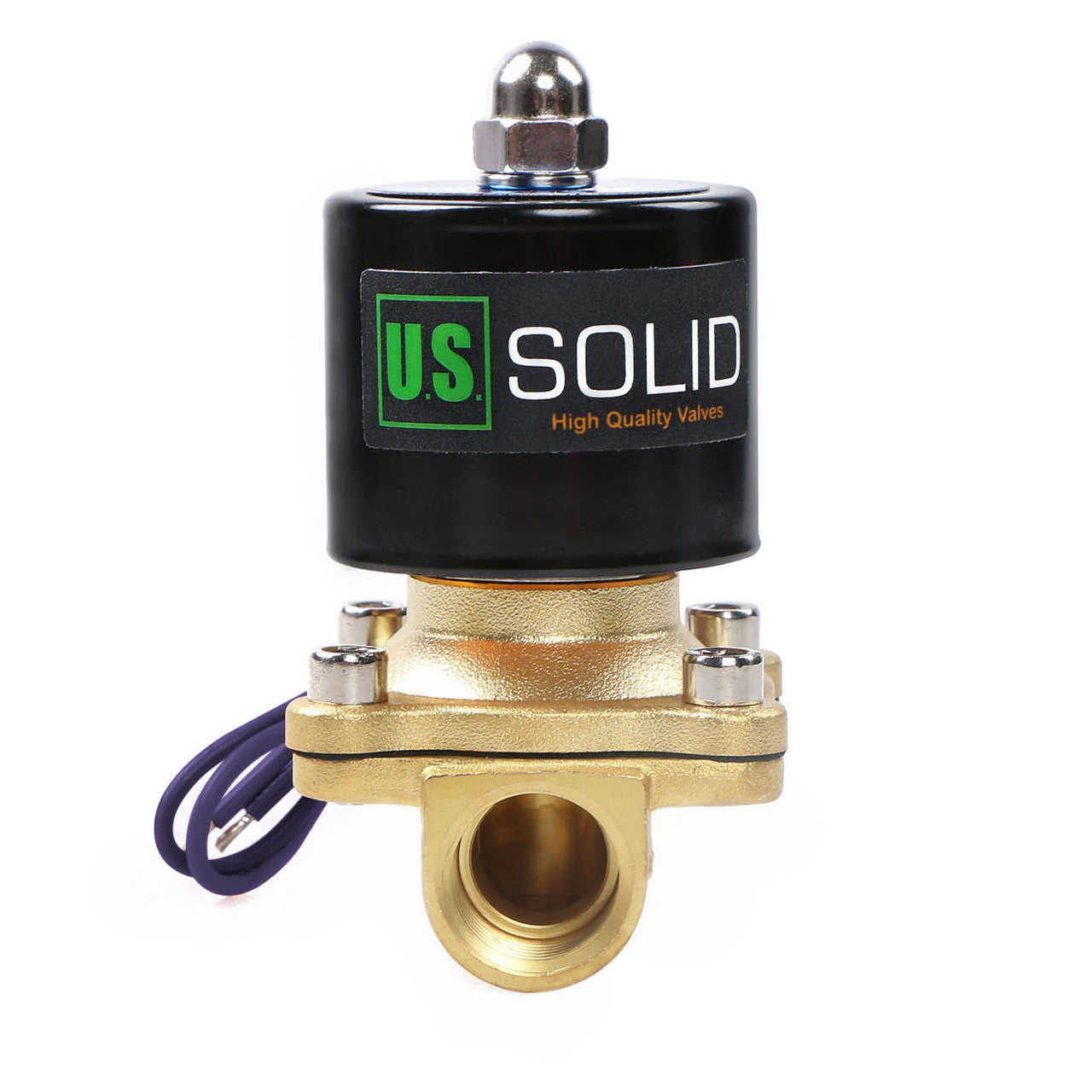

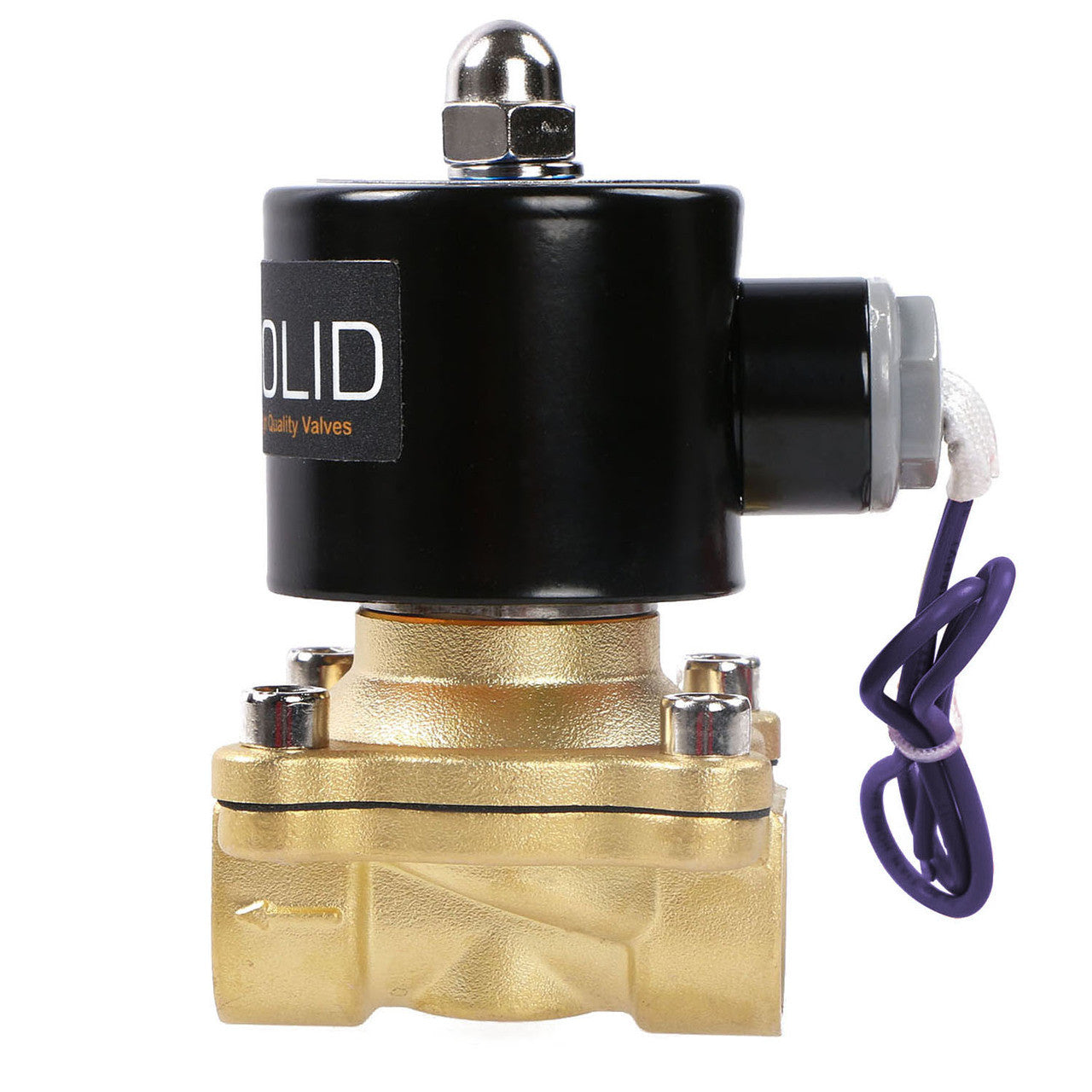

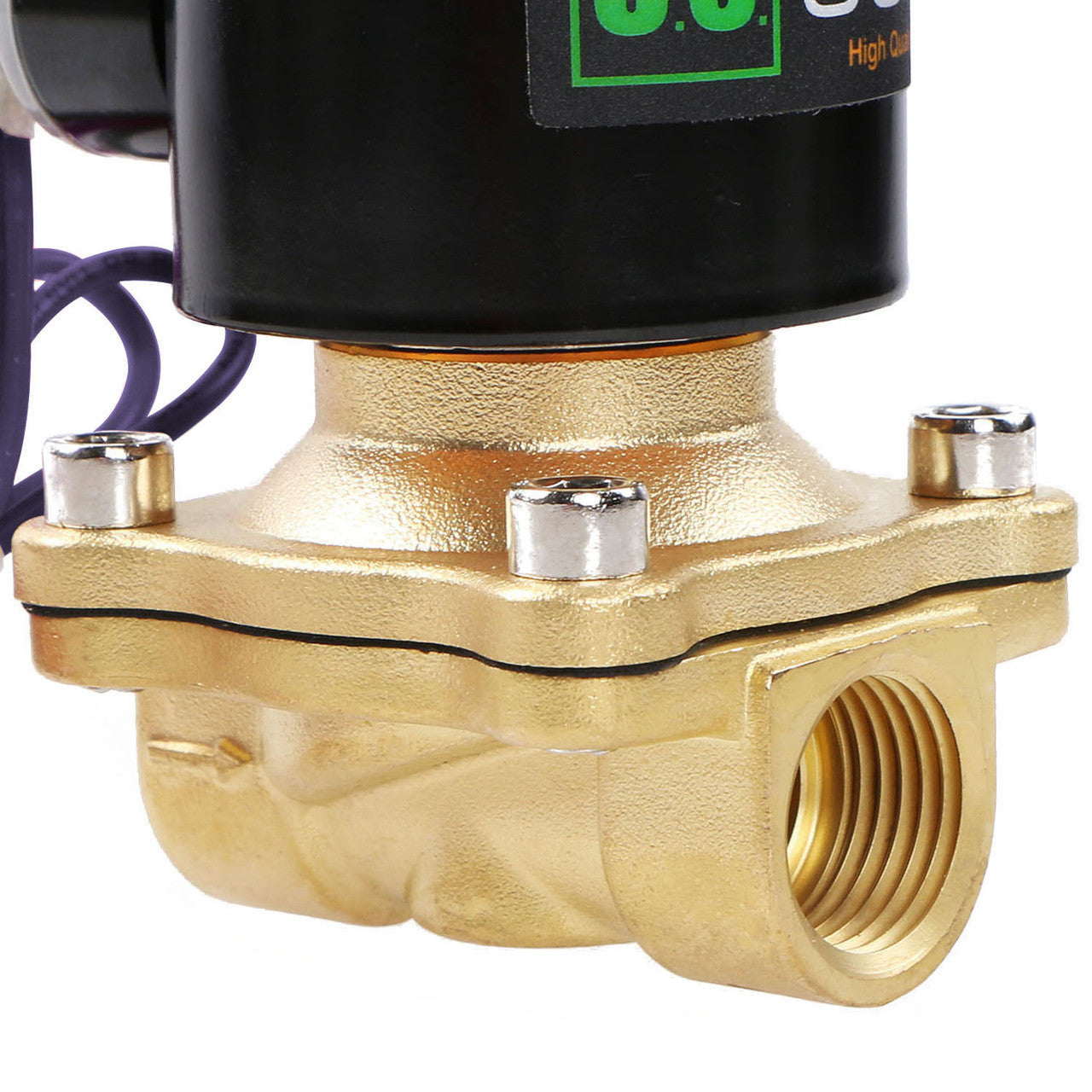

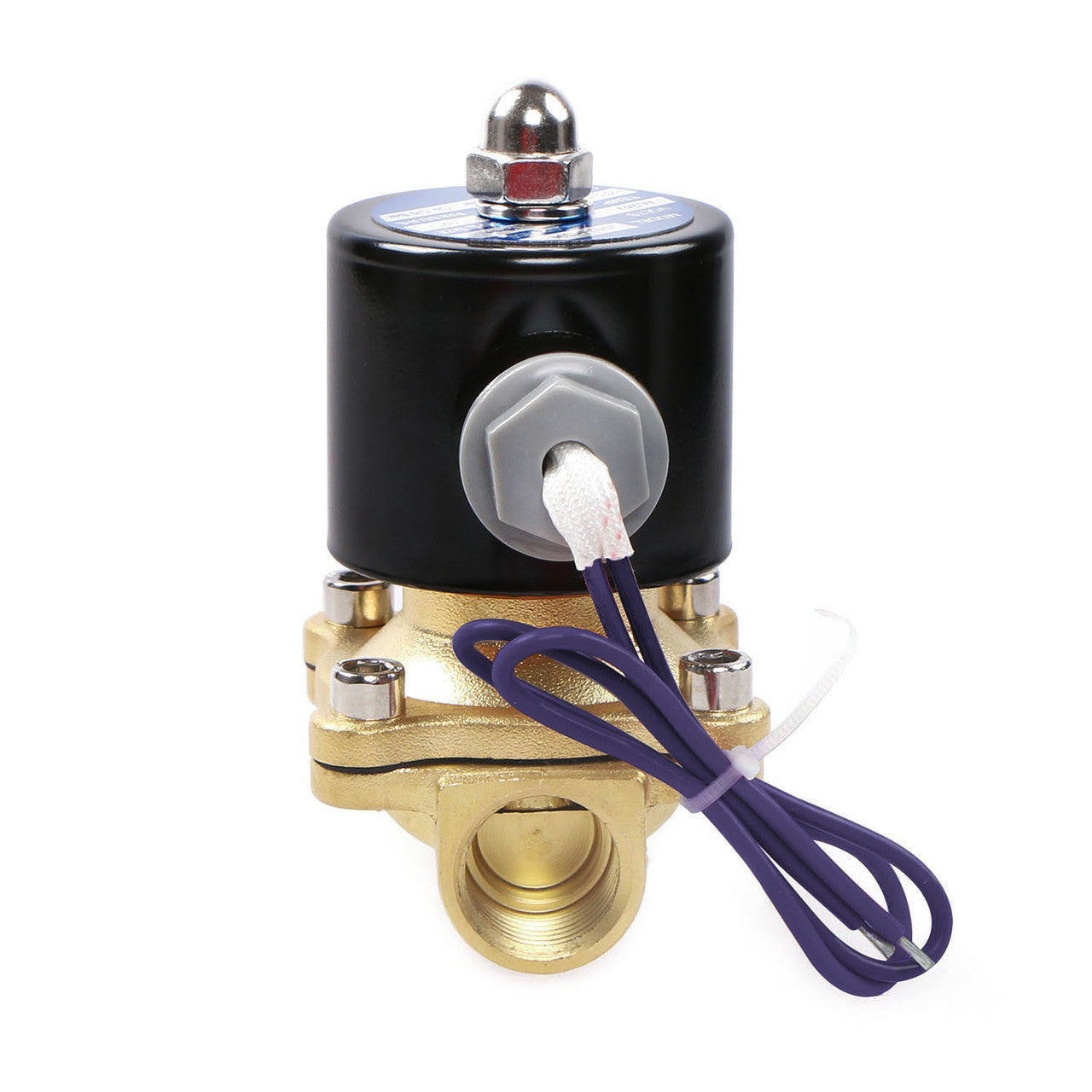

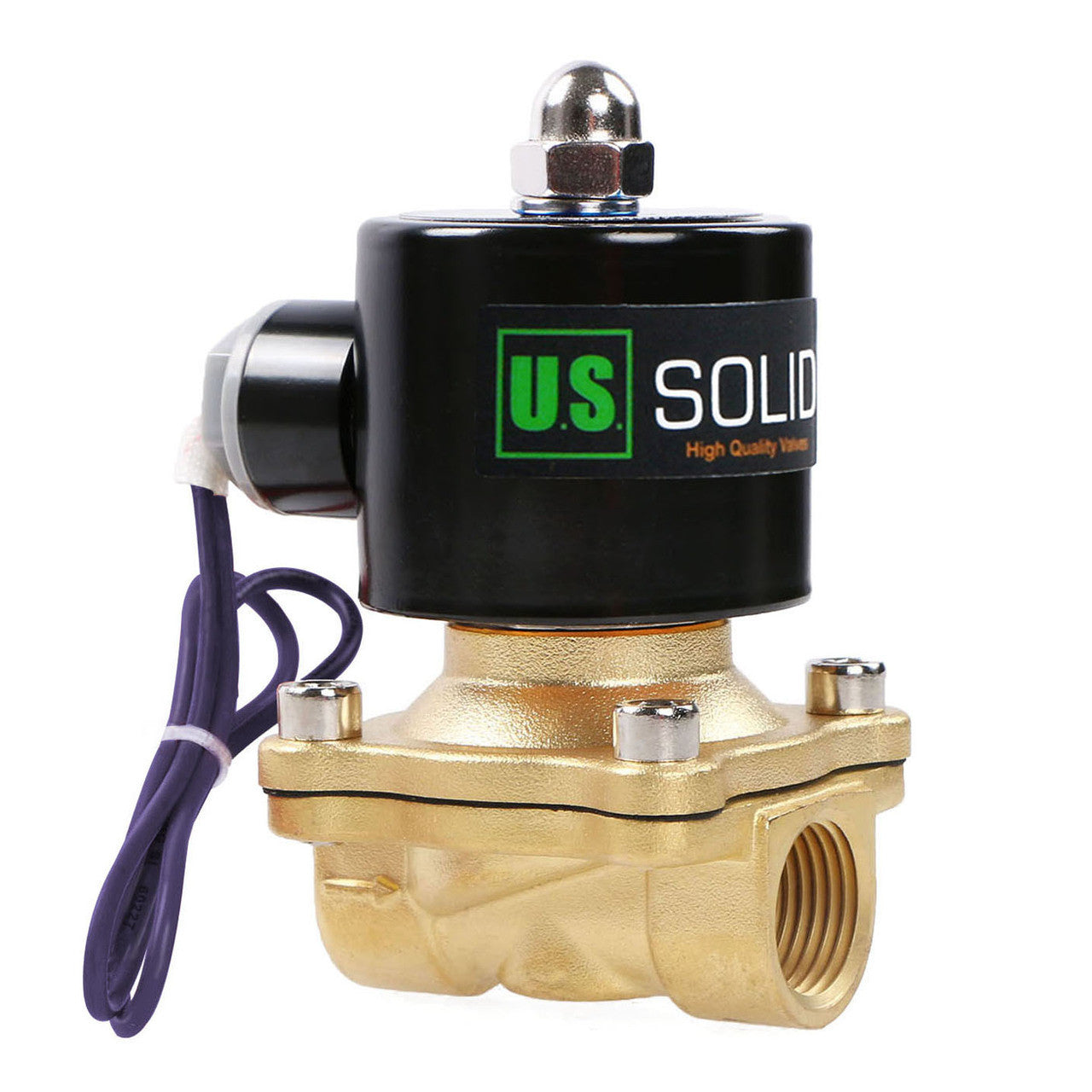

1/2" Brass Solenoid Valve 12V DC (Air, Water, Fuel) Normally Closed, VITON Gasket

Specifications
Brand: U.S. Solid
Model: USS2-00012

Physical Specifications:
Size: 1/2"
Flow Aperture: 16 mm
Body: Brass
Gasket / Diaphragm / Seal: VITON

Operation:
Type: Semi-Direct Lift Valve
Mode: Normally Closed

Electrical Specifications:
Current: Direct
Voltage: 12 volts DC
Voltage range: + or – 10%
Power rating: 20 Watts

Specifications for Pressure, Flow, Temperature:
Operational pressure range: Air, Water, Gases: 0 to 101 PSI (0-7 Bar); Oil: 0 to 72 PSI (0-5 Bar)
Flow capacity: 4.8 gallons per minute (GPM) of water at 60oF with a pressure drop of 1 PSI
Flow value: 4.8 Cv
Minimum operational temperature: 14 degrees Fahrenheit (-10 degrees Celsius)
Maximum operational temperature: 248 degrees Fahrenheit (120 degrees Celsius)

Suitable Medium
Diesel fuel, kerosene, air, water, oil etc.
