U.S. Solid

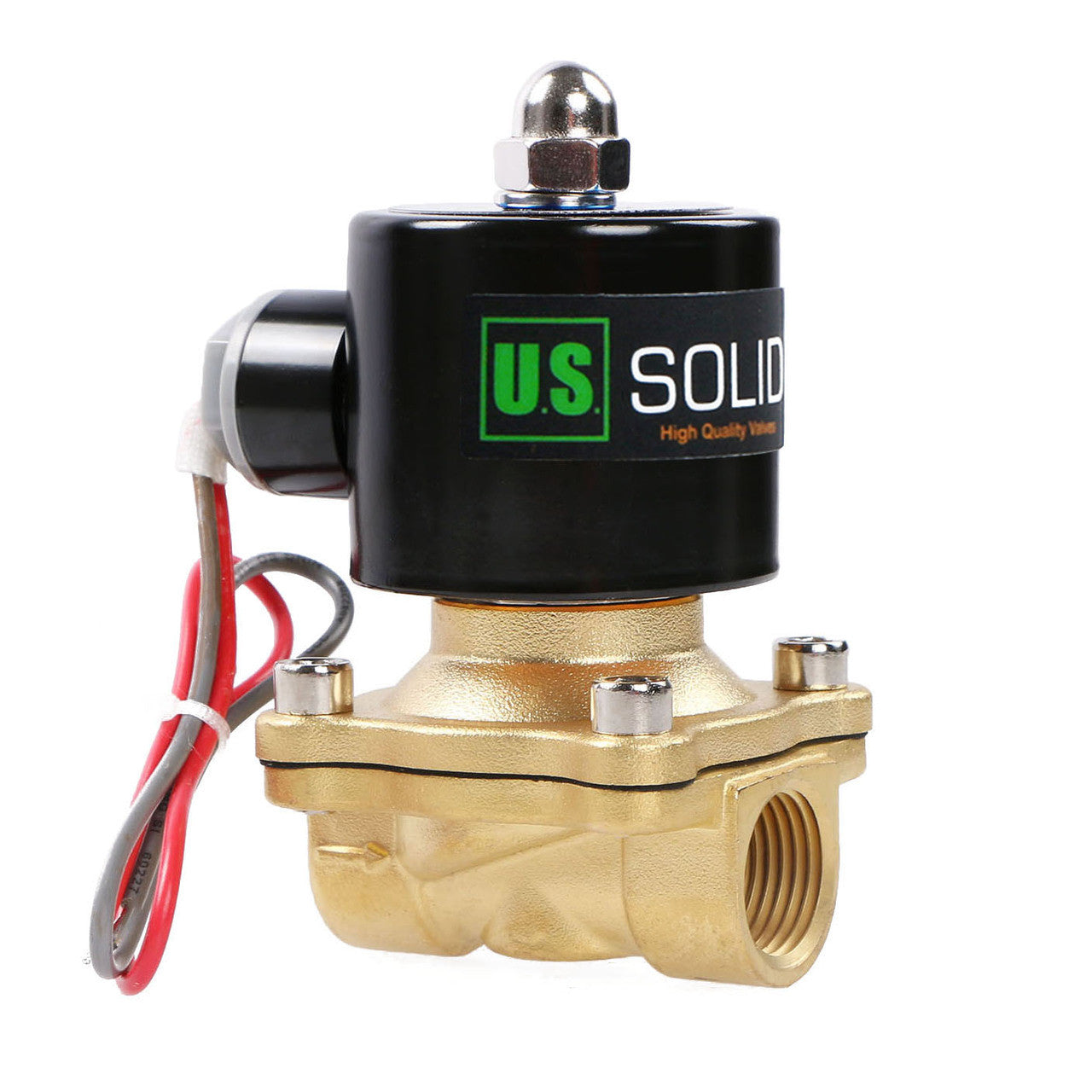

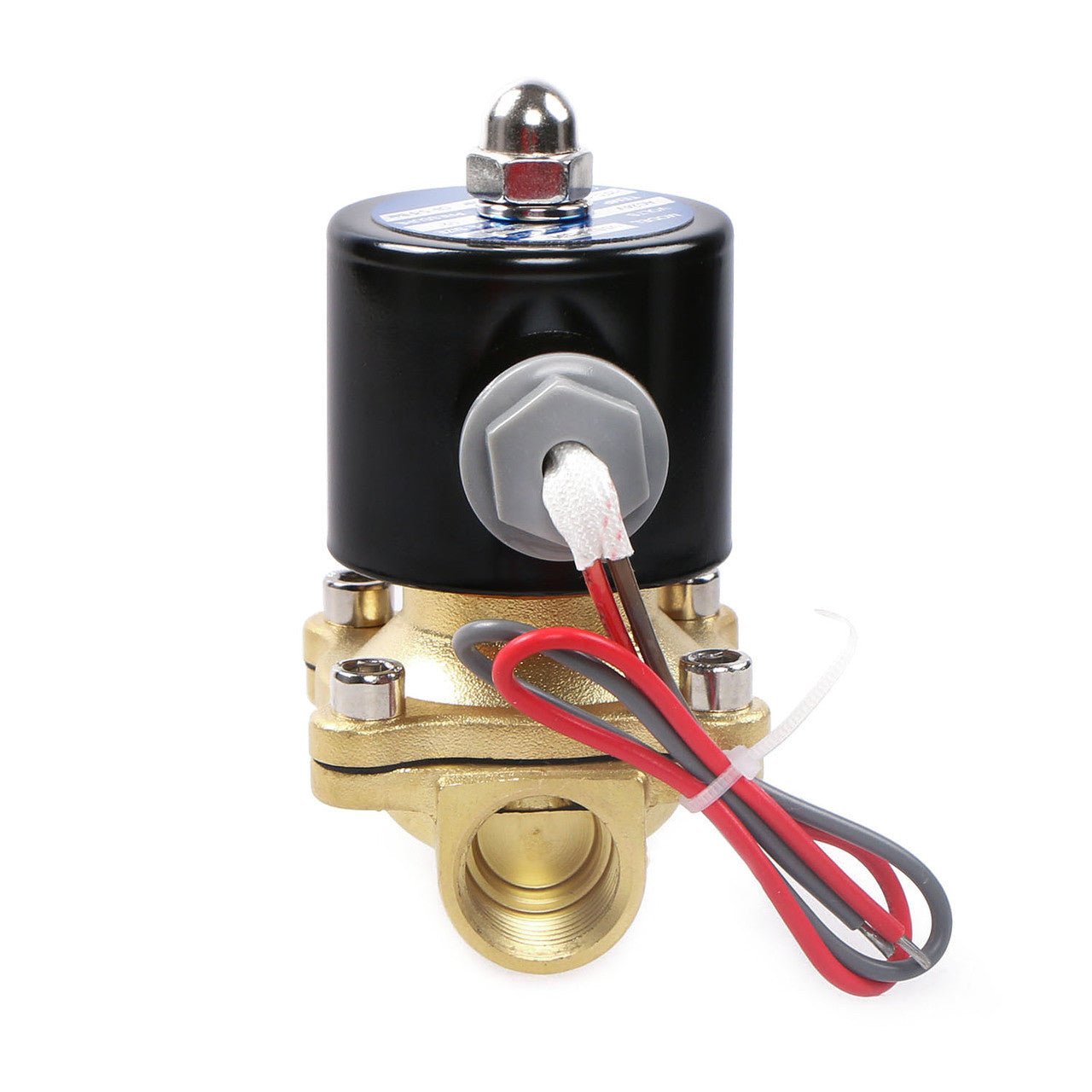

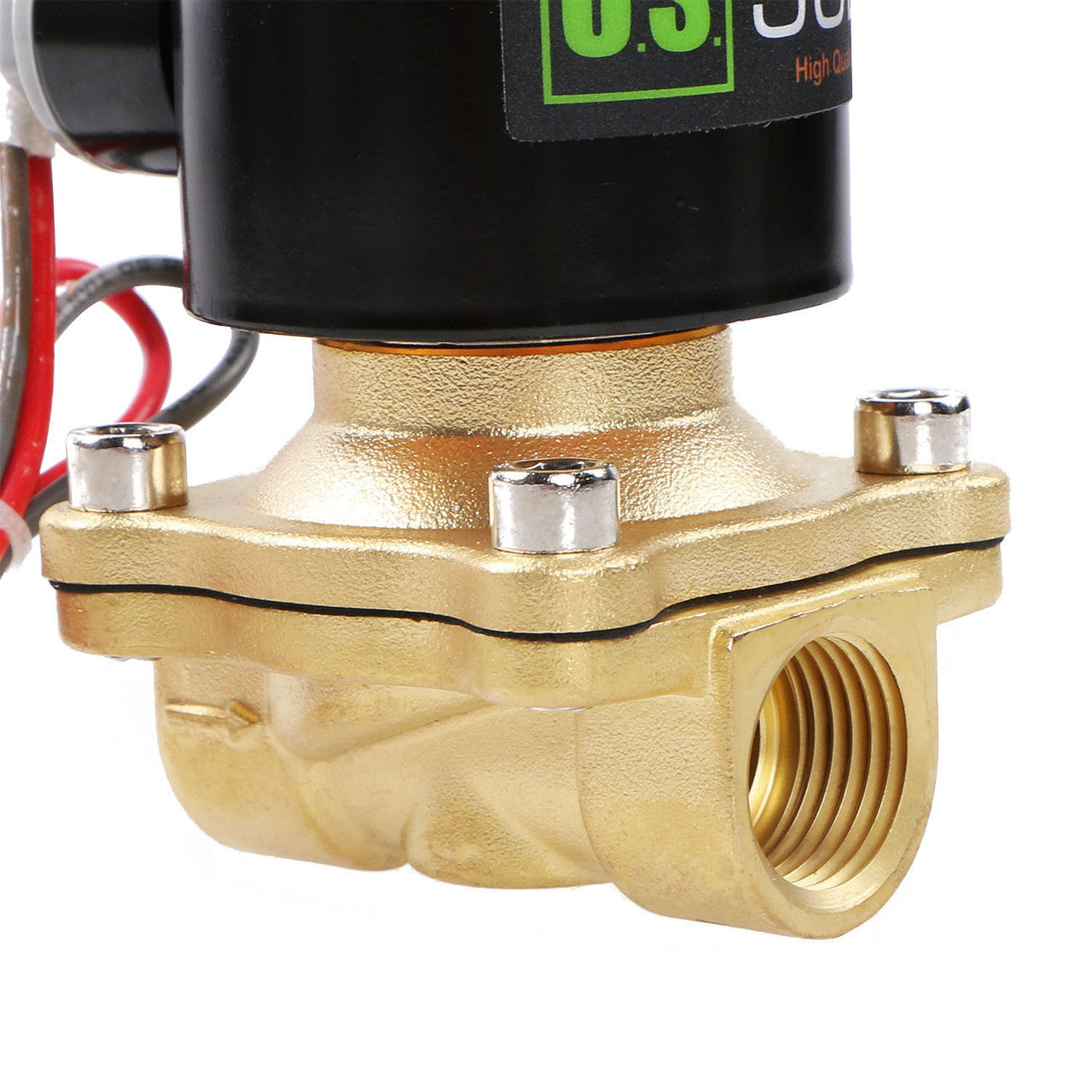

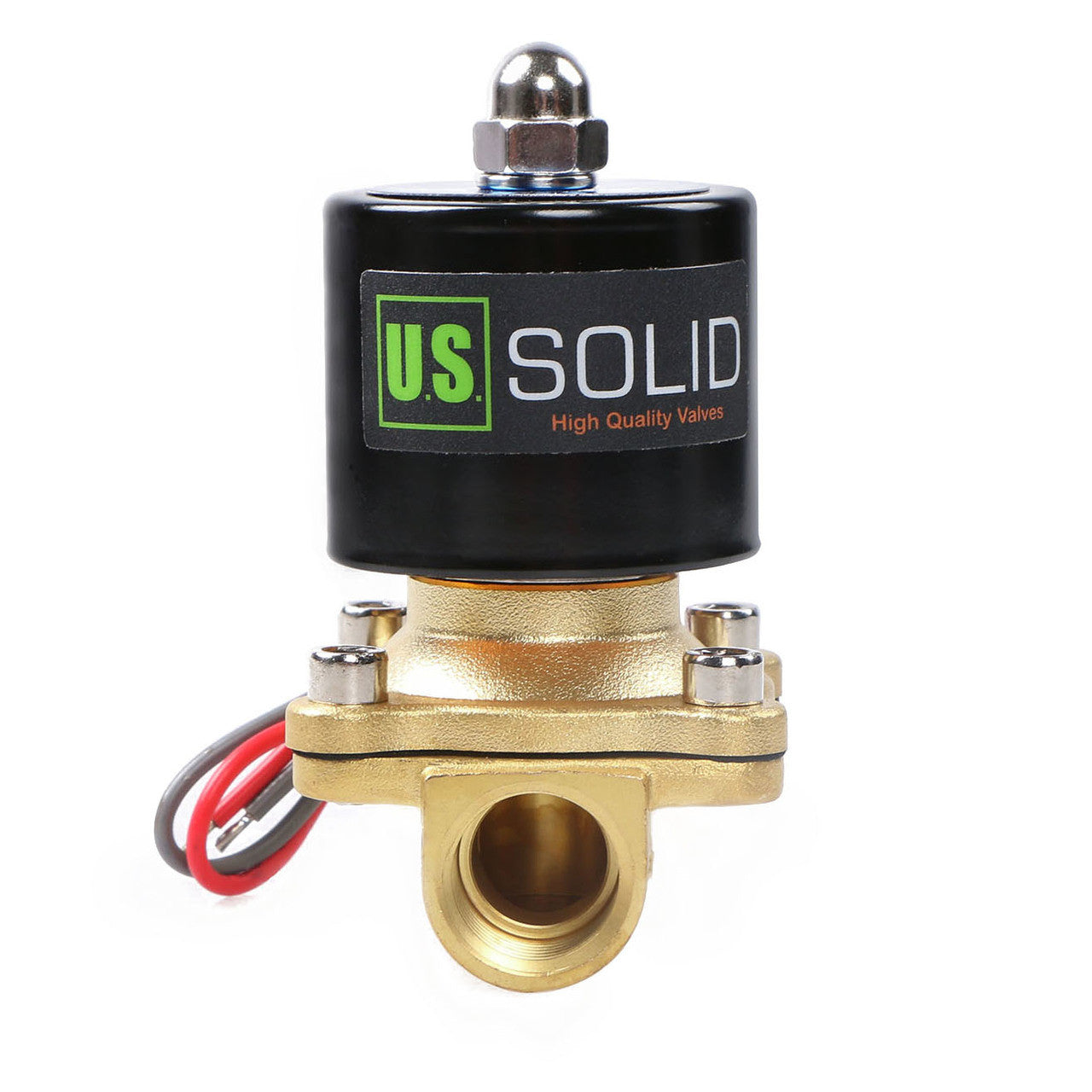

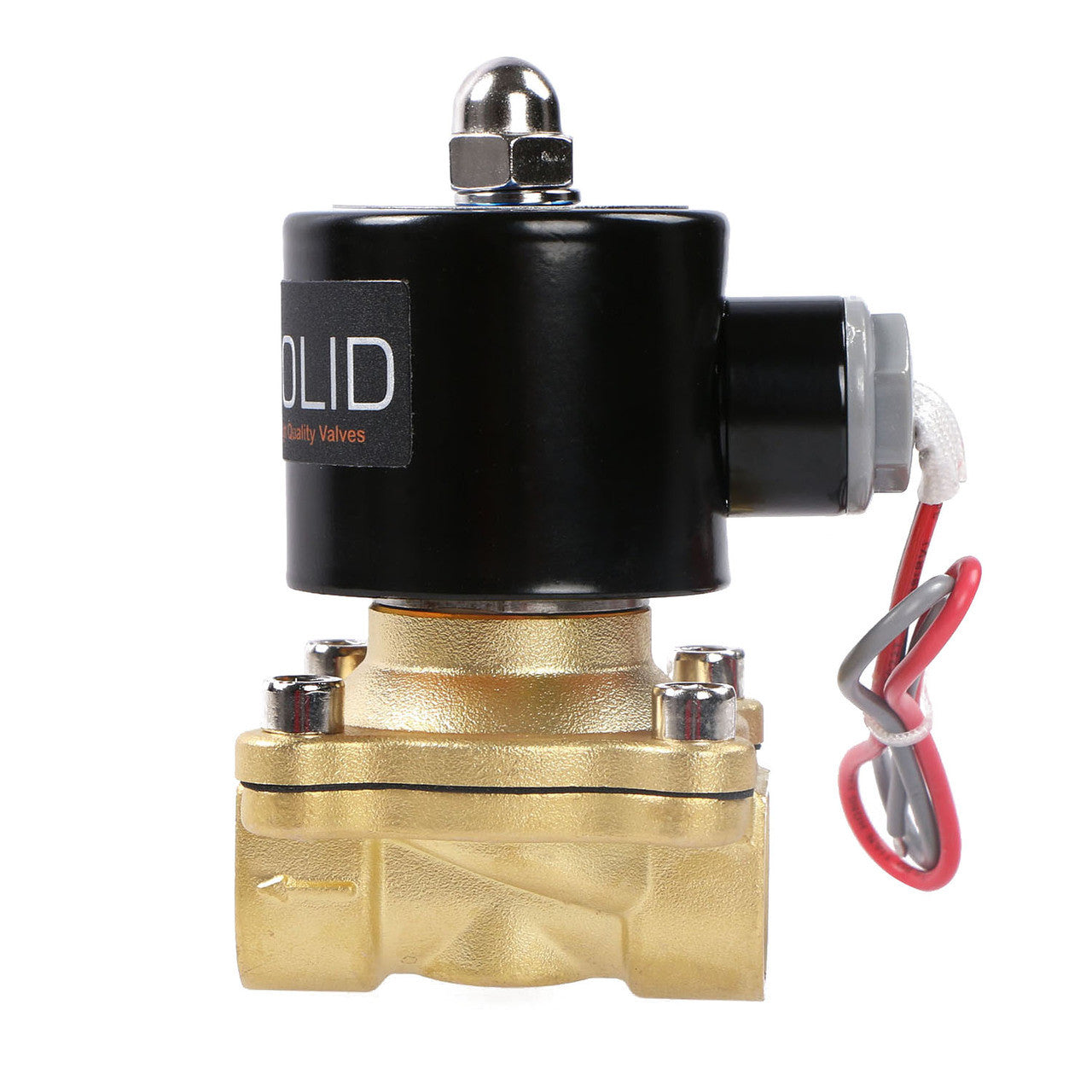

1/2" Brass Electric Solenoid Valve 24V AC VITON SEAL Normally Closed (Air, Gas, Fuel...)

1/2" Brass Electric Solenoid Valve 24V AC VITON SEAL Normally Closed (Air, Gas, Fuel...)

Regular price £20.99 GBP
Regular price Sale price £20.99 GBP
Sale Sold out
Shipping calculated at checkout.
View full details

Specifications

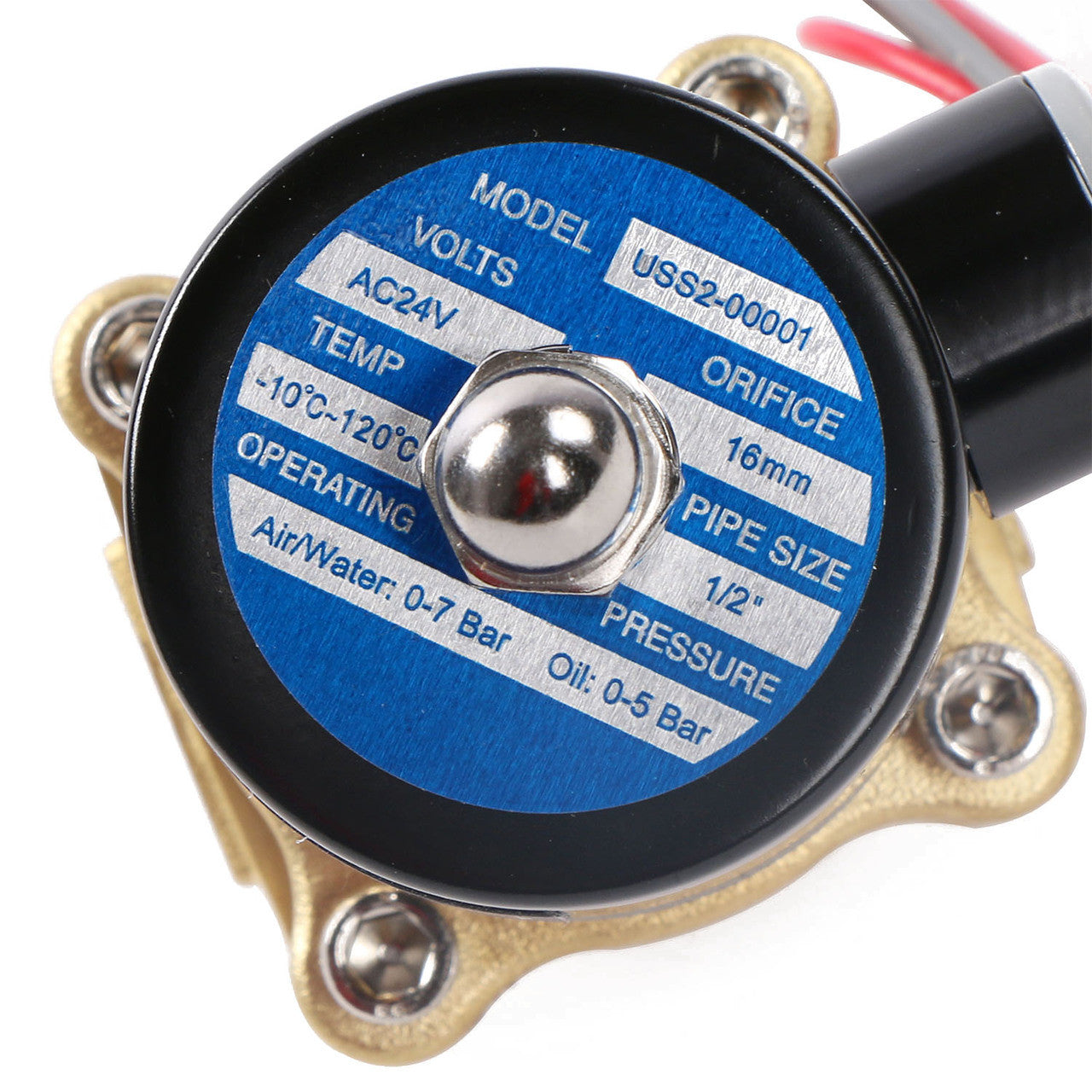

Model: USS2-00001
Pipe Size: 1/2"
Flow Aperture: 16 mm
Body Material: Brass
Gasket / Diaphragm / Seal: Viton
Operation Type: Semi-Direct Lift Valve
Operation Mode: Normally Closed
Electric Current: Alternating
Voltage: 24 volts
Voltage range: + or – 10%
Power rating: 21 VA
Operational pressure range: Air, Water, Gases: 0 to 101 PSI; Oil: 0 to 72 PSI
Flow capacity: 4.8 gallons per minute (GPM) of water at 60 oF with a pressure drop of 1 PSI
Flow value: 4.8 Cv
Temperature Minimum: 14 degrees Fahrenheit (-10 degrees Celsius)
Temperature Maximum: 248 degrees Fahrenheit (120 degrees Celsius)
