U.S. Solid

1/2" Brass Electric Solenoid Valve 220V AC G Thread Normally Closed VITON

1/2" Brass Electric Solenoid Valve 220V AC G Thread Normally Closed VITON

Regular price £23.49 GBP
Regular price Sale price £23.49 GBP
Sale Sold out
Shipping calculated at checkout.

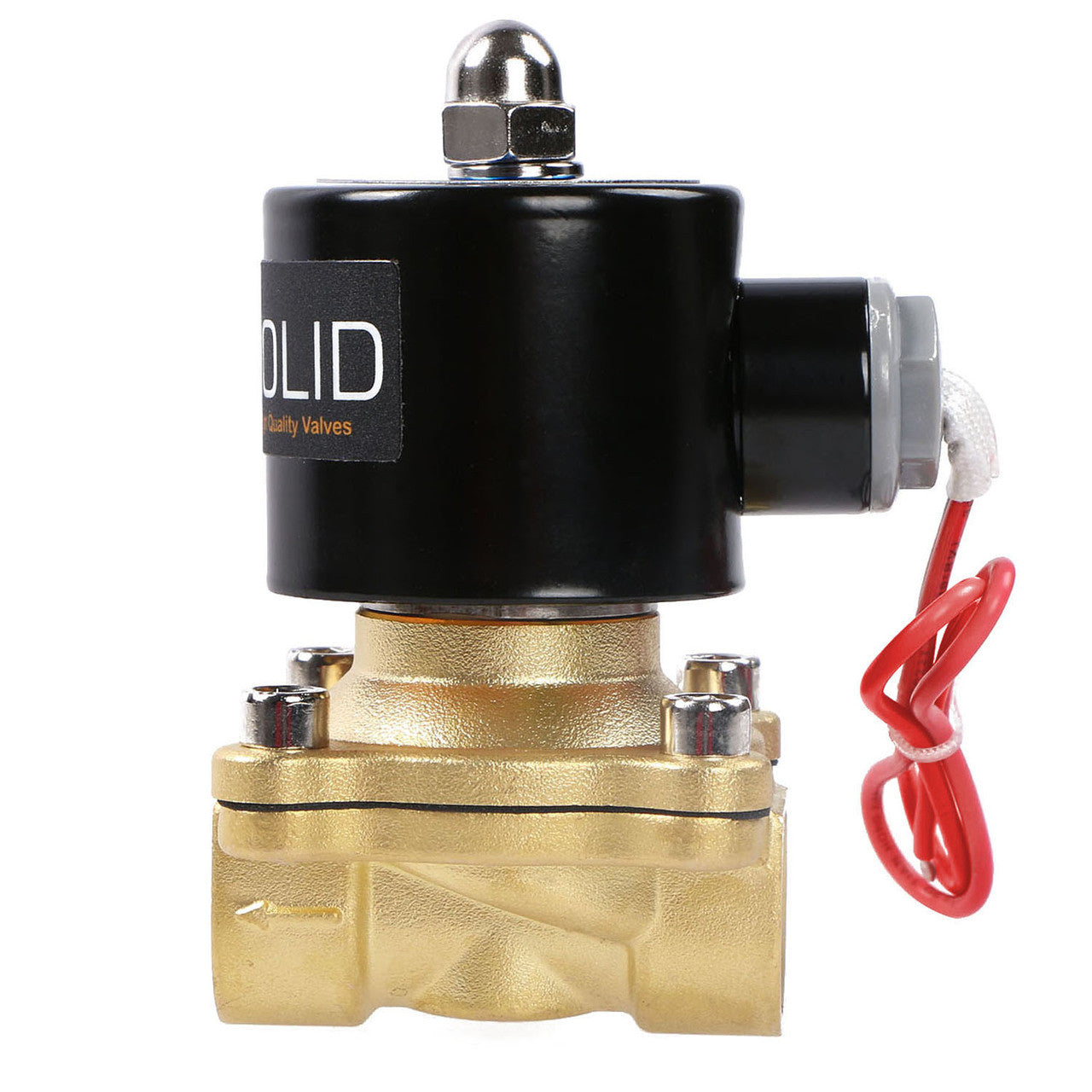

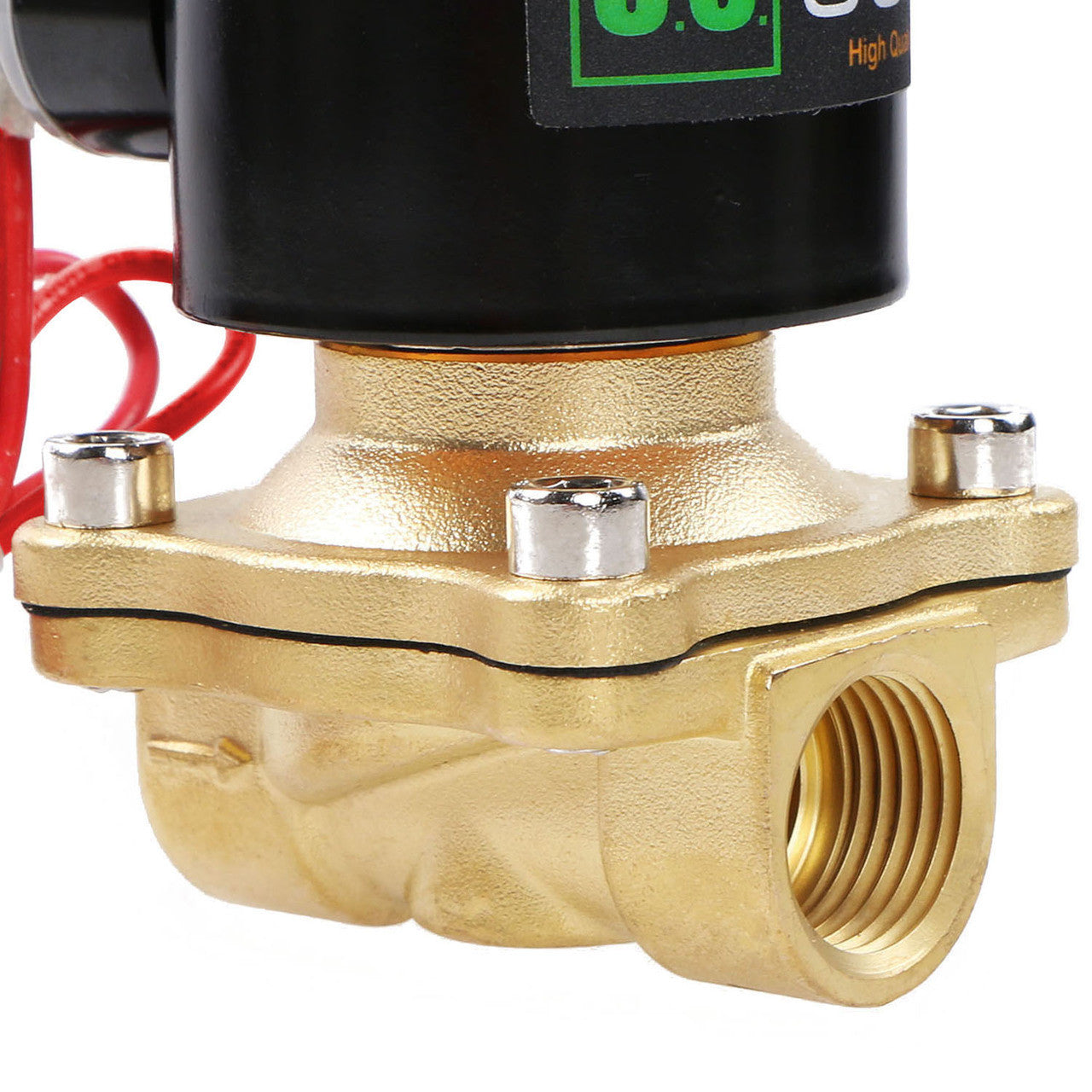

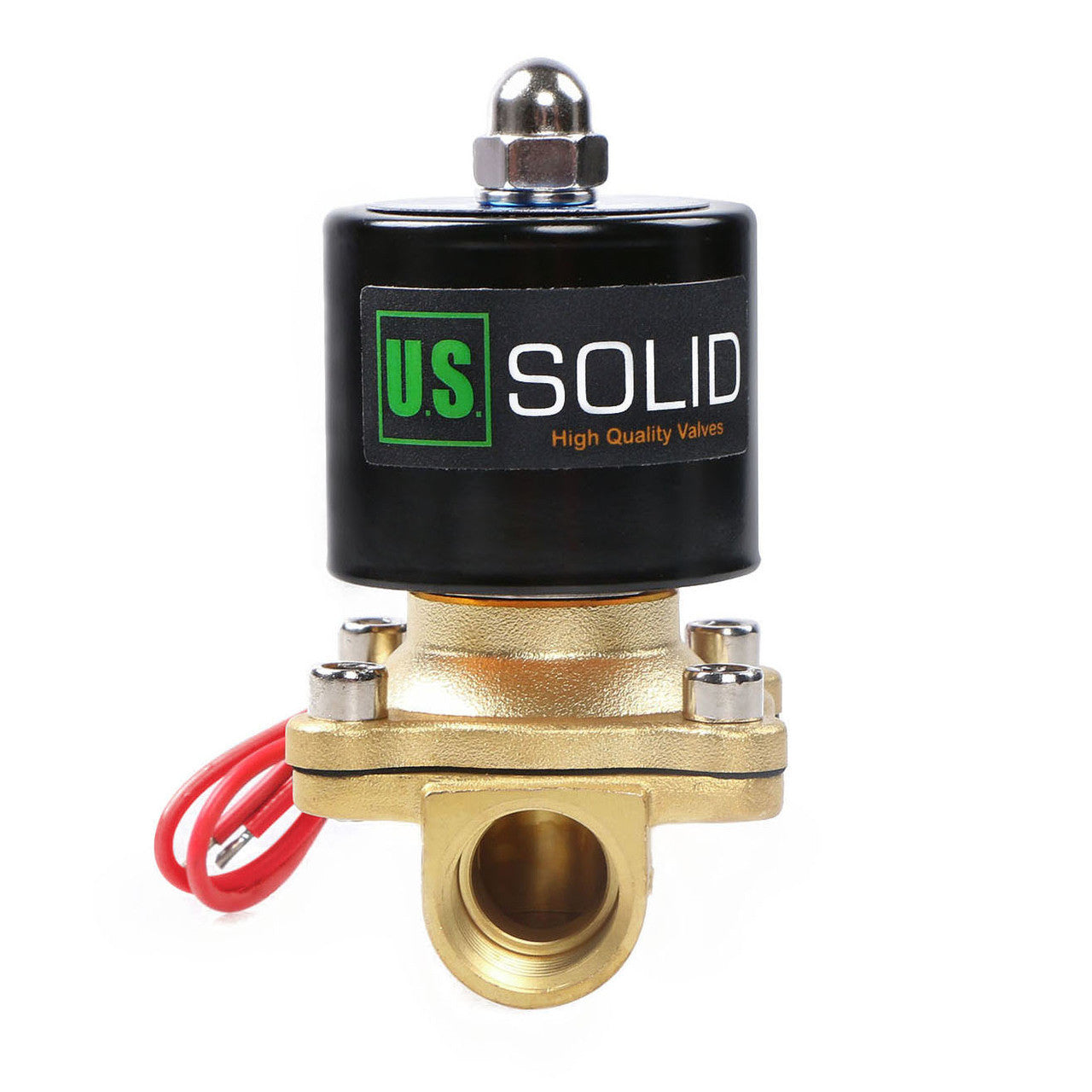

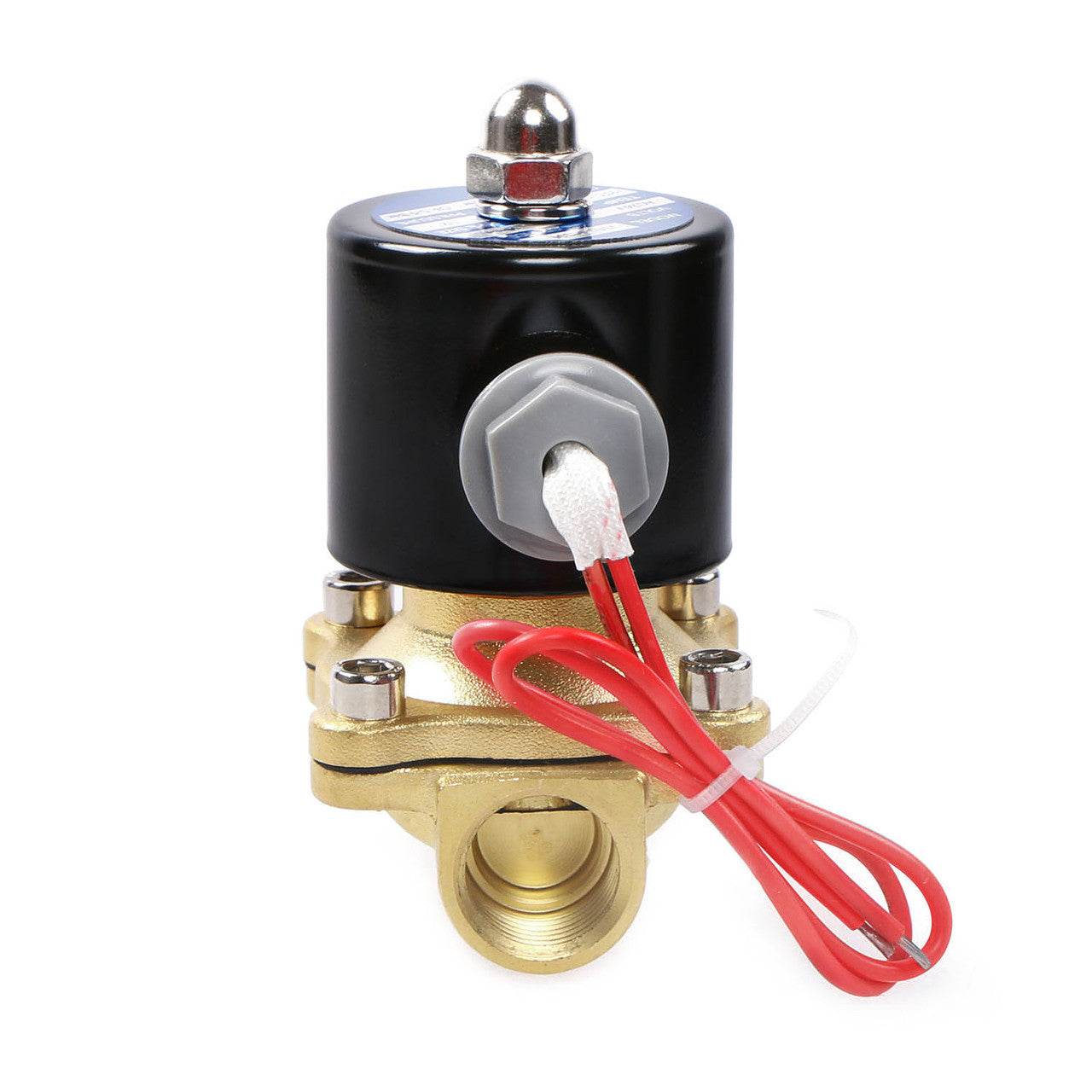

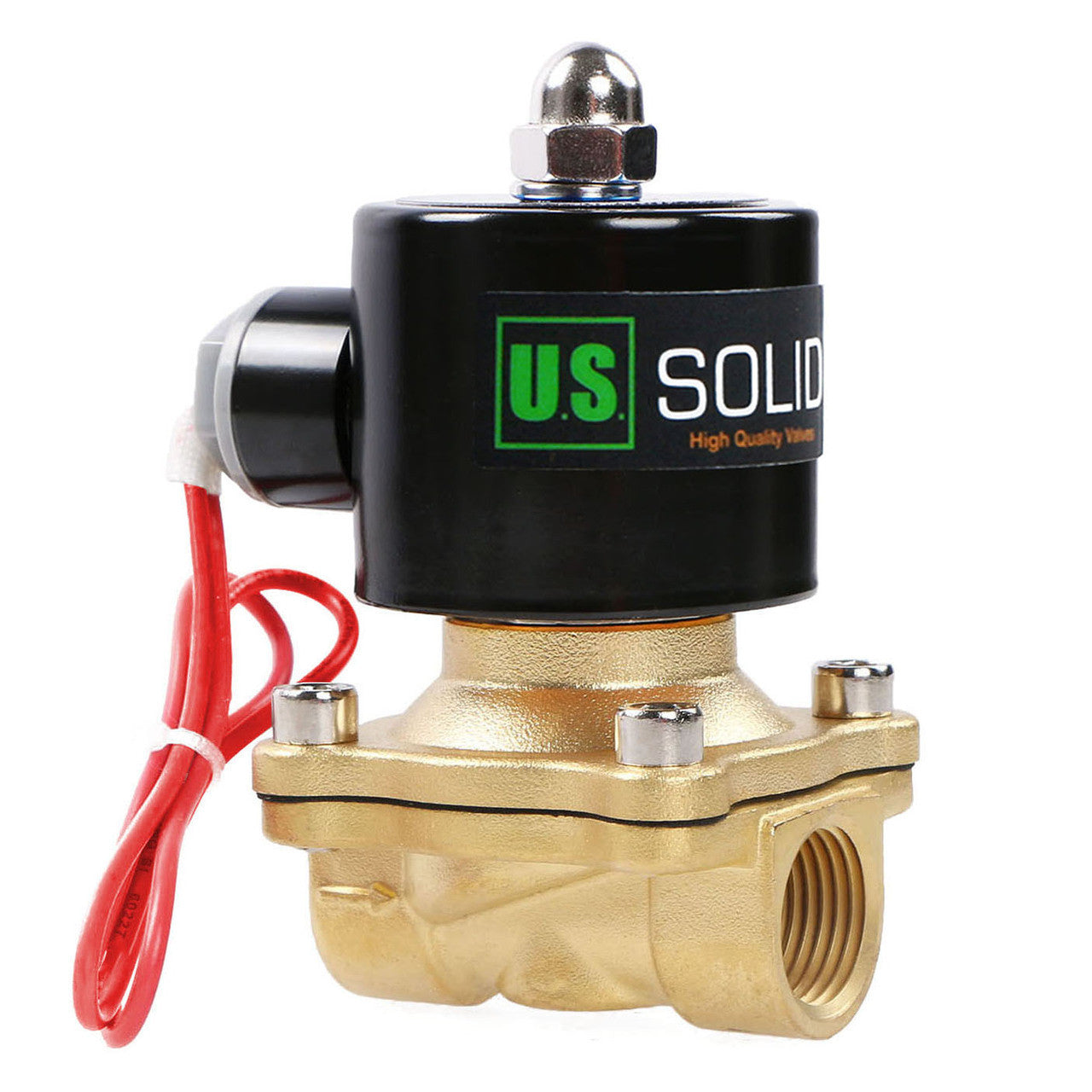

U.S. Solid normally closed (N/C) electric solenoid valve is constructed with a durable brass body, 1/2" female threaded (G) connections, and strong VITON gasket.

Suitable for outdoor use; not for use underwater. Suitable for use with hot or cold water, natural gas, air, very low viscosity fluids (< 20 cst) and gasoline or other petroleum based liquids. Customers chose this general purpose valve for supplemental gas tanks, sprinkler systems, and more. This solenoid valve is not to be used continuously for more than 8 hours. It can result in the valve overheating.

Brand: U.S. Solid
Model: USS2-00017
Size: 1/2"
Flow Aperture: 16 mm
Body Material: Brass
Gasket / Diaphragm / Seal: VITON
Rated voltage: AC 220 V, ± 10%
Current: 0.1 A
Power rating: 22 VA
Operation Type: Semi-direct Lift Valve
Operation Mode: Normally Closed
Operational pressure range: 0 to 101 PSI / 0-0.7 Mpa (for Air, Water); 0 to 72 PSI / 0-0.5 Mpa (for Oil)
Flow capacity: 4.8 gallons per minute (GPM) of water at 60oF with a pressure drop of 1 PSI
Flow value: 4.8 Cv
Minimum operational temperature: 14 degrees Fahrenheit (-10 degrees Celsius)
Maximum operational temperature: 248 degrees Fahrenheit (120 degrees Celsius)
Suitable Medium: Air, water, oil, natural gas, diesel fuel, kerosene etc.
